prime hot dipped galvanized steel coil China factory
- 300000 Ton / Tons per Month
- Qingdao
- T/T Credit Card
Product Details
Brand Name: | Xinhuacai | Place of Origin: | China | Model Number: | Galvanized steel coil |
Length: | Custom's Request | Type: | Steel Coil | Width: | 600mm-1250mm |
Technique: | Hot Rolled | Standard: | ASTM, GB, JIS | Grade: | SPCC,SPCD,SPCE,DC01 |
Special Use: | High-strength Steel Plate |
Product Description

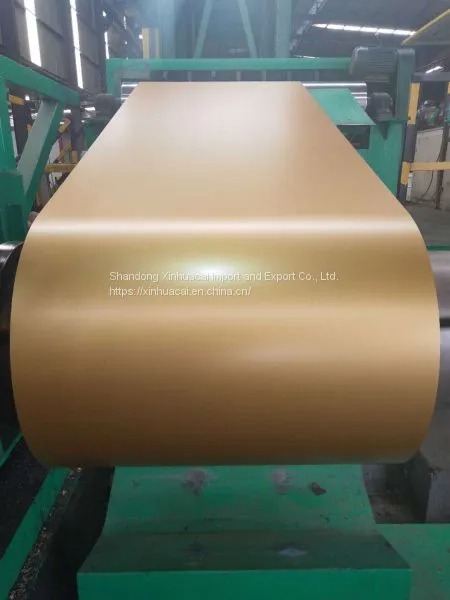

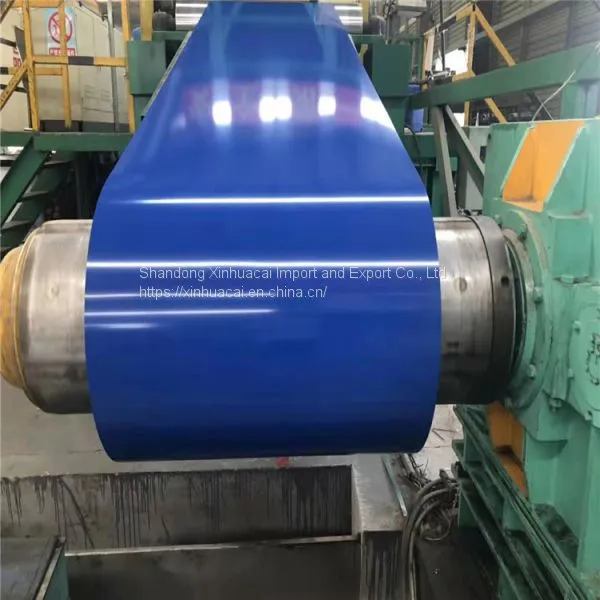

Item | Prepainted GI / PPGI / PPGL color coated galvanized steel roof sheet |
Product | Prepainted steel coil |
Grade | SGCC,DX51D,SGCH CGCD1-CGCD3 CGC340-CGC570 |
Standard | GB/T-12754 JIS G 3312 EN 10169 ASTM A755 |
Thickness | 0.17-1.0mm |
Width | 600-1500mm |
Zinc coating | 45-275 G/M2 |
Thickness of top coating | 12-25 microns |
Thickness of back coating | 5-8 microns |
Coil weight | 3-6Tons |
Coil internal diameter | 508mm/610mm |
Surface treatment | Bright and clean,smooth and flat |
Colors | As RAL code |
Lifespan | 10-15 years, very strong corrosion resistance it wouldn't |
Tolerance | Thickness:+/-0.02mm |
Width:+/-2mm | |
Zinc coating:+/-5% | |
Tensile strength | >300mpa |
Yield strength | 370-380mpa |
Steel Grade | Chemical composition % | Mechanic Property | CB of CO Ating | CO Tinge | ||||||
C | Si | Mn | S | P | T.S | Y.S | E.L | |||
x103 | x103 | x102 | x103 | x103 | Mpa | Mpa | % | d=0 180° | G/ M² | |
JIS G3302 SGCC | 12 | 30 | 41 | 31 | 21 | 480 | 300 | 13 | OK | Z60-150 |
JIS G3302 SGCH | 12 | 10 | 21 | 18 | 8 | 680 | 650 | OK | Z60-150 | |
ASTM A653 CSB | 20 | 30 | 60 | 35 | 30 | 386 | 206-380 | 20 | OK | Z80-275 |
DX51D+Z | 29 | 21 | 18 | 1.8 | 11 | 355 | 245 | 38 | OK | Z80-275 |
G550 | 20 | 6 | 73 | 5 | 17 | 715 | 654 | 8 | OK | Z80-275 |
Q1: How can I buy products in my country?
A1: Please send us an inquiry or e-mail, we will reply to you and send you a trade assurance order if you need.
Q2: How long does it take to get the product if I place an order
A2: A: For stock products, will make shipments in 5- 7 days after receiving deposit or receiving L/C; for products need new production for common materials, usually make shipments in 15-20 days; for products need new production for special and rare materials, usually need 30-40 days to make shipment.
Q3: How to make payment?
A3: First send us an inquiry, and we will reply with our quotation. If our price suits you, we will prepare proforma invoice with our banking detail.
Q4: Can you do customization & reproduction if I provide a photo?
A4: Yes
