Tunnel Sterilizing Oven for Liquid Bottle Filling Line

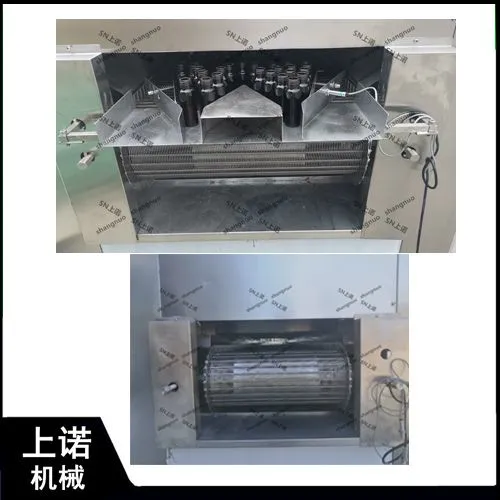

Tunnel Sterilizing Oven for Liquid Bottle Filling Line photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
SN-HX4
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Model Number SN-HX4
After-sales Service Provided Engineers available to service machinery overseas
Weight 1300kgs
Dimension(L*W*H) L4000×W1100×H1520mm
Voltage 3 Ph. 380V,50/60Hz
Power 1.1 KW
Application Beverage, Chemical, Food, Medical
Condition New
Automatic Grade Semi-Automatic
Driven Type Electric
Packaging Material Glass
Packaging Type Bottles

Machine name:SN-HX2/SN-HX4/ SN-HX6 Tunnel Sterilizing Oven


Application:This machine is widely used for ampules bottle, refined oil bottle, penicillin bottle, soy vinegar wine bottle, fruit juice beverage bottle, wide-mouth bottle, oral liquid bottle and other glass bottle drying and sterilization. Used in medical, chemical, electronic, food and other industries for drying and sterilization.

Technical parameter:

Model


SN-HX2(No sterilization function

SN-HX4(with sterilization)


SN-HX6(with sterilization

Length of working chamber


2m

4m


6m

Transmission speed


50-150 mm/s

60-200 mm/s


100-300 mm/s

Adjustable range of temperature


≤250℃

≤350℃


≤350℃

Power supply


3 Ph. 380V,50/60Hz

3 Ph. 380V,50/60Hz


3 Ph. 380V,50/60Hz

Heating power


18 KW

25 KW


31 KW

Motor power


1.1 KW

1.1 KW


1.1 KW

Net weight


1000kg

1300kg


1500kg

Overall dimension


L2000×W1100×H1520mm

L4000×W1100×H1520mm


L6000×W1200×H2200mm


HOW TO ORDER?




1.Send us your products picture,material,size and your requirements.

2.Confirm the machine model and sign the PI.

3.You arrange the 30% deposit,send your product samples to us test the machine.

4.You can arrange people to our factory to inspect the machine after we finish the produce,then arrange pay for balance money.

5.We send out the machine to you.If you need technicist to your site to debug and assemble the mahine,we can arrange.



Changsha Shangnuo machinery co. ltd pay attention to technical innovation, according to the actual production situation of customers, use new technology, new ideas to develop professional production equipment, improve your production efficiency! Pls feel free to contact with us wechat: snmachine
