Home > Products > Acoustic Box Fan/Wind Chassis > Miaventilation Steel Rotor Motor Supply Fan Large Volume 50k Cmh MIA-5000FJX

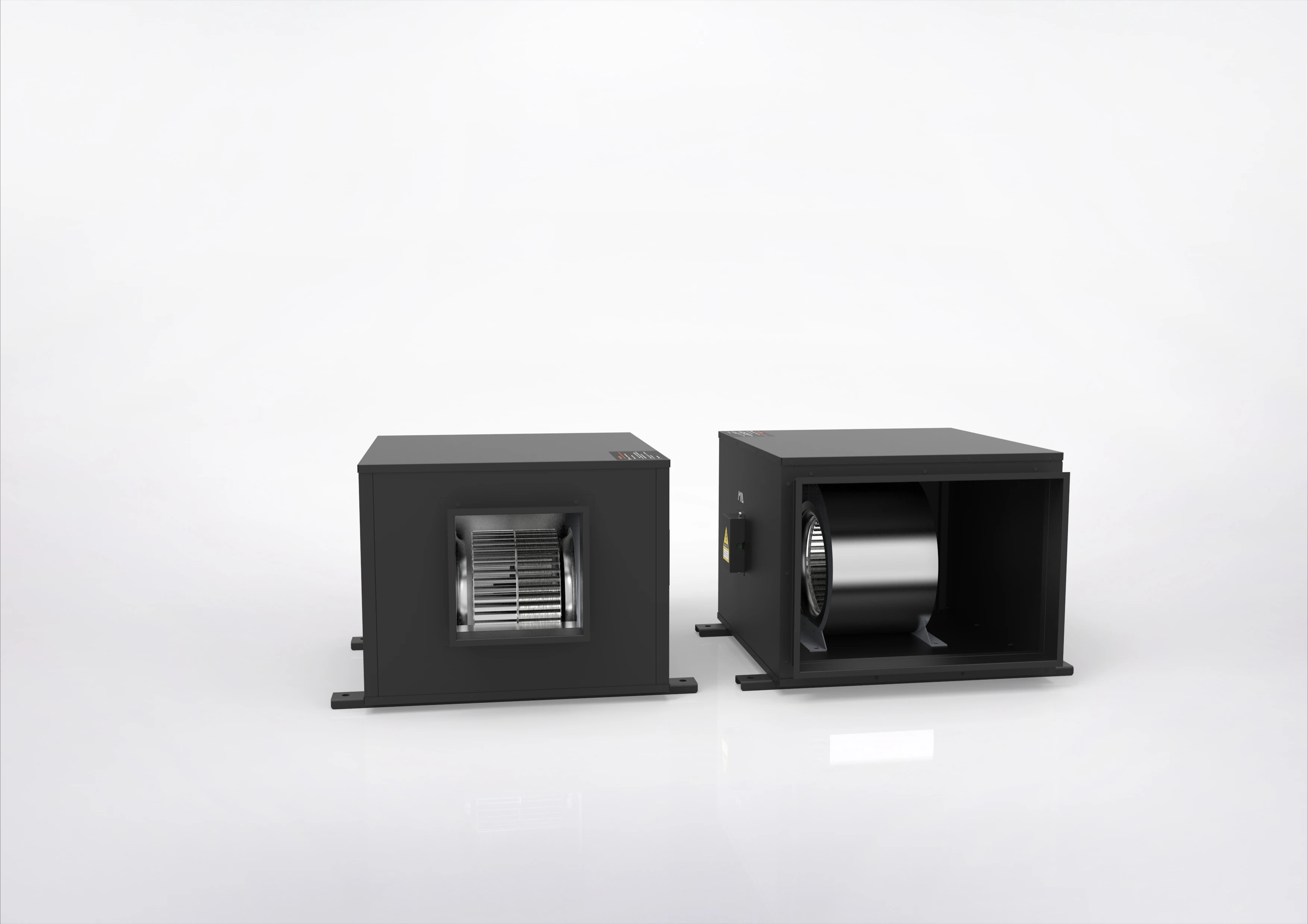

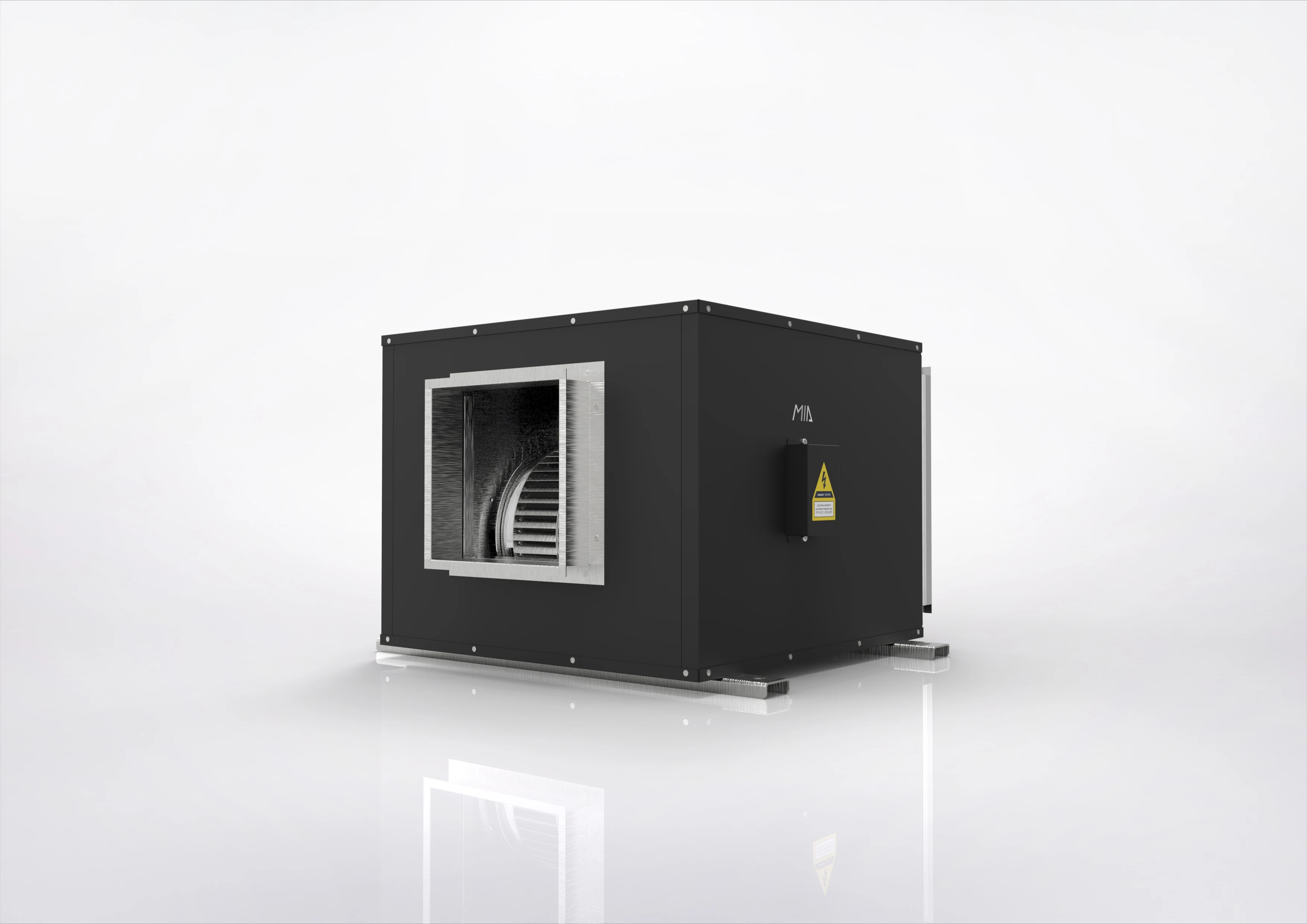

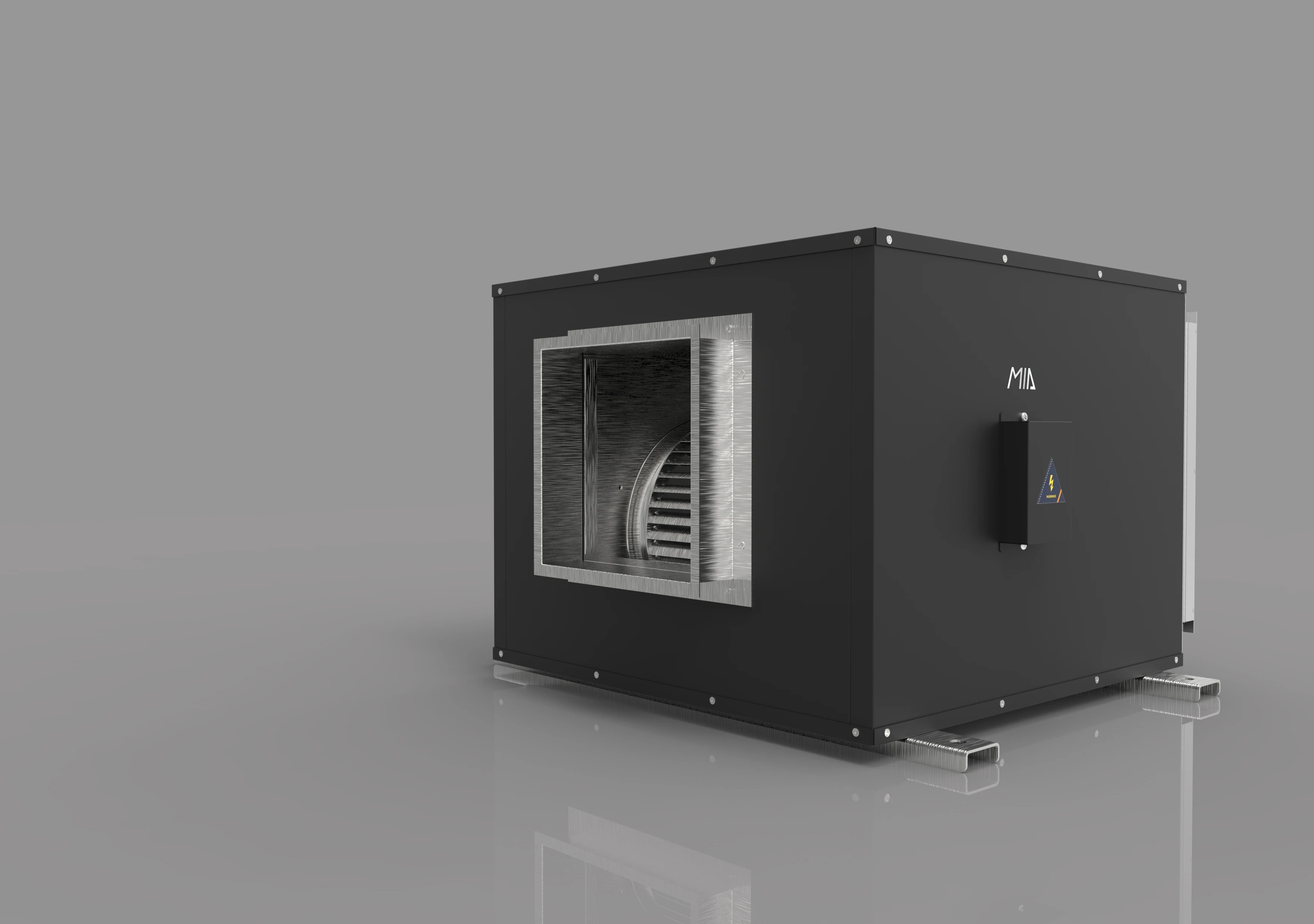

Miaventilation Steel Rotor Motor Supply Fan Large Volume 50k Cmh MIA-5000FJX

FOB Price

US$ 200 - 4500 / Set

1 Set(Min. Order)

Port shanghai
Payment TermsT/T PayPal Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	MIA	Place of Origin	China
Model Number	MIA-5000FJX	Certification	ROHS
Installation	Other, Ceiling Easy Installation

Product Description

Overview

Quick Details

Warranty:
More than 5 years

After-sale Service:
Online technical support

Project Solution Capability:
Others

Place of Origin:
Jiangsu, China

Brand Name:
MIA

Model Number:
MIA-5000FJX

Product name:
MIA Air To Air Ventilator

Material:
SGCC

Feature:
Customized

Application:
Residential, Office Room, etc, Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop

Function:
High Efficient Filtration Performance

Shape:
Square

Airflow:
50k m3/h

Motor:

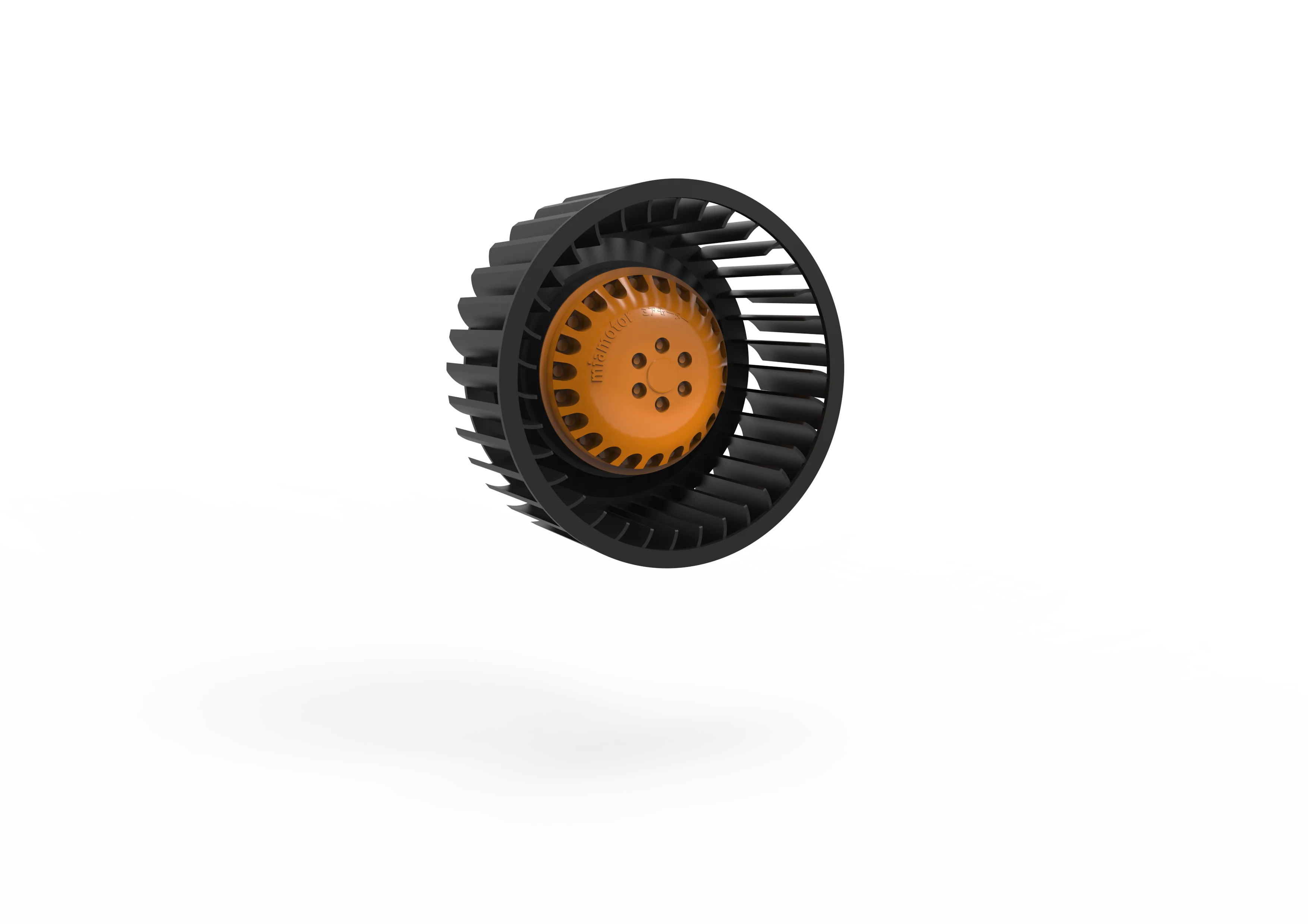

internal rotor motor

FIlter:
customized

Energy recovery exchanger:
NA

Supply Ability

Supply Ability:
10000 Set/Sets per Month

Packaging & Delivery

Packaging Details
Packaging Details Carton package with wooden box for safe export

Port
Shanghai Port

Lead Time :
Quantity(Sets) 1 - 10000 >10000
Est. Time(days) 7 To be negotiated

Product Description

Highlights

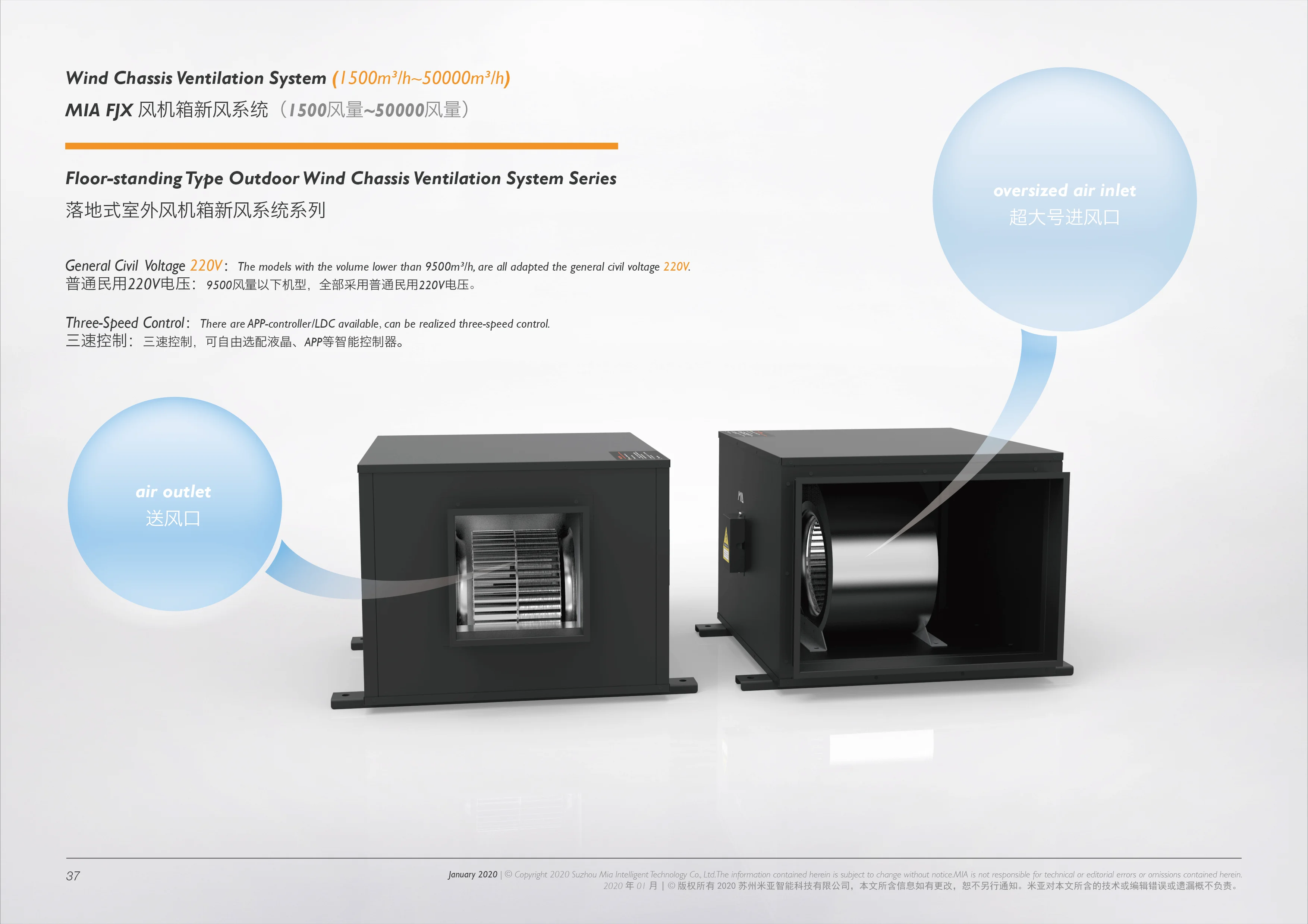

Floor-standing Type Outdoor Wind Chassis Ventilation System SeriesGenaral Civil Voltage:220V
The models with the volume lower than 9500 cmh, are all adapted the general civil voltage 220V.
Three-Speed Control (<9500cmh)
There are APP-controller/LDC available, can be realized three-speed control.

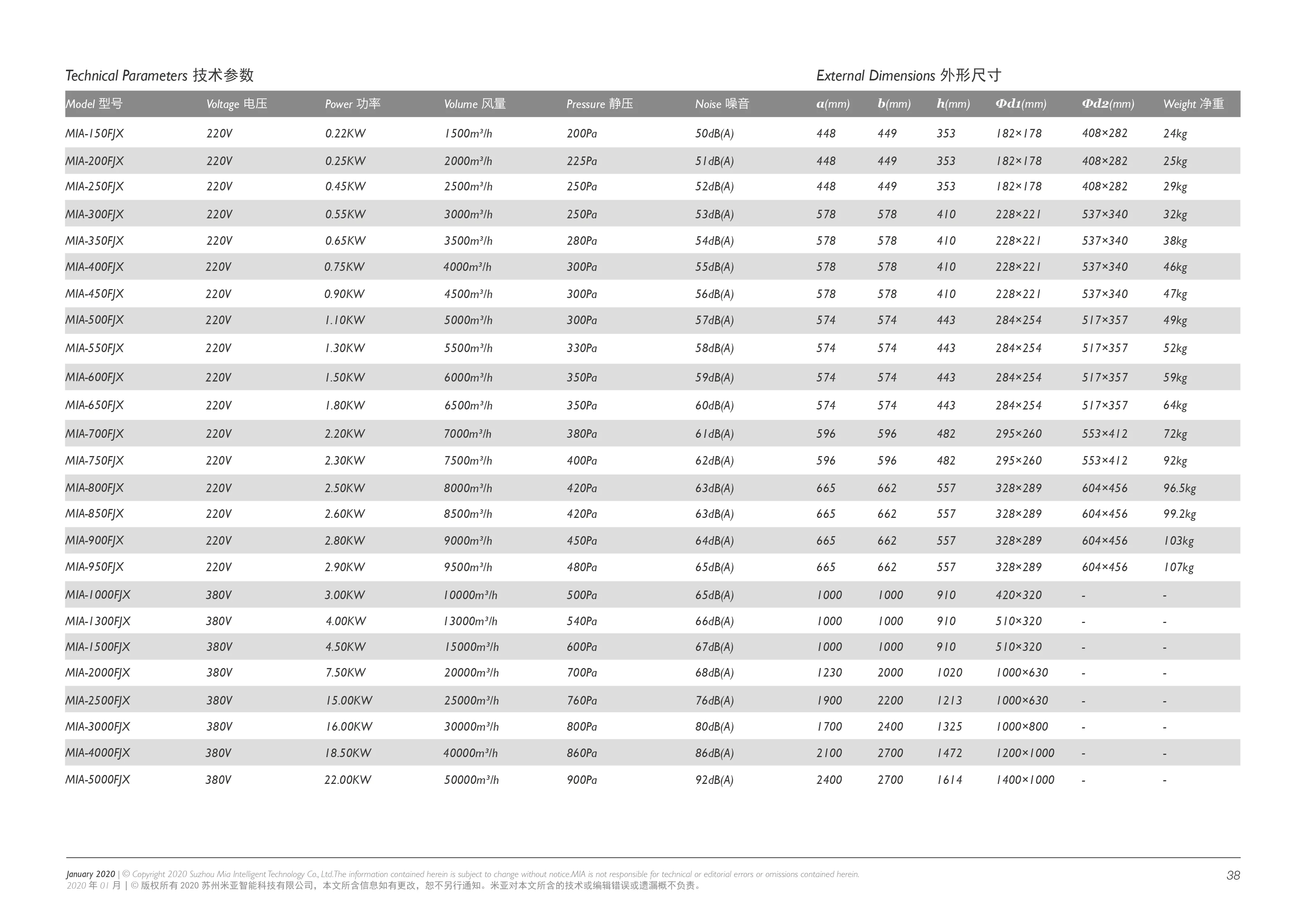

Specification

Model	Voltage	Power	Volume	Pressure	Noise	a(mm)	b(mm)	h(mm)
MIA-150FJX	220V	0.22KW	1500m³/h	200Pa	50dB(A)	448	449	353
MIA-200FJX	220V	0.25KW	2000m³/h	225Pa	51dB(A)	448	449	353
MIA-250FJX	220V	0.45KW	2500m³/h	250Pa	52dB(A)	448	449	353
MIA-300FJX	220V	0.55KW	3000m³/h	250Pa	53dB(A)	578	578	410
MIA-350FJX	220V	0.65KW	3500m³/h	280Pa	54dB(A)	578	578	410
MIA-400FJX	220V	0.75KW	4000m³/h	300Pa	55dB(A)	578	578	410
MIA-450FJX	220V	0.90KW	4500m³/h	300Pa	56dB(A)	578	578	410
MIA-500FJX	220V	1.10KW	5000m³/h	300Pa	57dB(A)	574	574	443
MIA-550FJX	220V	1.30KW	5500m³/h	330Pa	58dB(A)	574	574	443
MIA-600FJX	220V	1.50KW	6000m³/h	350Pa	59dB(A)	574	574	443
MIA-650FJX	220V	1.80KW	6500m³/h	350Pa	60dB(A)	574	574	443
MIA-700FJX	220V	2.20KW	7000m³/h	380Pa	61dB(A)	596	596	482
MIA-750FJX	220V	2.30KW	7500m³/h	400Pa	62dB(A)	596	596	482
MIA-800FJX	220V	2.50KW	8000m³/h	420Pa	63dB(A)	665	662	557
MIA-850FJX	220V	2.60KW	8500m³/h	420Pa	63dB(A)	665	662	557
MIA-900FJX	220V	2.80KW	9000m³/h	450Pa	64dB(A)	665	662	557
MIA-950FJX	220V	2.90KW	9500m³/h	480Pa	65dB(A)	665	662	557
MIA-1000FJX	380V	3.00KW	10000m³/h	500Pa	65dB(A)	1000	1000	910
MIA-1300FJX	380V	4.00KW	13000m³/h	540Pa	66dB(A)	1000	1000	910
MIA-1500FJX	380V	4.50KW	15000m³/h	600Pa	67dB(A)	1000	1000	910
MIA-2000FJX	380V	7.50KW	20000m³/h	700Pa	68dB(A)	1230	2000	1020
MIA-2500FJX	380V	15.00KW	25000m³/h	760Pa	76dB(A)	1900	2200	1213
MIA-3000FJX	380V	16.00KW	30000m³/h	800Pa	80dB(A)	1700	2400	1325
MIA-4000FJX	380V	18.50KW	40000m³/h	860Pa	86dB(A)	2100	2700	1472
MIA-5000FJX	380V	22.00KW	50000m³/h	900Pa	92dB(A)	2400	2700	1614

Filteration

High-voltage Electrostatic Dust

 With pin type electric discharge way, the high-voltage electrostatic dust can replace the traditional tungsten filament high-voltage electrostatic dust collection. Its thickness is only 4cm, can be suitable for all kinds of models. The removal rate of PM2.5 is highly to 98%, so that can effectively kill the bacteria and prevent the infection. It's washable, also can be cleaned
with brush, and will not increase the using cost.

Early Effect+Activated Carbon

 The sealing property is far more than the paper border with using the plastic margin. The filter with composite fiber, sprayed with activated carbon powder, can ilter dust particle efficiently and the wind resistance is very small. The even-distributed activated carbon power can maximize the role of activated carbon. This washable filter can be used repeatedly, and two in one way, early effect +activated carbon, greatly reduces the total cost of consumables.

High Efficiency Particulate Air Filter

The sealing property is far more than the paper border with using the plastic margin. To ensure the health and non-pollution, we take the environmental- friendly imported sealant, no color and no odor. The filter element that we use is 3M HEPA, meeting the European standard-H13, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total
cost.

Controllers

Certifications

FAQ

Q1. Are you a factory? Yes. We are professional ventilator manufacturer, specializing in the design, development, manufacture and sales.

Q2. How to calculate the air volume?

 *Number of people × 30 m3/h.

 *Room size × Floor height × Fresh air change rate (times/m3/h)

Q3. why do you choose us ?
 *The Japanese team exclusively develops and provides technical support.
 *Ten years long warranty period!
 *Provide the clients with one-stop service during pro-sales& after-sales.
 *Delivery time : We have stock for the under 8000m3/h , and we can ship at 3-5 workingdays .
 *HEPA(H13) Air Filter: other companies use the HEPA (11) or HEPA(12), but we use the HEPA (13),meeting the European standard-H13, and the PM2.5 removal rate can be up to 99.97% . The filter element that we use is 3M HEPA.

Q4. Where is your factory located? How can I visit there?
 The headquarted located in Suzhou Jiangsu Province , and near Shanghai .
 You can take the train or plane arrive . We'll meet you at our factory from the station.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
