in Discount UCP 207 Pillow Block Bearing

Name: in Discount UCP 207 Pillow Block Bearing
Brand: JINB
Price: Negotiable

FOB Price

Negotiable / Piece

100 Pieces(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port QINGDAO
Payment Terms:T/T Other
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	JINB	Place of Origin:	China	Model Number:	UCP205
Bore Size:	,

Product Description

Quick Details

Type:	Pillow Block, Pillow Block bearing	Bore Size:	12 - 100 mm	Brand Name:	JINB /OEM
Model Number:	Pillow Block Bearing	Place of Origin:	China (Mainland)	Certification:	ISO9001:2000
Material:	Chrome steel, Carbon steel, Stainless steel	Noise Leve:	Z1,Z2,Z3,Z4	Vibration level codes:	V4, V3, V2, V1
Free sample:	availabe	Service:	Original	Technology:	Advanced German technology
Lubrification:	Oil or Greese	OEM service:	Available

You can send inquiry for these pillow block Bearings below:
UCF200 SERIES

MODEL NO.	Length(mm)	Width(mm)	Height(mm)	Weight(kg)
UCF201	86	86	25.5	0.610
UCP202	86	86	25.5	0.610
UCF203	86	86	25.5	0.610
UCF204	86	86	25.5	0.610
UCF205	95	95	27	0.800
UCF206	108	108	31	1.000
UCF207	117	117	34	1.400
UCF208	130	130	36	1.800
UCF209	137	137	38	2.200
UCF210	143	143	40	2.400
UCF211	162	162	43	3.500
UCF212	175	175	48	4.200
UCF213	187	187	50	5.300
UCF214	193	193	54	5.900
UCF215	200	200	56	6.300
UCF216	208	208	58	7.300
UCF217	220	220	63	8.900
UCF218	235	235	68	11.60

- UCPH211 PH211

MODEL NO.	LENGTH(MM)	WIDTH(MM)	HEIGHT(MM)	WEIGHT(KG)
UCPH201	127	40	101	0.960
UCPH202	127	40	101	0.960
UCPH203	127	40	101	0.960
UCPH204	127	40	101	0.960
UCPH205	140	50	114	1.200
UCPH206	161	50	130	1.600
UCPH207	167	60	140	2.100
UCPH208	184	66	149	2.700
UCPH209	190	70	157	3.100
UCPH210	204	70	165	3.500
UCPH211	217	75	181	4.070
UCPH212	236	80	197	6.310

UCPA200 PA200:

MODEL NO.	LENGTH(MM)	WIDTH(MM)	HEIGHT(MM)	WEIGHT(MM)
UCPA201	76	38	62	0.670
UCPA202	76	38	62	0.630
UCPA203	76	38	62	0.620
UCPA204	76	38	62	0.600
UCPA205	84	38	72	0.810
UCPA206	94	48	84	1.200
UCPA207	110	48	95	1.700
UCPA208	116	54	100	1.900
UCPA209	120	54	108	2.200
UCPA210	130	60	116	2.600
UCPA211	140	66	125	3.000
UCPA212	150	68	138	4.240

UCFC200 FC200:

MODEL NO.	LENGTH(MM)	WIDTH(MM)	HEIGHT(MM)	WEIGHT(KG)
UCFC201	90	90	19	0.640
UCFC202	90	90	19	0.600
UCFC203	90	90	19	0.580
UCFC204	100	100	20.5	0.750
UCFC205	115	115	21	1.000
UCFC206	125	125	23	1.300
UCFC207	135	135	26	1.750
UCFC208	145	145	26	2.000
UCFC209	160	160	26	2.500
UCFC210	165	165	28	2.950
UCFC211	185	185	30	4.000
UCFC212	195	195	35	4.900
UCFC213	205	205	36	5.350
UCFC214	215	215	38	6.900
UCFC215	220	220	39	7.500
UCFC216	240	240	42	8.700
UCFC217	250	250	45	10.300
UCFC218	265	265	50	13.500

UCFB200 FB200:

MODEL NO.	LENGTH(MM)	WIDTH(MM)	HEIGHT(MM)	WEIGHT(KG)
UCFB201	109	60	25.5	0.620
UCFB202	109	60	25.5	0.580
UCFB203	109	60	25.5	0.570
UCFB204	109	60	25.5	0.620
UCFB205	116	68	27	0.690
UCFB206	132	80	31	0.930
UCFB207	144	90	33	1.300
UCFB208	164	100	35	1.800
UCFB209	175	108	38	2.000
UCFB210	184	114	39	2.300

UCFA200 FA200

MODEL NO.	LENGTH(MM)	WIDTH(MM)	HEIGHT(MM)	WEIGHT(MM)
UCFA201	98	59	24	0.530
UCFA202	98	59	24	0.490
UCFA203	98	59	24	0.480
UCFA204	98	59	24	0.460
UCFA205	125	68	27	0.690
UCFA206	144	80	31	1.000
UCFA207	161	90	34	1.500
UCFA208	175	100	36	1.800
UCFA209	181	108	38	2.100
UCFA210	190	115	40	2.300
UCFA211	219	130	43	3.600

UCT300 T300:

MODEL NO.	LENGTH(MM)	WIDTH(MM)	HEIGHT(MM)	WEIGHT(KG)
UCT305	122	89	26	1.410
UCT306	137	100	28	1.850
UCT307	150	111	32	2.450
UCT308	162	124	34	3.090
UCT309	178	138	38	1.080
UCT310	191	151	40	5.250
UCT311	207	163	44	6.410
UCT312	220	178	46	7.610
UCT313	238	190	50	9.220
UCT314	252	202	52	11.400
UCT315	262	216	55	12.900
UCT316	282	230	60	15.650
UCT317	298	240	64	19.340
UCT318	312	255	66	21.250
UCT319	322	270	72	24.400
UCT320	345	290	75	30.600
UCT321	345	290	75	30.200
UCT322	385	320	80	38.800
UCT324	432	355	90	54.600
UCT326	465	385	100	68.400
UCT328	515	415	100	83.200

UCT200 T200:

MODEL NO.	LENGTH(MM)	WIDTH(MM)	HEIGHT(MM)	WEIGHT(KG)
UCT201	94	89	21	0.800
UCT202	94	89	21	0.790
UCT203	94	89	21	0.780
UCT204	94	89	21	0.720
UCT205	97	89	24	0.800
UCT206	113	102	28	1.260
UCT207	129	102	30	1.680
UCT208	144	114	33	2.280
UCT209	144	117	35	2.520
UCT210	149	117	37	2.750
UCT211	171	146	38	4.100
UCT212	194	146	42	4.900
UCT213	224	167	44	6.700
UCT214	224	167	46	6.900
UCT215	232	167	48	7.400
UCT216	235	184	51	8.100
UCT217	260	198	54	11.00

UCFL300 FL300:

MODEL NO.	LENGTH(MM)	WIDTH(MM)	HEIGHT(MM)	WEIGHT(KG)
UCFL305	150	80	29	1.100
UCFL306	180	90	32	1.600
UCFL307	185	100	36	2.000
UCFL308	200	112	40	2.600
UCFL309	230	125	44	3.630
UCFL310	240	140	48	4.600
UCFL311	250	150	52	5.300
UCFL312	270	160	56	6.400
UCFL313	295	175	58	8.200
UCFL314	315	185	61	10.00
UCFL315	320	195	68	11.000
UCFL316	355	210	74	14.300
UCFL317	370	220	76	16.200
UCFL318	385	235	94	19.200
UCFL319	405	250	94	21.800
UCFL320	440	270	94	26.500
UCFL321	440	270	94	28.200
UCFL322	470	300	96	33.100
UCFL324	520	330	110	45.700
UCFL326	550	360	115	57.500
UCFL328	600	400	125	79.700

UCFL200 FL200

MODEL NO.	LENGTH(MM)	WIDTH(MM)	HEIGHT(MM)	WEIGHT(MM)
UCFL201	113	60	25.5	0.510
UCFL202	113	60	25.5	0.510
UCFL203	113	60	25.5	0.510
UCFL204	113	60	25.5	0.510
UCFL205	130	68	27	0.600
UCFL206	148	80	31	0.900
UCFL207	161	90	34	1.200
UCFL208	175	98	36	1.500
UCFL209	188	108	38	1.900
UCFL210	197	115	40	2.200
UCFL211	224	130	43	3.000
UCFL212	250	140	48	4.000
UCFL213	258	155	50	5.000
UCFL214	265	160	54	5.600
UCFL215	275	164	55	6.200
UCFL216	290	180	58	7.800
UCFL217	305	190	63	9.800
UCFL218	320	205	68	12.40

UCF300:

Model NO.	Length(mm)	Width(mm)	Height(mm)	Weight(kg)
UCF305	108	108	29	1.200
UCF306	125	125	32	1.800
UCF307	135	135	36	2.200
UCF308	150	150	40	2.900
UCF309	160	160	44	3.500
UCF310	175	175	48	4.800
UCF311	185	185	52	5.600
UCF312	193	193	56	6.700
UCF313	208	208	58	7.800
UCF314	226	226	61	10.100
UCF315	236	236	66	11.100
UCF316	250	250	68	12.800
UCF317	260	260	74	15.400
UCF318	280	280	76	19.000
UCF319	290	290	94	20.600
UCF320	310	310	94	25.700
UCF321	310	310	94	25.600
UCF322	340	340	96	38.000
UCF324	370	370	110	50.000
UCF326	410	410	115	66.000
UCF328	450	450	125	90.000

UCP200 UCP300 SERIES

Model NO.	Length(mm)	Width(mm)	Thickness(mm)	Weight(kg)
UCP201	127	38	60.7	0.760
UCP202	127	38	60.7	0.740
UCP203	127	38	60.7	0.720
UCP204	127	38	64	0.700
UCP205	140	38	69.5	0.760
UCP206	160	44	82	1.250
UCP207	167	48	92	1.550
UCP208	180	52	98	1.900
UCP209	189	54	106	2.200
UCP210	204	57	112	2.750
UCP211	217	60	125	3.300
UCP212	238	66	137	4.700
UCP213	262	70	149	5.600
UCP214	266	72	155	6.600
UCP215	274	74	162	7.300
UCP216	292	78	174	9.000
UCP217	310	83	186	10.80
UCP218	326	88	198	13.00
UCP220	380	95	225	16.00
UCP305	175	45	85	1.400
UCP306	180	50	95	1.800
UCP307	210	56	106	2.800
UCP308	220	60	116	3.080
UCP309	245	67	129	4.100
UCP310	275	75	143	6.000
UCP311	310	80	154	7.400
UCP312	330	85	165	9.400
UCP313	340	90	176	10.000
UCP314	360	90	187	12.000
UCP315	380	100	198	14.000
UCP316	400	110	210	18.000
UCP317	420	110	220	20.000
UCP318	430	110	220	24.000
UCP319	470	120	250	26.500
UCP320	490	120	275	34.300
UCP321	490	120	280	36.600
UCP322	520	140	300	42.500
UCP324	570	140	320	53.500
UCP326	600	140	355	72.100
UCP328	620	140	390	89.100

JINB Bearings mainly produces： Pillow block bearing and insert ball bearings with housing series including UC, UEL, UK, SA, SB, SER, NA, CS, CSA, CSB, MT, UCP, UCF, UCFL, UCT, UCFC, UCPA, UCFA, UCFB, UCFU, etc., radial spherical plain bearings include: GE, GEG, GEEW, GEEM, GEH, GEZ, etc. and Russian (GOST joint bearings) ШСП, ШСЛ, etc. Deep groove ball bearings: 6204-6215, 6304-6320, 6005-6015, widely used in agricultural machinery, ventilation equipment, washing and dyeing textile machinery, food machinery, construction machinery, automobiles, suspension systems, hydraulic equipment, printing, packaging, refrigeration, transmission equipment and other transmission and fixture supporting projects. JINB bearings not only serve domestic customers, but also products are exported to more than 30 countries and regions in Europe, America, the Middle East, Southeast Asia, etc., and have been unanimously recognized and praised by customers at home and abroad.

Agricultural machinery: Rotary tiller, planter: UCP205, sugarcane harvester UCFC204, UCFC205, UCFC206, UCFC207, UCFC208, soil raising machine, fan UCP204, UCP205, UCP206, UCP207, UCP208, UCP209, UCP210, wheat and rice cutter, agriculture Equipment UCF204, UCF205, UCF206, UCF207, UCF208, UCF209, UCF210

Deep groove ball bearings used in motors, automobiles, reducers, medical machinery, dump trucks, motorcycles, bicycles, trolleys, rollers, conveyor belts, assembly lines, etc.

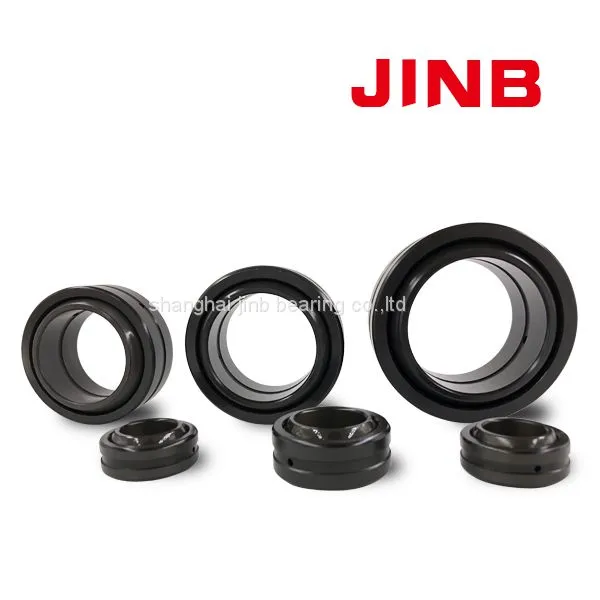

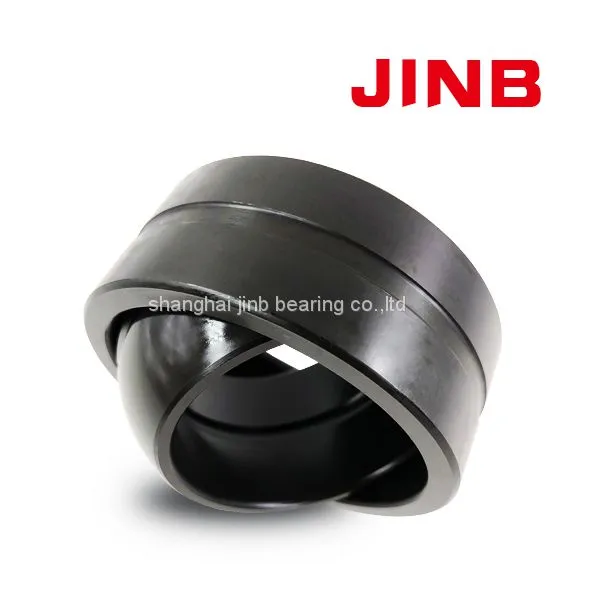

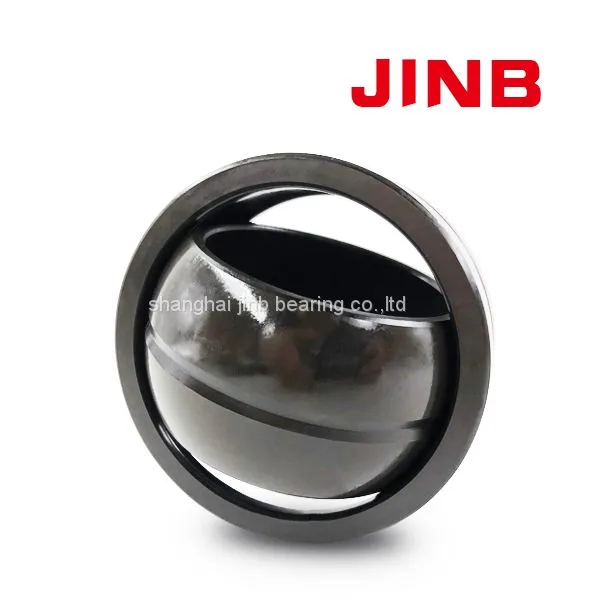

Spherical plain bearing joint ball bearing (Spherical plain bearing joint ball bearing) used in hydraulic cylinders, mining machinery, steel mills and metallurgical plants,

Now the fully automatic set-up instrument is producing 6204/6204-2RS/6204-ZZ, 6205/6205-2RS/6205-ZZ, 6206/6206-2RS/6206-ZZ, 6305/6305-ZZ/6305-2RS,

Joint bearings are in production GE20ES, GE25ES, GE30ES, GE35ES, GE40ES, GE45ES, GE50ES, GE55ES, GE60ES, GE70ES, GE75ES, GE80ES, GE90ES, GE100ES
