Home School Ceiling Center Standing Fresh Air Purifier/Fresh Air Cleaner/Air Purification Tank for AHU Systems

Suzhou Mia Intelligent Technology Co.,Ltd
Home School Ceiling Center Standing Fresh Air Purifier/Fresh Air Cleaner/Air Purification Tank for AHU Systems thumbnail-1
Home School Ceiling Center Standing Fresh Air Purifier/Fresh Air Cleaner/Air Purification Tank for AHU Systems thumbnail-2
Home School Ceiling Center Standing Fresh Air Purifier/Fresh Air Cleaner/Air Purification Tank for AHU Systems thumbnail-3
Home School Ceiling Center Standing Fresh Air Purifier/Fresh Air Cleaner/Air Purification Tank for AHU Systems thumbnail-4
Home School Ceiling Center Standing Fresh Air Purifier/Fresh Air Cleaner/Air Purification Tank for AHU Systems thumbnail-5
Home School Ceiling Center Standing Fresh Air Purifier/Fresh Air Cleaner/Air Purification Tank for AHU Systems photo-1
Home School Ceiling Center Standing Fresh Air Purifier/Fresh Air Cleaner/Air Purification Tank for AHU Systems photo-2
Home School Ceiling Center Standing Fresh Air Purifier/Fresh Air Cleaner/Air Purification Tank for AHU Systems photo-3
Home School Ceiling Center Standing Fresh Air Purifier/Fresh Air Cleaner/Air Purification Tank for AHU Systems photo-4
Home School Ceiling Center Standing Fresh Air Purifier/Fresh Air Cleaner/Air Purification Tank for AHU Systems photo-5
US$ 250 - 280 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
MIA
Place of Origin:
China
Model Number:
MIA-200JDHEPA
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MIA
Place of Origin China
Model Number MIA-200JDHEPA
Certification ROHS
Installation Other, Ceiling Easy Installation
Overview
Quick Details

  • Condition:

  • New

  • Applicable Industries:

  • Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

  • After Warranty Service:

  • Video technical support, Online support

  • Local Service Location:

  • Thailand, Australia

  • Showroom Location:

  • Thailand, Australia

  • Video outgoing-inspection:

  • Provided

  • Machinery Test Report:

  • Provided

  • Marketing Type:

  • New Product 2020

  • Warranty of core components:

  • More than 5 years

  • Core Components:

  • PLC

  • Place of Origin:

  • Jiangsu, China

  • Brand Name:

  • MIA

  • Warranty:

  • More than 5 years, 10 Years

  • After-sales Service Provided:

  • Online support

  • Filter:

  • G4, HEPA H13 High-voltage Electrostatic Dust Filter

  • Material:

  • SGCC

  • Size:

  • 350*364*270mm

  • Hole Size:

  • 200mm

  • color:

  • Black Customized

  • Function:

  • Clean ventilation air

  • Application:

  • Hotel Mall School House Villa Factory etc

  • Brand:

  • MIA Ventilation

  • Certification:

  • CA ISO SAA CCC ROHS
Packaging & Delivery

  • Selling Units:

  • Single item

  • Single package size:

  • 65X66.4X57 cm

  • Single gross weight:

  • 30.000 kg

  • Package Type:

  • Wooden case and carton

  • Picture Example:

  • package-img



    package-img

  • Lead Time :

  • Quantity(Units)1 - 1011 - 200201 - 500>500
    Est. Time(days)61015To be negotiated
Product Details
Home School Ceiling Center standing fresh air purifier/Fresh air cleaner/Air purification Tank for AHU Systems
1.Primary activated carbon two in one filter: filter dust particles, remove odor, formaldehyde.

2.Ion dust removal module: PM2.5 purification efficiency is ≥98%.

3.European standard H13 high efficiency filter: PM2.5 purification rate is ≥99.97%.

4. 87648 hours long warranty period!
Model
Voltage (AC)
Size (mm)
Hole Size (mm)
Filters
MIA-100HEPA
-
350*303*165
100
G4+HEPA H13 filter
MIA-100JDHEPA
220V
350*303*165
100
G4+HEPA filter+High-voltage electrostatic dust filter
MIA-150HEPA
-
350*320*223
150
G4+HEPA H13 filter
MIA-150JDHEPA
220V
350*320*223
150
G4+HEPA filter+High-voltage electrostatic dust filter
MIA-200HEPA
-
350*364*270
200
G4+HEPA H13 filter
MIA-200JDHEPA
220V
350*364*270
200
G4+HEPA filter+High-voltage electrostatic dust filter
Product Details Show
Early Effect Activated Carbon

The sealing property is far more than the paper border with using the plastic margin. The Filter with composite fiber, sprayed with activated carbon powder, can filter dust particle efficiently and the wind resistance is very small. The even-distributed activated carbon powder can maximize the role of activated carbon. This washable filter can be used repeatedly, and two in one way, early effect+activated carbon, greatly reduces the total cost of consumables.

High-voltage Electrostatic Dust Filter

With pin type electric discharge way,the high-voltage electrostatic dust can replace the traditional tungsten flament high-voltage electrostatic dust collection. It' s thickness is only 4cm, can be suitable for all kinds of models. The remova/ rate of PM2.5 is highly to 98%, so that can effectively Kil the bacteria and prevent the infection. It”s washable, also can be cleaned with brush, and wil not increase the using cost.

HEPA(H13)

The sealing property is far more than the paper border with using the plastic margin. To ensure the health and non-pollution, we take the environmental friendly imported sealant, no color and no odor. The filter element that we use is 3M HEPA, meeting the European standard- H13, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.

Name:Multiple Filtered Silent Fans(AC inner rotor fan)
Model:
MIA-200JDHEPA
Voltage
220V
Place of Orgin
China Suzhou
Materal:
SGCC

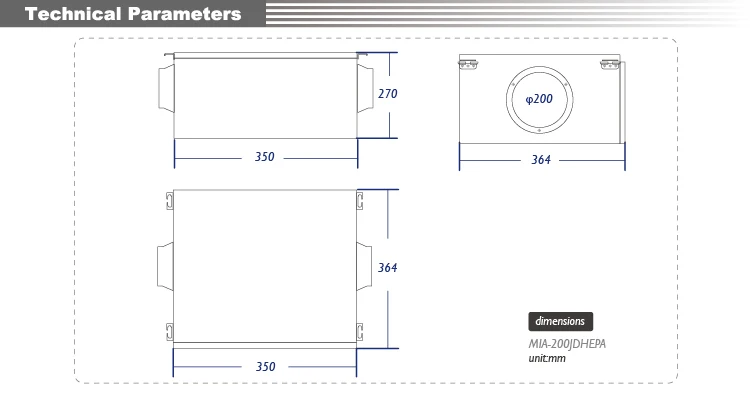

Size:
350*364*270mm
Warranty:
10 Years
φd:
200mm
Filters
G4 filter, HEPA H13 filter，High-voltage Electrostatic Dust filter
Product Display
Related Products
Small Home Ceiling Type Heat Recovery Exchanges Air Ventilator with 500m3/h Air Flow


Cabinet Type Heat Recovery Fresh Air Exchanger Air Ventilation


MIA Wall-mounted Mutliple Filtered Heat Recovery Exchanger Air Ventilation


Why Choose Us

About us:
MIA founded in 1983,was a manufacturer with large-scale production capacity,focusing on the production research and development of environmental ventilation equipments,such like Heat Recovery Ventilation (HRV), Ventilation Fans and Air Purifier etc .The Japanese team exclusively develops and provides technical support. MIA products were exported to over 70 countries,our aim is to delivery the indoor air quality to the world!
Our Service:
1.Ten years long warranty period!
2.Pro-sales:Help the clients calculate the air flow and choose the most suitable products with one-stop service .
3.After-service:Detailed technical support for your installation until the machine works well!
4.Most of our products have in stock here, it can be sent out for you ASAP!
5.CE, ROHS, ERP, LVD, EMC, ISO9001,SGS certifications.
6.OEM is supported!
