Square Sea Cage Fish Farming Floating Fish Cage

Square Sea Cage Fish Farming Floating Fish Cage photo-1
Square Sea Cage Fish Farming Floating Fish Cage photo-2
Square Sea Cage Fish Farming Floating Fish Cage photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Use:
Fish
Shape:
Diameter:
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
14 days
Use Fish
Material PE
Place of Origin China

Square Fish Cage

Cage Model

AF200S1

AF200S2

AF250S01

AF250S2

AF315S1

AF315S2

Measures(m)

5x5

7x7

7x7

9x9

11x11

13x13

Floating Pipe Dia(mm)

200

200

250

250

315

315

Handrail Pipe Dia(mm)

90

90

110

110

125

125

Handrail Upright Dia (mm)

110

110

125

125

125

125

Backet Separation (m)

2

2

2

2

2

2

Net

Nylon/PE/PP

Nylon/PE/PP

Nylon/PE/PP

Nylon/PE/PP

Nylon/PE/PP

Nylon/PE/PP

Material Used

PE100

PE100

PE100

PE100

PE100

PE100

Styrofoam Filling

Option

Option

Option

Option

Option

Option

Available with Walkway Decking

Option

Option

Option

Option

Option

Option



Introduction Of Fish Cage

Deep-water cages, also called offshore cages, are large-scale cages with a water depth of more than 15 meters and open coastal waters.

Deepwater cage culture has a large capacity and is a marine breeding facility with strong resistance to wind and waves and ocean currents. Deepwater cages are expanding breeding

It has shown obvious advantages in sea areas, alleviating coastal environmental pressures, improving the quality of farmed fish, and increasing the benefits of farming.

At present, the types of net cages in the world include floating net cages, lifting net cages, sunken net cages and semi-submerged net cages according to different operating methods.

Depending on the structure of the cage, there are round, square, polygonal and tapered. The material of the frame is also plastic, metal and concrete.

The same form. In recent years, HDPE (High Density Polyethylene) is used as the raw material for cages worldwide.


Advantage

1、 Corrosion resistance

Polyethylene pipe (PE pipe) is an inert material, which can resist the corrosion of various chemical media, without electrochemical corrosion, without anti-corrosion coating, and can be used in all water areas.

2、 Good hygiene

PE pipe processing does not add heavy metal salt stabilizer, no scaling, no bacteria, no water pollution.

3、 Long service life of pipeline

Mortar wear test shows that the wear resistance of PE pipe is more than 4 times of that of steel pipe, and its service life can be more than 50 years.

4、 Reliable connectivity

The strength of the joint is higher than that of the base metal itself.

5、 Convenient and fast construction

The quality of pipeline is light, the welding process is simple, the construction is convenient, the construction time of hot-melt connection is greatly reduced, and the comprehensive cost is low.

6、 Beautiful

There are two kinds of fish world cage, square and round, mainly black blue stripe PE pipe. The pipe fittings are orange and black, which have a sharp contrast with the water surface, and the visual appearance is beautiful and atmospheric.


How to use bouti1583 fishing bait trap cage feeder basket holder lure fish accessories

Great for catching smelt, eels, crab, lobster, minnows, shrimp and crawfish

These are spring lid cages that are well made and are perfect for use

Made of Stainless Steel, 2 Glow balls, Total Length: 6.3in, Trap Dia. 1.6"

5Pcs included. 3 size available in cage height: 1.6in, 2in, 2.4in

Please note: handmade products and the color of glow ball is random


How to make a fish cage

Build simple cages with locally available materials: make post cages with 4 wooden posts and fencing material. make simple cages hanging from a floating frame. make better floating cages suspended from floats. use woven material or netting with 1.5 cm openings. anchor your floating cages securely.

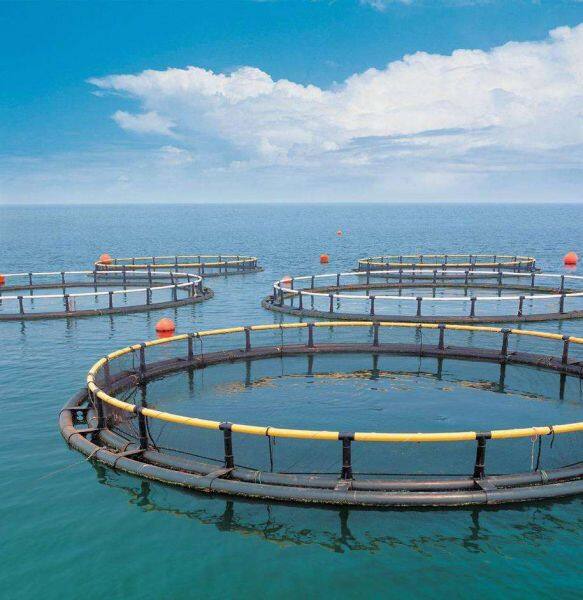

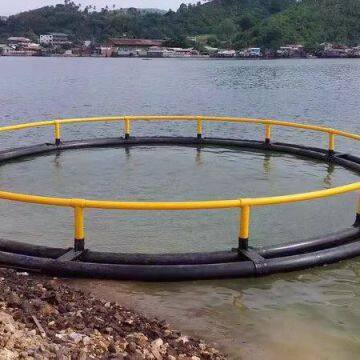

Circular Fish Cage

Cage Model

AF200C

AF250C

AF315C

AF400C

Cage Circumference(m)

30 to 60

40 to 80

60 to 120

90 to 160

Depth(m)

-5 to -60

-5 to -60

-5 to -60

-5 to -60

Floating Pipe Dia(mm)

200

250

315

400

Handrail Pipe Dia(mm)

90

110

125

125

Handrail   Upright Dia(mm)

110

125

125

125

Backet Separation(m)

2

2

2

2

Net

Nylon/PE/PP

Nylon/PE/PP

Nylon/PE/PP

Nylon/PE/PP

Material Used

PE100

PE100

PE100

PE100

Styrofoam Filling

Option

Option

Option

Option

Available with Walkway Decking

Option

Option

Option

Option



What is fish cage

Fish cages are placed in lakes, bayous, ponds, rivers, or oceans to contain and protect fish until they can be harvested. The method is also called "off-shore cultivation" when the cages are placed in the sea. They can be constructed of a wide variety of components.
