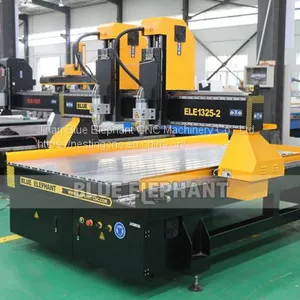

ELECNC-1325-2S Wood Working Machinery
- 1000 Piece / Pieces per Month
- T/T L/C Other
- Automatic Doypack Seal Machine (insert and sealing machine)
- Sand Water Filter/Water treatment plants
- IPX3/IPX4 Hand-held Water Spray Nozzle Test Device IEC 60529
- IPX5,IPX6 Jet Nozzle of IEC 60529, Brass material
- Adjustable and multifunctional Spring Impact Hammer IK01-IK07 Level Tester
- Test probe 43 IEC 61032-Probe 43-Figure 17 Jusdtest
Product Details
Brand Name: | Blue Elephant |
Product Description
This engraver is equipped with two independent spindles, which can be switched automatically to work or work at the same time. It greatly improves production efficiency. It is worth mentioning that the spacing between the two spindles can be adjusted to more intelligently meet the processing needs. In addition, the machine is designed with a rotating device. And whose position and length can be customized, user-friendly design, easy to disassemble and install.
Features:
Like 1325-2 Wood CNC Router, the machine was designed with two heads. And the amount of head can be added to three or more.
The machine can engrave several materials at one time, which can greatly increasing the working efficiency. There is also the typical features of 2055-DS Multi Heads CNC Wood Carving Machine.
All the Multi-head CNC Router Machines were designed with casting iron frame, Thicken and bigger steel pipe structure after special treatment, well welded, no distortion for whole structure, high precision and long using life.
Besides, the machine was designed with rotary device. And it’s length and dimension can be made just according to your actual need.
Parameter:
Description | Parameter |
X,Y,Z Working Area | 1300x2500x400mm |
Table Surface | T-slot working table |
Structure | Industrial class square tube strong structure |
Rotary device | Diameter 160mm, length 2000mm (option and customized) |
X, Y, Z axis Structure | Rack and gear for 3 axis, X axis, Y axis, Z axis |
Transmission | Taiwan PMI square linear guide way for 20mm |
X,Y Resolution | <0.01mm |
Spindle Power | Changsheng 3kw water cooling spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | FL118 stepper motor and YAKO2811 drive |
Inverter | Fuling 3.7kw inverter |
Control System | Mach3 4 axis control system |
Lubrication | Manual Lubrication system |
Tool sensor | Manual tool sensor calibration |
Control box | Control box inside |
Option | oil mist cooling sprayer; dust collector system |
Limit switch | Japan OMRON limit switch for X, Y, Z axis |
Command Language | G Code |
Computer Interface | USB |
Software Compatibility | ARTCAM software |
Running Environment Temperature | 0 – 45 Centigrade |
Relative Humidity | 30% – 75% |
Application
Multi router woodworking industry: Doors; Cabinets; Tables; Chairs.Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
Advertising industry: Signage; Logo; Badges; Display board; Meeting sign board; Billboard Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
We have cnc woodworking machines for sale, welcome to buy.
ABOUT BLUE ELEPHANT
BLUE ELEPHANT CNC is a high-tech enterprise specializing in the development and manufacture of automated woodworking equipment and CNC equipment. Our main products include ATC CNC router, 4 axis cnc router, high-end customized furniture production line, luxury nesting CNC, mature wardrobe nesting machine, CNC five-sided drilling, six-sided drilling, CNC machining center, automatic drilling machine, CNC drilling, etc. All our CNC routers are widely used in plate-type furniture, custom cabinet, solid wooden furniture and some other non-metal machining areas.
