Product Details
Brand Name: | Bideal | Place of Origin: | China | Model Number: | 500KHZ Analyzer |
Product Description
Ultrasonic Analyzer for Piezo Ceramics and Transducers Testing Frequency
Ultrasonic impedance Analyzer is developed by Tsinghua University of department of Automation and Institute of acoustics, Chinese Academy of Sciences. And mainly used in testing of piezoelectric ultrasonic device.
1. Dimension size: 24cmx19cmx (front 5cm, back 10cm), weight:2kgs. It is most portable ultrasonic impedance analyzer.
2. Touch screen, no pressing button,display all parameters and graphics, more intuitive.
3. Fast testing speed, it takes 5 seconds to test 1000 points one times.
4. The maximum testing frequency can be 500KHZ & 1MHZ.
5. SIEMENS automatic patch manufacturing process, three years quality guarantee period.
Four advantages:
1. Technology developed by Tsinghua University and Institute of acoustics, Chinese Academy of Sciences.
2. The CC220 and 320 series products have been sold 15 years since 2001, thousand of customers using in
Ultrasound industry, in fact it has be ultrasonic industry measurement standards.
3. In 15 years, we develop CC520, CC530 and CC550, more than 200 University Research Institute using
our instrument.Our instrument has made test comparison with Agilent 4294A,it is proved that the test result of our instrument is completely reliable.
4. Our instrument has been used by a lot of Companies of Germany and America as test equipment.

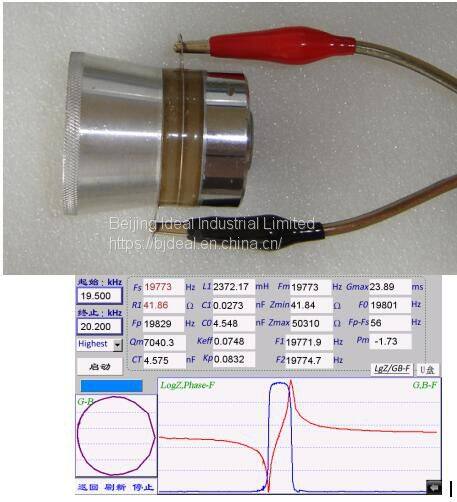

In the ultrasound testing, the admittance circle diagram and logarithmic diagram are very important,
because these two diagrams is the main method to adjusting qualified. This instrument has below parameters:
resonance frequency (Fs)、maximum conductance (Gmax)、bandwidth(F2-F1)、antiresonance frequency (Fp)、
quality factor(Qm)、Free capacitor (CT)、dynamic resistance (R1)、dynamic inductance (L1)、dynamic
capacity (C1)、direst capacitance (C0)、effective electro-mechanical couple factor(Keff),planar
electromechanical coupling factor(Kp), free dielectric constant
Application: all kinds of ultrasound parts testing: piezoelectric ceramic, transducer, ultrasonic cleaner,
ultrasonic plastic welding machine, water sound, magnetostrictive material, ultrasonic disintegrator,
ultrasonic atomizing, ultrasonic tooth cleaner, distance sensor,ultrasonic emulsification, ultrasonic descaling,
ultrasonic motor, and all other piezoelectric and ultrasonic equipment and device.
Product model and specification:
mode Specification | 500KHZ | 1MHZ |
Specification | Portable,7.8 inch touch screen | Portable,7.8 inch touch screen |
Size | Length:24cm,width:19cm,front height:5cm、back height:10cm | Length:24cm,width:19cm,front height:5cm、back height:10cm |
Frequency range | 1KHZ-500KHZ | 1KHz~1MHz |
Indicator | All parameter and graphics | All parameter and graphics |
Measurement Accuracy | <0.1% | <0.1% |
Measurement Speed | 5 second/piece( 1000 scan dots) | 5 second/piece( 1000 scan dots) |
Frequency Accuracy | ±10ppm | ±10ppm |
Phase Resolution | 0.15degree | 0.15degree |
Enviroment temperature | 10~40cº | 10~40cº |
Impedance Range | 1Ω~1MΩ | 1Ω~1MΩ |
Frequency Step | 0.1Hz~any | 0.1Hz~any |
Power | AC100V~AC250V,50~60Hz, 30W | AC100V~AC250V,50~60Hz, 30W |
Application | AC100V~AC250V,50~60Hz, 30W | Ultrasonic cleaner,ultrasonic welding |
