vacuum infusion Flow mesh/net For marine industry in resin infusion process for vacuum infusion process , high temperature

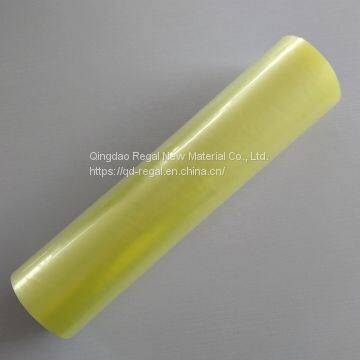

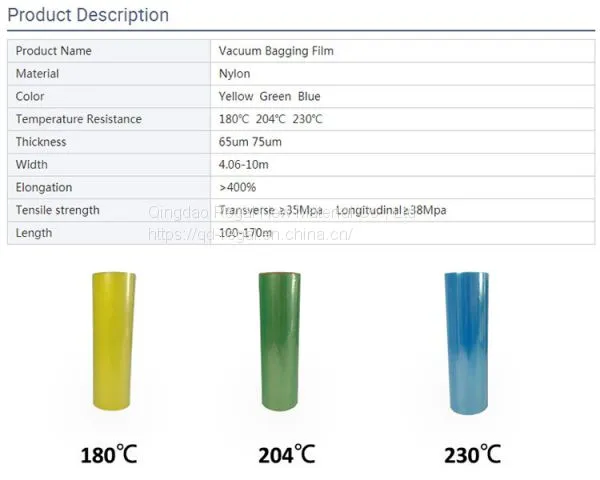

resistance nylon vacuum bag film factorynylon vacuum bagging film for resin infusion

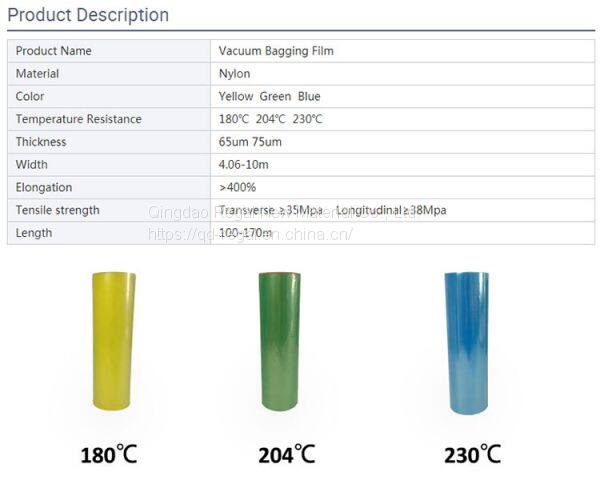

1. good extensibility, thermal stability, high tensile strength and tear-resistance,
2. maintain softness even in winter.
3. suitable for vacuum importing and infusion technology of unsaturated, vinyl resin, epoxy resin system.

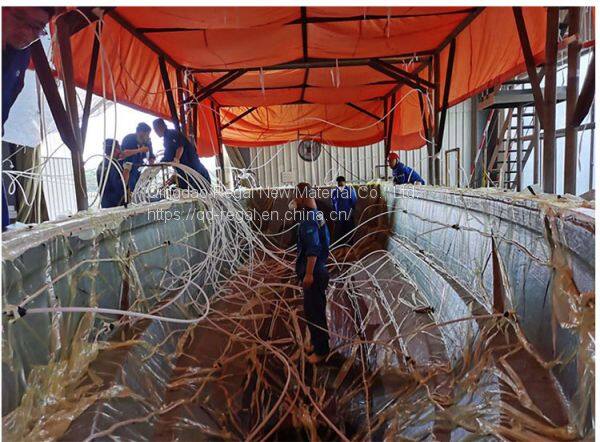

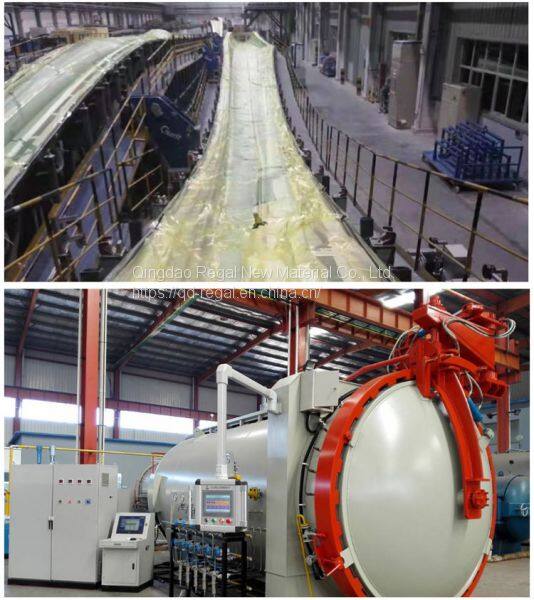

4. widely used in boat equipment, wind turbine blades and other industries.vacuum infusion Flow mesh/net For marine industry in resin infusion process

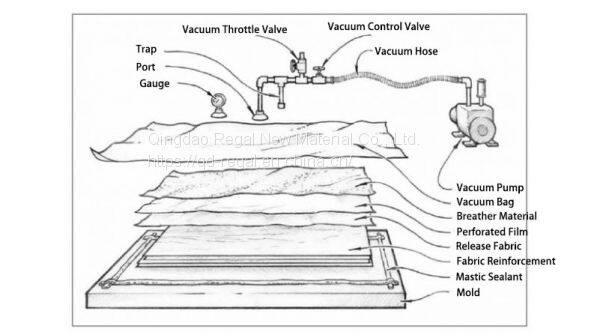

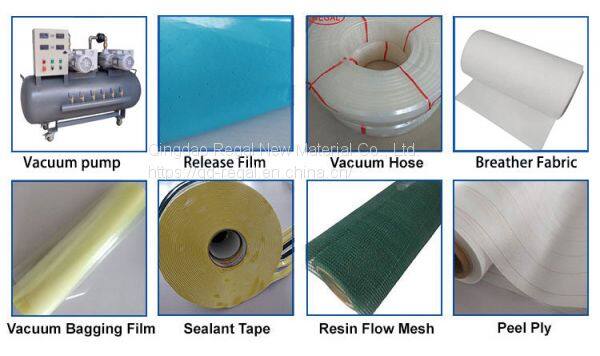

Sealant tape

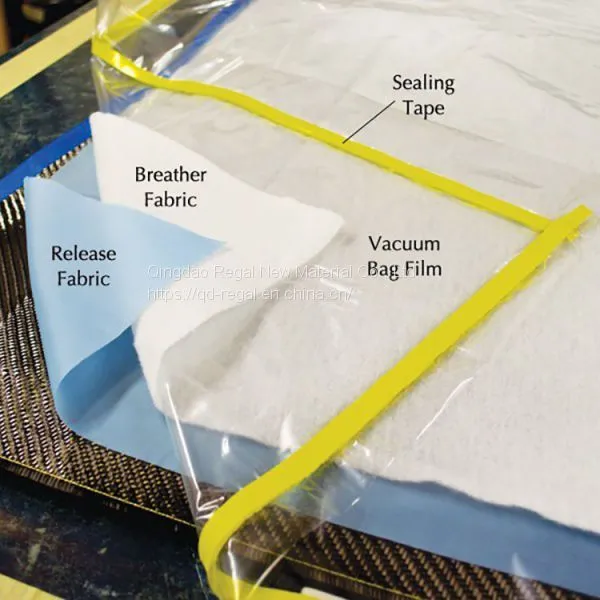

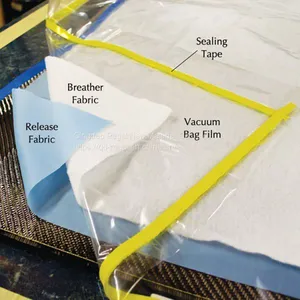

Lay down a layer of sealant tape around the perimeter of the part, leaving some space between it and the laminate. The area where the tape is put down should be clean and free of epoxy residue and stray fibers. Sealant tape is also commonly referred to as tacky tape or mastic sealant.
Release fabric
Release fabric should be laid directly on top of the wet laminate. Release fabric leaves a textured finish when it is removed, reducing the need for surface prep before secondary bonding. Release fabric is commonly referred to as peel ply. The most common types of peel ply are made out of nylon or polyester fibers. Some peel ply is coated with release agents.
Release film
Perforated release film is a thin plastic with small holes that control how the excess epoxy moves from the part to the breather fabric. This is an optional layer in the vacuum bagging process.
Breather fabric
The function of the breather fabric is really two-fold. As vacuum pressure consolidates the laminate, the squeezed-out epoxy goes through the peel ply (and the release film if you are using it) and is absorbed by the breather fabric. Because of its open structure, air flows easily through breather fabric allowing the air to be evacuated from the consolidated laminate. Breather fabric is also referred to as “baby blanket.”
