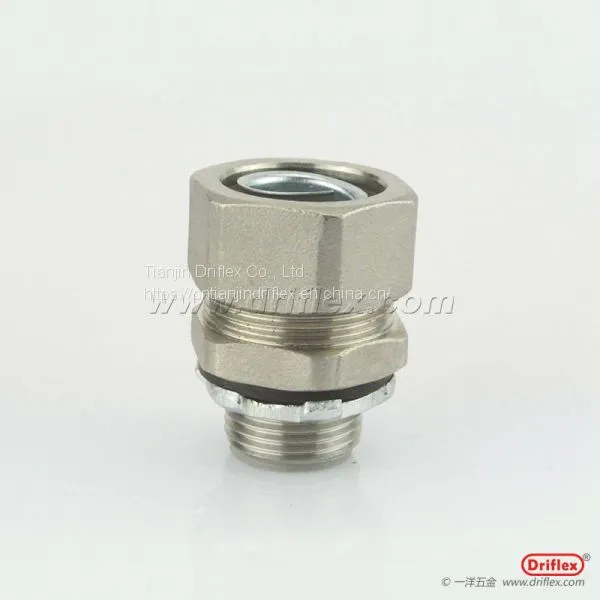

NPT 1 1/4 INCH STAINLESS STEEL 304 STRAIGHT FLEXIBLE CONDUIT CONNECTOR

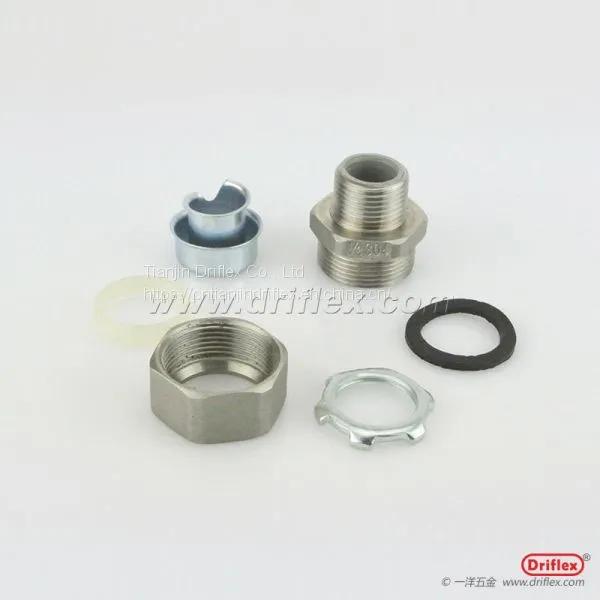

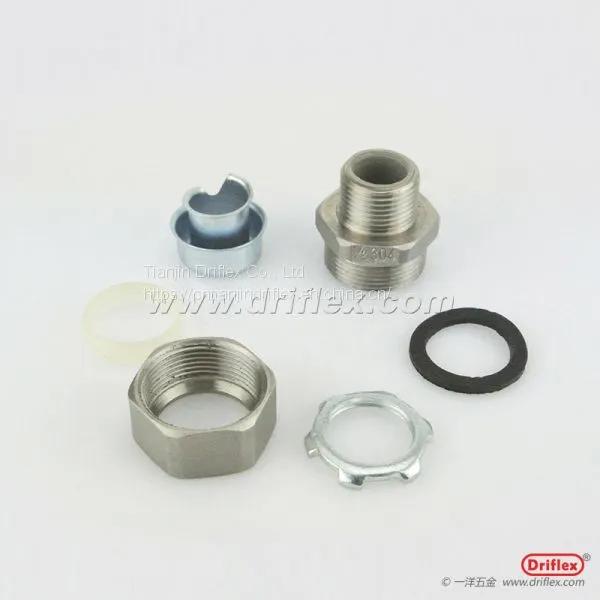

Structure:

Connector body with hexagonal wrench surface, thread ISO metric in accordance with EN60423 or thread NPT in accordance with ANS/ASME B1.20.1-1983, hexagonal pressure nut, sealing ring and ferrule

Material:

• Connector body - Stainless Steel

• Hexagon pressure nut -  Stainless Steel

• Sealing ring - Nylon 66

• Ferrule - Galvanized steel or Stainless Steel

Features:

• Simple, one piece installation provides a quick and reliable liquid-tight seal

• IP rating from IP40 to IP66/67 in combination with the corresponding flexible conduits

• High mechanical strength

• Highly liquid-tight and dustproof

• Vibration and tensionproof

• Inherently low fire hazard

• Covering of the conduit ends

• Available in straight, 45^o and 90^o bodies

• Available in ISO Metric and NPT threads

Applications:

• General indutrial and commerical electrical wiring protection

• Machining centres and robotics

• any narrow space in static applications

• General wiring for OEM applications

• Low fire hazard applications

• Underflooring wiring in office buildings Special Applications:

• Machine tools

• Installations where liquid-tight is a requirement

• Outdoor installation

According to customer's samples and specifications, we can manufacture special fittings for suit any type of flexible conduit applications.

Specifications:

Suitable flexible conduits:

• VJ type of vacuum jacketed flexible conduit

• LT type of liquid-tight flexible conduit

• FM type of flexible metallic conduit
