Proceq GP8000 is the world's first large-scale inspection solution that utilizes Augmented Reality in industrial applications, and is now available on Apple iPad with iOS 12. You can now augment the world around you with 2D and 3D visualizations of GPR data and insights merged seamlessly with your local environment.

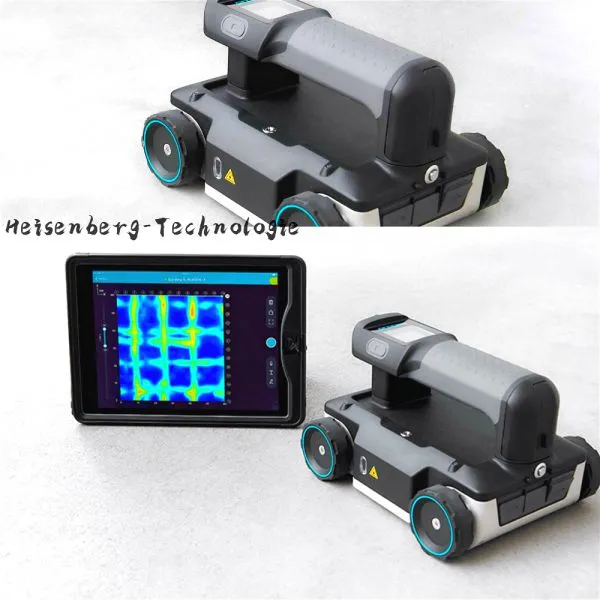

Portable ground penetrating radar-Proceq GP8000
Proceq GP8000
Innovative ultra-wideband portable GPR for concrete testing
Proceq GP8000 portable ground penetrating radar instrument is the beginning of a new era of NDT. The outstanding patented ultra-wideband technology combined with a compact wireless probe can reliably detect objects and back walls just by connecting to the iPad, with amazing clarity and ease of use.
Proceq GP8000 is the world's first large-scale inspection solution that uses augmented reality technology in industrial applications, and is now available on Apple iPad with iOS 12. You can now expand the world around you with 2D and 3D visualization of GPR data and seamlessly integrated insights. Related to your local environment
1122
The first ultra-wideband
The new Proceq GPR Live uses a unique continuous wave stepping frequency technology to achieve the broadest spectrum on the market. All applications that normally use the 0.2 to 4.0 Ghz range can now be covered with one device. No need to buy and switch to different antennas to cope with each detection position. In fact, current GPR solutions cover only one frequency and can only scan a specific penetration depth. In addition, such solutions also have great limitations in terms of detectable object size.
High-strength connectivity
Proceq GPR Live has a powerful ecosystem. The wireless scanning cart together with Apple® iPad and Proceq Live Web tools can support real-time data analysis and sharing. Industry 4.0 is now a reality!
undefined
Simplify daily operations through imaging
The Proceq GPR Live iOS app is designed to simplify the entire concrete evaluation process. For example, the integrated wizard uses acoustic feedback to help you during area scanning. Another thing that makes the job of each operator easier is the intuitive object recognition sign.
The largest display on the market
Swiss-made Proceq GPR Live connects to Apple® iPad wirelessly via the iOS app. As a result, Proceq GPR Live can instantly image on a high-resolution touch screen up to 12.9 inches (iPad Pro), which makes it the largest GPR display on the market.
undefined
Compact probe design
The compact Proceq GPR Live is assembled in a light and strong housing. Even when used in a challenging environment, the measurement results can be guaranteed even when used in a challenging environment. In addition, the probe can use standard rechargeable AA batteries to run, ensuring smooth air travel and easy battery replacement worldwide.
343rr
Overview
Advantage
The first ultra-wideband GPR technology
Powerful iOS user interface for easy concrete evaluation
Secure Proceq Live web tool to share your measurements in real time
Frequency Range
Stepped-Frequency Continuous-Wave (SFCW) GPR
Frequency Range
0.2 to 4.0 GHz
Maximum depth range (dry concrete)
80 cm / 31.5 inch
application
Quality assessment and uniformity
Uniformity inspection of new buildings
Locating of rebars, tendons, ducts and pipes before drilling, cutting and coring
Exploring unknown structures
Position rebar before drilling, cutting and coring
Fixed point detection of protective layer and reinforcement size
Complete imaging of rebar geometry
Single-sided thickness measurement
Investigation of pavement and bridge decks
Features
Display screen
Any compatible Apple® iPad (iOS 9.0 and higher)
RAM
Up to 1 TB (depending on the iPad model)
Connect
Encrypted Wi-Fi connection to iPad
Measurement mode
Line Scan
Area Scan with Flexible Grid
Review modes
Non-Migrated Scan
Migrated "Heatmap"
Timeslice/Depthslice
On-site 3D View (Pro model only)
On-site Augmented Reality (2D and 3D)
Reporting software
Logbook feature for full traceability of the measurement procedure
Export snapshots to JPEG and PNG
Export raw data to SEG-Y (Pro model only)
Battery
Removable pack, 8x AA (NiMH), flight-safe
Battery life
3.5 hours of continuous use
Special Features
All-wheel drive with high-traction wheels
Laser light guidance
8 mm / 0.3 in of ground clearance
