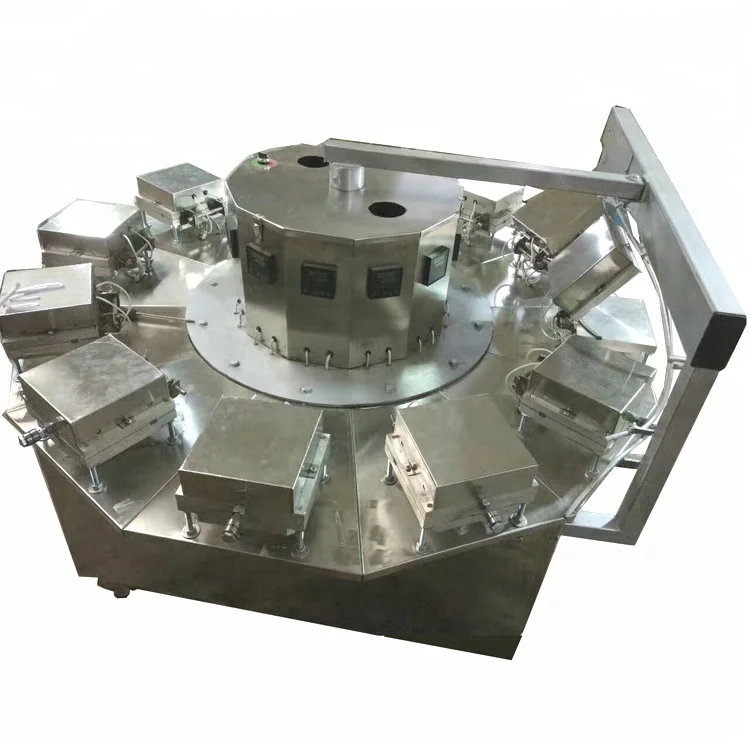

OC-9E Commercial Automatic Rolled Ice Cream Sugar Cone Maker Making Machine WT/8613824555378

OC-9E Commercial Automatic Rolled Ice Cream Sugar Cone Maker Making Machine WT/8613824555378 photo-1
OC-9E Commercial Automatic Rolled Ice Cream Sugar Cone Maker Making Machine WT/8613824555378 photo-2
OC-9E Commercial Automatic Rolled Ice Cream Sugar Cone Maker Making Machine WT/8613824555378 photo-3
OC-9E Commercial Automatic Rolled Ice Cream Sugar Cone Maker Making Machine WT/8613824555378 photo-4
US$ 5950 - 7679 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Yuniao
Place of Origin:
China
Model Number:
OC-9E
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
7 days
Brand Name Yuniao
Place of Origin China
Model Number OC-9E
Certification CE
After-sales Service Provided No overseas service provided
Warranty 1 year
Weight 1200Kg
Dimension(L*W*H) 3200*2700*1900mm
Condition New
Voltage 380V
Application Biscuit
Power(W) 18KW
Product Description

Brief Introduction of Automatic Ice Cream Sugar Cone Machine:

The machine is used for rolling sugar cones. It offers cones to the next process to be filled with ice cream. First it dipenses batter on the baking plates to prepare the wafers for shaping, then rolls them up, keep them in shape unload them finally. It is the main device of the prduction line. Excellent performances have allowed International Standards to be comfortably met.

The Main Function of Automatic Ice Cream Sugar Cone Machine:

1, Produced by the crisp and delicious products, uniform color.

2, Heating temperature automatically adjusts, uses the thermostat, the temperature control is accurate.

3, Automatic feeding, adjustable amount of material, and the adjustment is simple.

4, Using a special process, non-stick layer heating plate

5, The overall use of stainless steel frame welded pipe, never rust, easy to clean.

6, Mold can be customized to meet different need.OC-9E Commercial Automatic Rolled Ice Cream Sugar Cone Maker Making Machine

The Technical Parameters of Automatic Ice Cream Sugar Cone Maker
ModelOC-9EOC-9GOC-12EOC-12GOC-15EOC-15GOC-18EOC-18G
Baking mold(pcs)99121215151818
Capacity(pcs/h)500-600500-600600-800600-800800-1000800-10001000-12001000-1200
Power(kw)140.75190.7523.50.75280.75
Heatingelectricgaselectricgaselectricgaselectricgas
Dimension(mm)

1600*1600

*1250

1800*1800

*1450

1700*1700

*1250

1900*1900

*1450

1800*1800

*1250

2000*2000

*1450

1900*1900

*1250

2200*2200

*1450

Voltage

380V 50HZ(can be customized)

Air pressure

0.6-0.8Mpa

OC-9E Commercial Automatic Rolled Ice Cream Sugar Cone Maker Making Machine

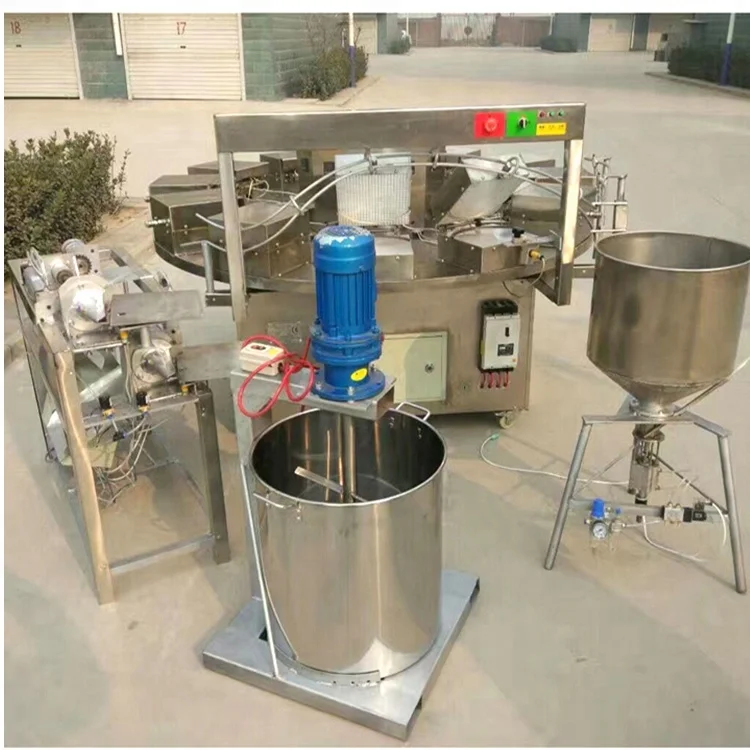

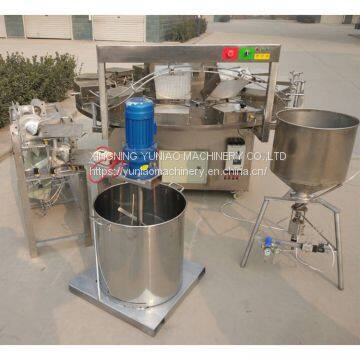

The Whole Product Line of  Automatic Ice Cream Sugar Cone Machine:OC-9E Commercial Automatic Rolled Ice Cream Sugar Cone Maker Making Machine

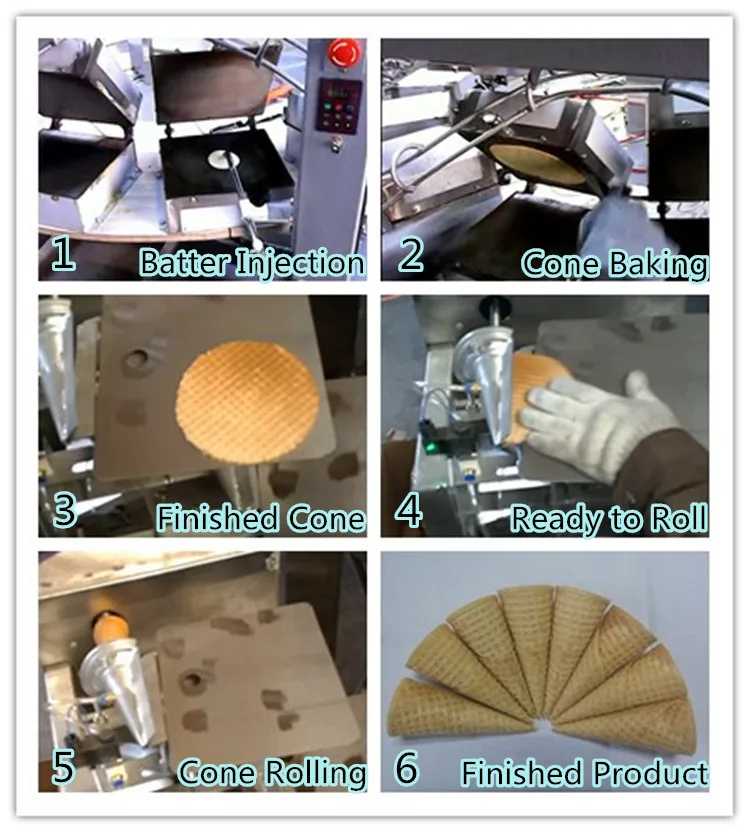

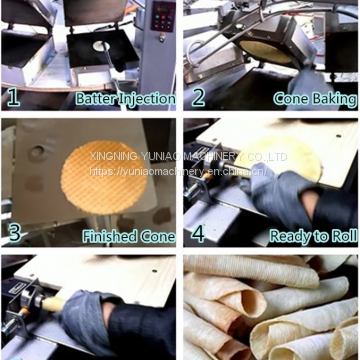

The Product Processing of  Automatic Ice Cream Sugar Cone Machine:OC-9E Commercial Automatic Rolled Ice Cream Sugar Cone Maker Making Machine


Contact the following  WhatsApp to get video.
