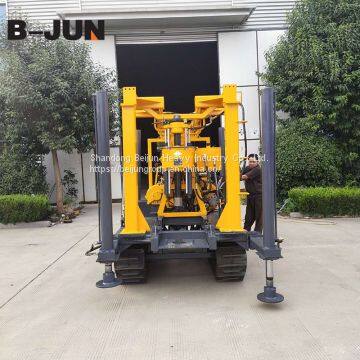

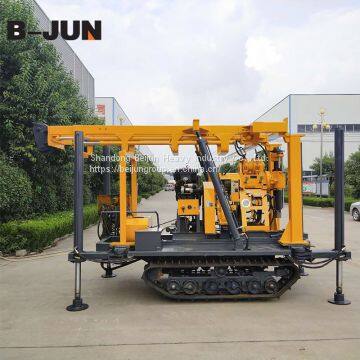

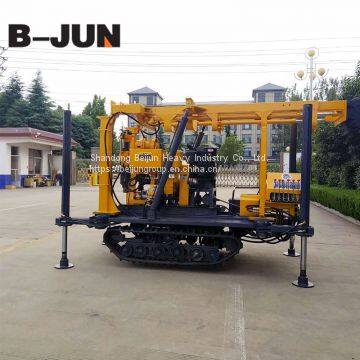

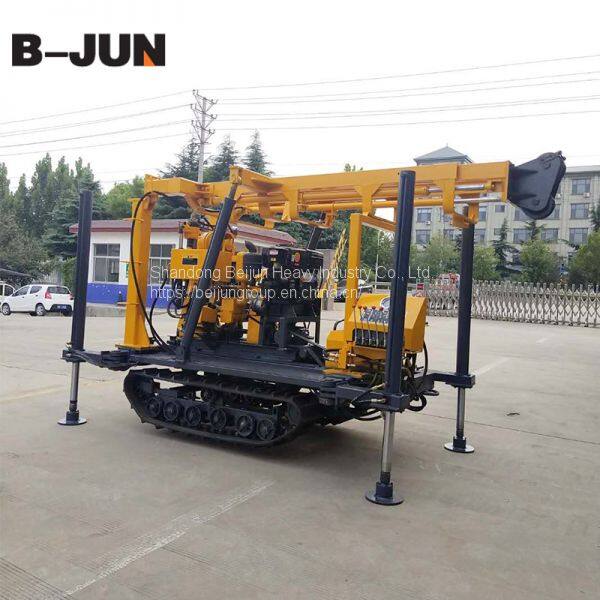

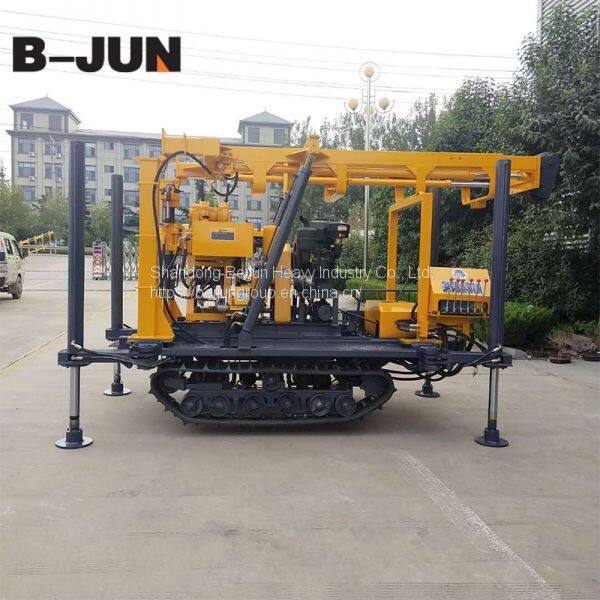

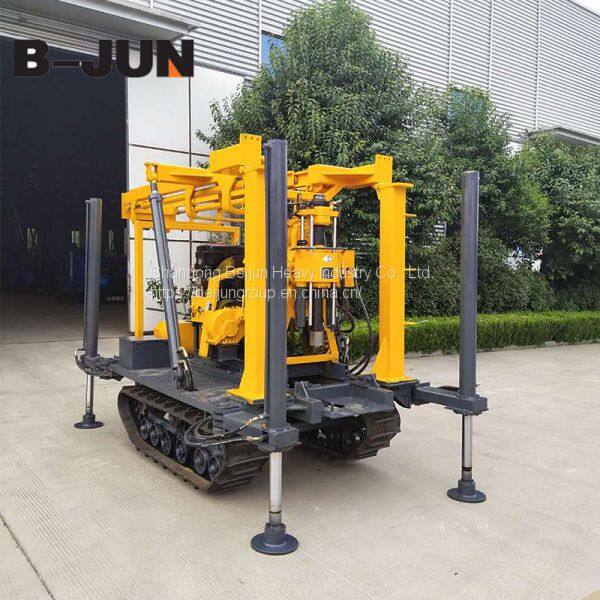

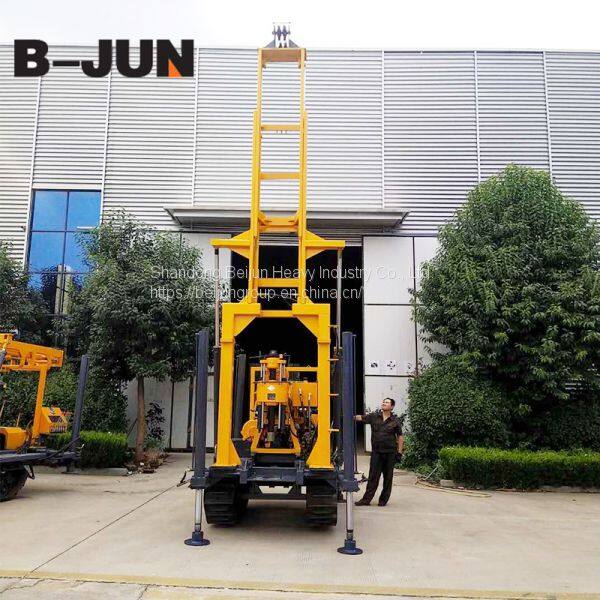

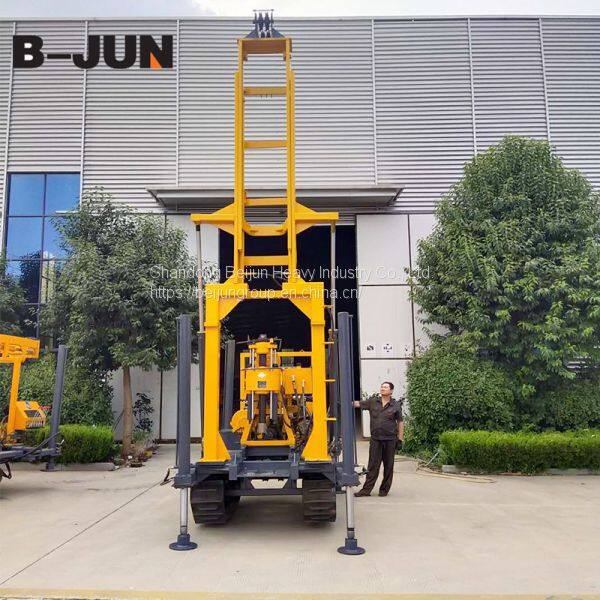

XYD-130 crawler hydraulic core drilling rig
1.The features of XYD-130 crawler hydraulic core drilling rig
The drilling rig adopts the automatic Telescopic style with two high strength oil cylinder support, a set of hydraulic valve control rigs operating supine, which is time-saving, safe and reliable to maximize the benefits for users.
The chassis adopts rubber track, light weight and low life cycle cost, which can reduce noise of vehicle running mechanism, reduce car body vibration, and reduce fuel consumption greatly. It can walk on urban roads without hurting the road surface.
The chassis is equipped with four high strength threaded legs (or hydraulic high leg). The installation and adjustment is fast and convenient. It can be used for leveling of work plane, loading and unloading vehicle, which reduces the hoisting cost and improves efficiency and works as auxiliary support.
The drilling rig uses 48V electricty to start the diesel engine , which greatly reduces the labor usage, especially in the cold season. When the diesel engine has difficulty activiting, this starting mode shows greater advantages.
2.Technical parameters of XYD-130 crawler hydraulic core drilling rig
XYD-130 crawler hydraulic core drilling rig | |
Drilling depth |
130m |
Maximum opening diameter |
220mm |
Diameter of the end hole |
75mm |
Drilling rod caliber |
50mm |
Drilling angle |
90°-75° |
Drill weight (no include power) |
2600kg |
Spindle | |
Spindle speed |
142/285/570 r/min |
Spindle stroke |
450mm |
Windlass | |
Max single line hoisting capacity |
1600kg |
Single line lifting speed |
0.41/0.82/1.64 m/s |
Drum diameter |
140mm |
Wire rope diameter |
13mm |
Wire rope capacity |
27m |
Mud pump | |
Type |
horizontal single urn twin-action |
Displacement |
95 /77L/min |
Maximum pressure |
1.2mpa |
Work pressure |
0.7mpa |
Water inlet caliber |
30mm |
Water to exit caliber |
20mm |
Triangle conveyer belt |
B1575mm |
Shandong Beijun Heavy Industry Co., Ltd.
Sales Manager:Tina Chen
Mob: 00861336537198
Wechat:00861336537198
Whatsapp:008618753711678
QQ:2072659532
E-mail:sales@beijungroup.com
Send Inquiry to This Supplier
