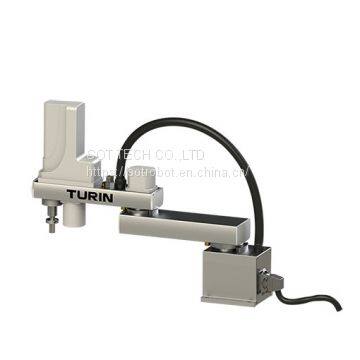

Four Axis Multi-joint scara industrial Robot for carry and assemble

Four Axis Multi-joint scara industrial Robot for carry and assemble

SCARA Robot STH100 end payload is 10KG, armreach 600/800/1000 are optional;bigger payload and super-long armreach to achieve better market diversification and customized demand;

using SHIMPO imported reducer and domestic reducer mix-up configuration, servo motor standard configuration for domestic listed companies famous brand INOVANCE;

optional imported DuomoChuan servo motor and drive; can meet different user speed and precision diversified demand.

Widely used in sorting, assembling, locking screws, grinding ,3 C industries, etc.

/scararobot/

Features

Robotic arm span is 600mm/800mm/1000mm, 10kg Payload. It can be installed on the ground or upside down flexibly.

SCAEA robot with compact and flexible structure, fast running speed, high transmission accuracy and low noise.

Robotic automation highly rigid arm design realizes high load and high speed in one package.

Available in 600mm ,800mm and 1000mm arm span; 10kg payload.

Adapt to A04 control cabinet.  Provide standard 12 input and  12 output custom IO. Users can define IO at background programs. Support serial port, network, USB and other interface forms.

SCARA robots are suitable for handling, palletizing, assembly, 3C and other application fields.

Use Italian design technology in mechanical and circuit, and take in ABB wiring layout technology in our robot body manufacturing. Use modular design to simplify wiring, double safety circuit design, and dust protection design for electricity cabinet.

More information go URL.

Support Single phase, 220V working voltage can be better adapted in Various environments. The robot body is with dual-circuit gas pipe and meets the welding and handling requirements.

Programmable robot body, cables are made of special cables for flexible robots.

Support External PLC, arc tracking and accessories (selection), visual software (selection), laser tracking software (selection), arc tracking software (selection), etc.

Support Chinese/English/Japanese/Polish.

SOT TECH CO.,LTD is the official representative of TURIN Robot company in overseas market and all overseas business issues of TURIN Robots will be handled by SOT Robotics. TURIN is a high-tech enterprise, focusing on welding robots, small 6 axis robots for handling, and high precision SCARA robots for pick and place applications.
