Multifunction Double Layer Jacketed Cooking Pot Series Tilt Type Sandwich Pot For Mess Hall

Product Description:

this product is a one-time stamping forming of the hemispherical stainless steel pot, you can use electric heating, steam heating, mixing mode using a special inclined transmission, the use of the planet stirrer and pot full contact, to achieve transmission revolution and autobiography of the Integer transmission ratio, so that no stirring pot dead angle. It is mainly used for stir-frying chafing dish base, Chili Sauce, mooncake stuffing, Red bean paste, and large-scale dining hall stir-frying. The equipment has good stir-frying effect, can not get the bottom, can stir-fry, can greatly improve production efficiency, reduce labor intensity. Electric heating breaks the way of cooking with open fire, has the characteristics of fast heating, no open fire, no smoke and dust, no harmful gas, no radiation to the surrounding environment, good safety and beautiful appearance, etc.

Product Type:Automatic Planet Wok, semi-automatic Planet Wok, Vertical Sandwich Wok, tilting Sandwich Wok, tilting with stirring Sandwich Wok.

Product Composition:

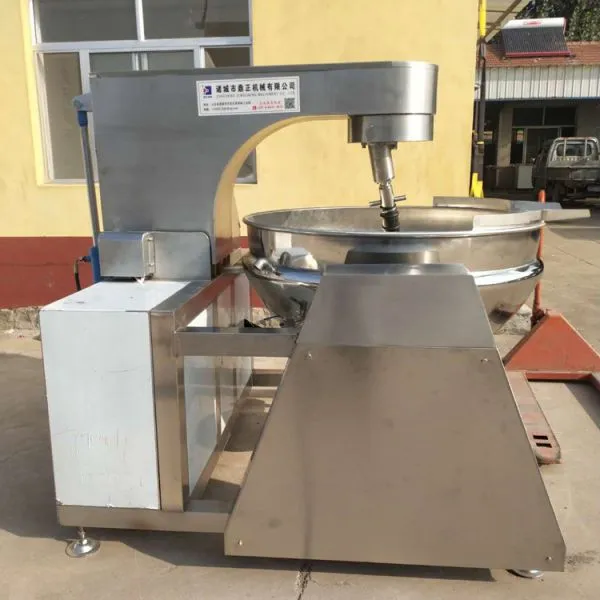

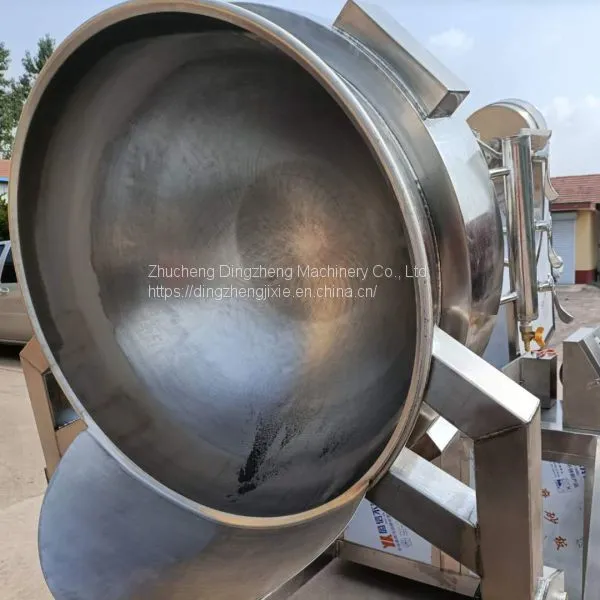

The planetary stirring pan is mainly composed of the pot body, frame body, stirring system, heating system, speed control transmission device, stirring shaft, pot body turnover system. 1. Pot Body: The pot body is a semi-spherical stainless steel one-time stamping, the overall roundness error is small, stirrer and pot body fitting high to avoid the occurrence of the phenomenon of the pot. 2. Agitator System: The agitator adopts a special inclined rotation, so that the planet is in full contact with the pot, so that the rotation and rotation of the integer rotation ratio, so that there is no mixing dead angle in the pot, mixing materials more evenly, the mixer uses a polytetrafluoroethylene scraper with a high degree of adhesion to the pot body, scraping a more thorough, not easy to produce the phenomenon of the pot. 3. Speed regulating drive: The stirring shaft uses the advanced rotating and sealing structure to make the pot clean and sanitary, and the speed regulating is driven by frequency conversion, running smoothly. 4. Pot Body turnover system: hydraulic lifting mode, to achieve mixing and the pot body after the separation of hydraulic tilt dumping, can tilt 90 degrees angle, dumping no dead angle, easy to clean, reduce labor intensity. 5. Model can be divided into 200L, 300L, 400L, 500L and other specifications according to actual volume. Non-conventional capacity products can be customized processing requirements. 6. Heating System: Using Steam (jacket heating (steam) , gas, electric heating oil, electromagnetic heating and other heating forms for customers to choose.
