The injection molding design process, much like all industrial design processes, deals primarily with the creation, look, and feel of a product. Excellent injection mold designs can mass-produce products with minimal molds and very few defects. Subpar injection mold designs result in weak, defective products that are often unusable to boot. That’s why top-notch injection molding design is imperative for new products. Great molds cut costs to a minimum and improve production quality to meet end-user expectations.
We promise |
All customer-centric, never for short-term profit, and sell long-term benefits |
We produce |
Mold, prototype, injection molding, product assembly, surface printing, spraying the surface integration |
Pls provide |
2D, 3D, samples, or the size of the multi-angle pictures |
Mould Time |
35 Days |
Product time |
7-15 Days |
Moud precision |
0.1mm |
Mould life |
300,000 to 1500,000 shots |
Producing Process |

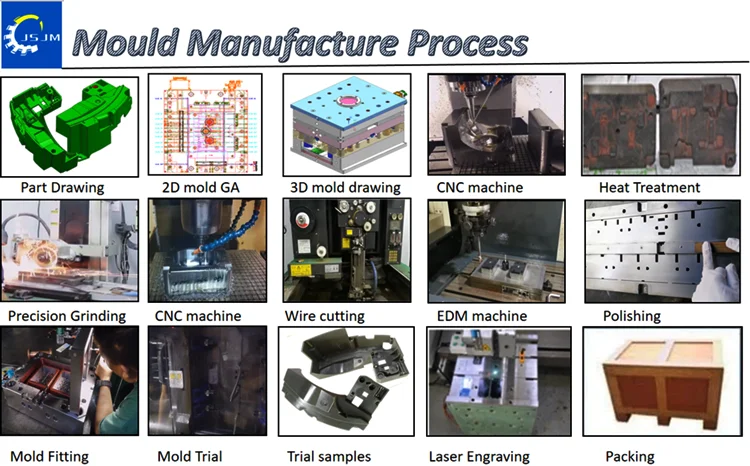

Audit drawings - mold flow analysis - design validation - Custom Materials - mold processing - core processing - electrode machining - Runner system processing - parts processing and procurement - machining acceptance - cavity surface treatment process - complex mode Die - The entire mold surface coating - Mounting plate - mold sample - sample test - sending samples |
Mould cavity |
One cavity, multi-cavity or same different products be made together |
Mould material |
P20,2738,2344,718,S136,8407,NAK80,SKD61,H13 |
Runner system |
Hot runner and cold runner |
Base material |
P20,2738,2344,718,S136,8407,NAK80,SKD61,H13 |
Finish |
Pitting the word, mirror finish, matte surface, striae |
Standard |
HASCO, DME or dependent upon |
Main thechnology |
Milling, grinding, CNC, EDM, wire cutting, carving, EDM, lathes, surface Finish, etc. |
Software |
CAD,PRO-E,UG Design Time: 1-3 days (normal circumstances) |
Product material |
ABS,PP,PC,PA6,PA66,TPU,POM,PBT,PVC,HIPS,PMMA,TPE,PC/ABS, TPV, TPO,T PR, EVA,HDPE,LDPE,CPVC,PVDF,PPSU.PPS. |
Quality system |
ISO9001:2015 |

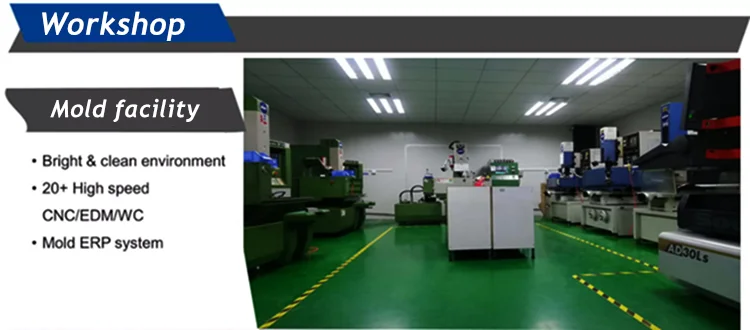

Equipment |
CNC,EDM,Cutting off Machine,plastic machinery,etc Plastic injection mould |
Guangdong jingshi jingmode technology co., LT
Contact:Hailee Lu
Tel:0769-82112011-615
Phone:+86-13790265349
Whatsapp:+8613790265349
Wetchat:136452672

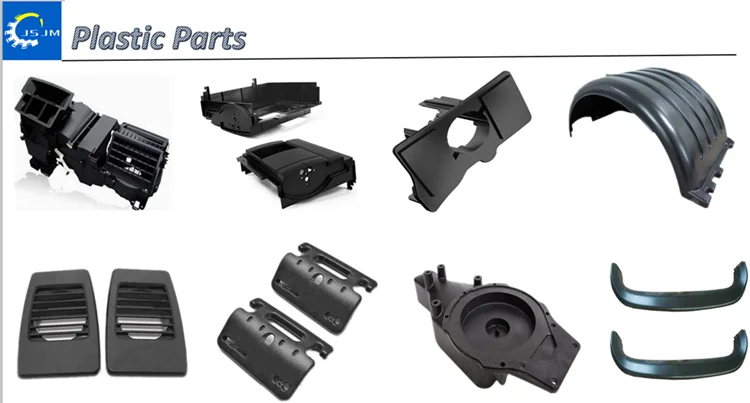

1.Q:WHICH KINDS OF PRODUCT CAN YOU DO?
A:Plastic injection moulding and mass production for plastics parts,also can assembly the products for you.
2.Q:WE DON'T HAVE THE 3D DRAWING,HOW CAN YOU START OUR PROJECT?
A:You can send the samples to us for ref or give your idea ,we have the professional design team can draw for you.
3.Q:HOW LONG DOES IT WILL TAKE MAKING MOULD?
A:It denpen on the complicate,normally it will take about 35 days.
4.Q:HOW ABOUT THE SAMPLES?
A:Once the mould finish we can finish the samples within 3 days and the samples are free.
5.Q:HOW ABOUT THE MOULD MODIFY?
A:If any dimensions different from your drawing after you received our samples,we can modify it for free and resend the samples.
6.Q:HOW ABOUT THE PROPERTY RIGHTS ABOUT THE PLASTIC INJECTION MOULD?
A:The mould belongs to the customer if you pay all the mould cost.
