Electromagnetic Buzzer Active 12V Pin Type Buzzer Piezo Passive Buzzer for Ring Small PCB Mountable

Electromagnetic Buzzer Active 12V Pin Type Buzzer Piezo Passive Buzzer for Ring Small PCB Mountable thumbnail-1
Electromagnetic Buzzer Active 12V Pin Type Buzzer Piezo Passive Buzzer for Ring Small PCB Mountable thumbnail-2
Electromagnetic Buzzer Active 12V Pin Type Buzzer Piezo Passive Buzzer for Ring Small PCB Mountable thumbnail-3
Electromagnetic Buzzer Active 12V Pin Type Buzzer Piezo Passive Buzzer for Ring Small PCB Mountable thumbnail-4
Electromagnetic Buzzer Active 12V Pin Type Buzzer Piezo Passive Buzzer for Ring Small PCB Mountable thumbnail-5

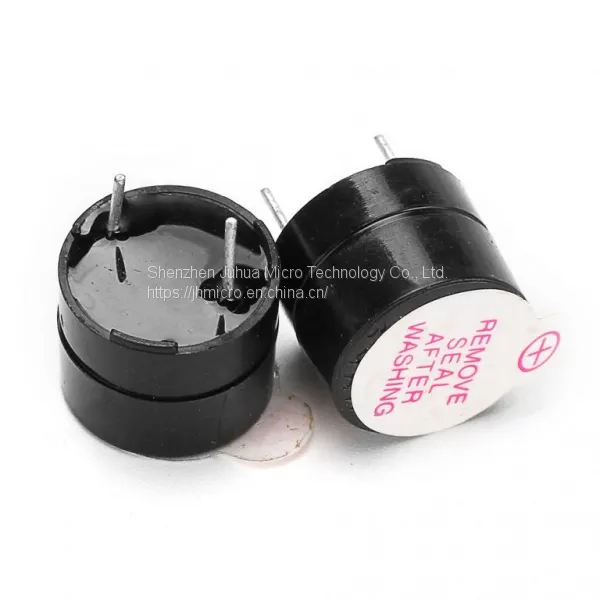

Electromagnetic Buzzer Active 12V Pin Type Buzzer Piezo Passive Buzzer for Ring Small PCB Mountable photo-1

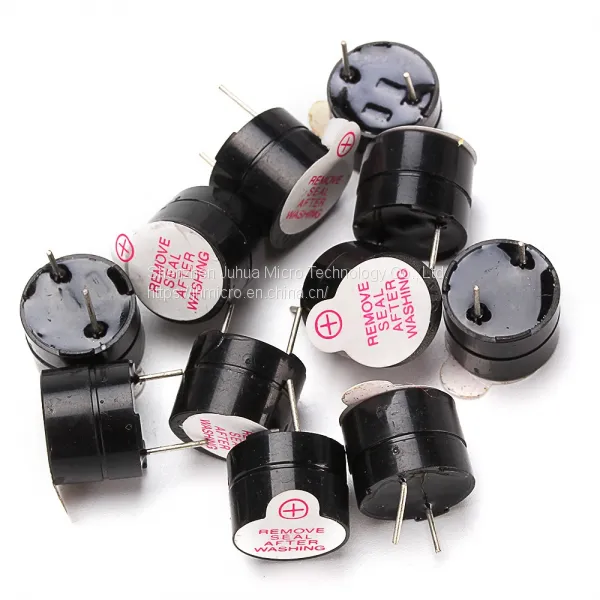

Electromagnetic Buzzer Active 12V Pin Type Buzzer Piezo Passive Buzzer for Ring Small PCB Mountable photo-2
Electromagnetic Buzzer Active 12V Pin Type Buzzer Piezo Passive Buzzer for Ring Small PCB Mountable photo-3
Electromagnetic Buzzer Active 12V Pin Type Buzzer Piezo Passive Buzzer for Ring Small PCB Mountable photo-4
Electromagnetic Buzzer Active 12V Pin Type Buzzer Piezo Passive Buzzer for Ring Small PCB Mountable photo-5
US$ 0.11 - 0.19 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
JHM
Place of Origin:
China
Model Number:
JHW1306
Contact Supplier Request Quote Chat Now
Shenzhen Juhua Micro Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name JHM
Place of Origin China
Model Number JHW1306
Type Buzzer
Product Description
Product Name
Electromagnetic Buzzer(Active)-XCMS12A
Material
PPS/LCP(high temperature resistant)
Dimension
Diameter: 12+/-0. 2mm, Height: 7. 5+/-0. 2
Min Sound Output at 10cm
80/85
Rated Voltage (v)
1. 5/3/5/12V
Operating Voltage(v)
4-7 / 8-15
Rated Current(MAX)mA
83 / 85
Storage Temperature℃
-20~+70
Frequency
2300+/-400Hz
Weight(g)
7

  • Product performance description

This is a Small PCB Mountable 3V Active Electromagnetic Buzzer. It is great to add Audio Alert to your electronic designs. It
operates on 3V supply, uses a coil element to generate an audible tone.

QUICK OVERVIEW
1. Input Voltage(Max.) : 3V
2. Resistance: 30 Ω
3. Resonance Frequency: 2048 Hz
4. Sound pressure(dB(A)/10cm)min.: 80
5. Body Size : 12 x 9.5mm
6. Pin Pitch: 6mm
7. External Material: Plastic;
8. Color: Black
Details Images
Active buzzer directly connected to the rated power supply (new buzzer are stated on the label) can be a continuous sound; rather passive and electromagnetic buzzer speaker is the same, you need to take in order to sound the audio output circuit.
The electromagnetic buzzer is composed of oscillator, the electromagnetic coil, magnets, diaphragm and shell vibration. After power on, the oscillator in buzzer can generate the audio signal current, which then make the electromagnetic coil generate the magnetic field.
An active buzzer will generate a tone using an internal oscillator, so all that is needed is a DC voltage. A passive buzzer requires an AC signal to make a sound. It is like an electromagnetic speaker, where a changing input signal produces the sound, rather than producing a tone automatically.
Universal passive buzzer, 16 ohm. Driving mode and the working principle and the same as ordinary loudspeaker. Passive buzzer  means need to add audio driver signal to make it sound, corresponding to the active buzzer. Active buzzer need only on the DC will beep,active buzzer internal oscillator!
Product Usage


    • Product usage introduction

A 5V Active Alarm Buzzer Module for Arduino is an audio signaling device, which may be mechanical, electromechanical, or
piezoelectric. Just like what you are viewing now, it is 5V DC Electronic Part Active Buzzer Module. Using top quality material,
it is durable in use. What is more, an active buzzer rings out as long as it is electrified.

  • Description of product use effect

Buzzer is an integration of electron acoustic structure, USES the dc voltage power supply, is widely used in computers, printers,
photocopiers, alarm, electronic toys, automotive electronic equipment, telephone, timer and other electronic products for voice

devices.The buzzer is divided into two types: Piezoelectric Buzzer and Electromagnetic Buzzer.

Packing&Shipping
Natural package or customized package acceptable
Company Introduction
Shenzhen Juhua Micro Technology Co., Ltd was founded in 2004, specilized in producing electrets condenser microphone, MEMs, Speaker, earphone module Buzzer etc., widly be used in communication products, like mobile, tablet, earphone, door bell, amd medical equipment, like hearing-aid, ecometer, etc.  We have set up a complete quality audit system, and the quality control center responsible for the IQC, ROHS, reliability testing, to manage the product quality of our company as a whole. While each Department in the company, we have a quality management Department, including analysis of customer complaints, quality engineering and quality statistics and analysis work.
Our Services & Strength
Research and development
1. with many imported production equipment.
2. combined with the scientific management approach, when compared with similar products on top.
3. enhanced product features and create a stable and high added value products.
4. building applied oriented team, together with customers to develop new projects.
FAQ
Q1
Q1: How To Order?
A: Step1: please tell us what model and quantity you need;
Step2: then we will make a PI for you to confirm the order details;
Step3: when we confirm delivery thing,can arrange the payment;
Step4: finally we deliver the goods within the stipulated time.

Q2: When will make delivery?
A:Delivery Time
-Sample Order:1-3 days after receipt of the full payment.
-Stock Order:3-7 days after receipt of the full payment.
-OEM Order:12-25 days after receipt of the deposit.

Q3 Could I have free sample?
A: If you need is our regular product, we could provide you free sample under 10pcs unit.

Q4 How can I believe that your product quality is good?
A: We strictly control every detail of production, and every product is inspected by our QC team before delivery.
