Direction valve is used to make the hydraulic system oil circuit on and off or change the direction of oil flow, so as to control the hydraulic actuator Pneumatic or stop, change the direction of movement of the actuator. On the basis of the old YUKEN series valves, the company has developed a variety of new products to meet the requirements of different customers under different working conditions.
MODEL INSTRUCTION
| Name | Model examples | Specifications |

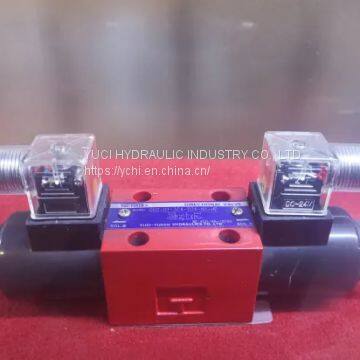

| Electromagnetic reversing valve | DSG-01-3C2-D24-N1-50 | 01/03 |

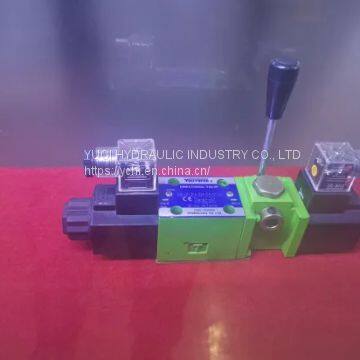

| Electromagnetic reversing valve with emergency handle | DSG-01-3C2-D24-CA-N1-10 | 01/03 |
| Position monitoring electromagnetic reversing valve | DSG-01-3C2-D24-SW-N2P-N1-HP | 01/03 |

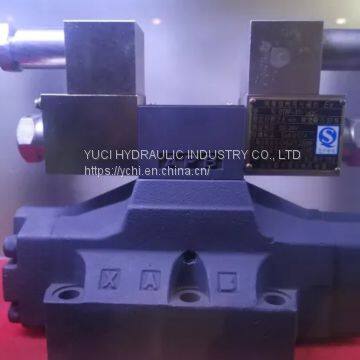

| Electro-hydraulic reversing valve | DSHG-04-3C2-C2-ET--N1-51 | 04/06 |
| Position monitoring electro-hydraulic reversing valve | DSHG-04-3C2-D24-ET-SW-N2P-N1-50 | 04/06 |
| Manual reversing valve | DMG/T-01-3C2-50 | 01/03/04/06/10 |
| Hydraulic check valve | CP(D)G/T-03-E-04-50 | 03/06/10 |
TECHNICAL FEATURE
01.Simple structure, small size, easy to assemble and disassembly
02.Wiring tube connection meets integrated design requirement
03.Low pressure loss and high reliability
04.Non-impact type reversing valve has small commutation impact and low noise
05.With emergency handle reversing valve can be used in emergency situation
06.With position monitoring reversing valve, the position of the spool can be monitored in real time
SPECIFICATION
| Model | Maximum working pressure(MPa) | Maximum usage flow (L/min) |
| DSG-01 | 31.5 | 63 |
| DSG-03 | 31.5 | 120 |
| DSHG-03 | 25 | 160 |
| DSHG-04 | 31.5 | 300 |
| DSHG-06 | 31.5 | 500 |
| DSHG-10 | 31.5 | 1100 |
| DMG/T-01/03/04/06/10 | 21~31.5 | 35~1100 |
| DYC-15/20/32 | 31.5 | 100~500 |
| CIT-02/03/06/10 | 25 | 16~230 |
| CRG03/06/10 | 25 | 16~250 |
APPLICATION AREA
YUKEN series valves are mainly used in medium and high pressure machinery industry such as construction machinery, sanitation machinery, coal mine and injection molding machine.
