Instant Vision Measurement System/video Measuring Machine/ultra-precise Automated Video Measurement

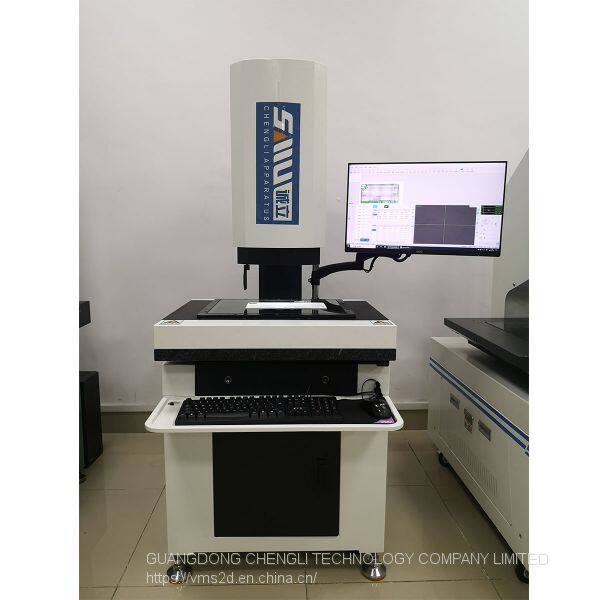

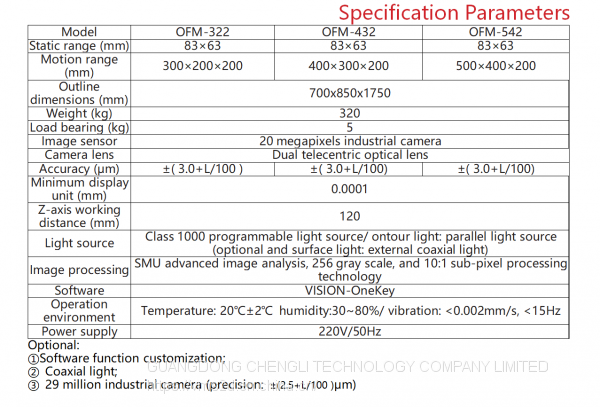

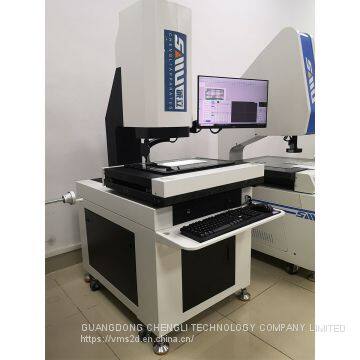

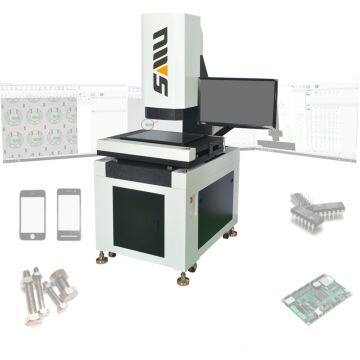

SMU-OM-432 Instrument Introduction

Based on the traditional imaging measurement technology, the advanced image splicing algorithm is integrated, which integrates large field of vision and travel, the splicing precision reaches 2μm, and the measurement efficiency is increased by more than 21 times.

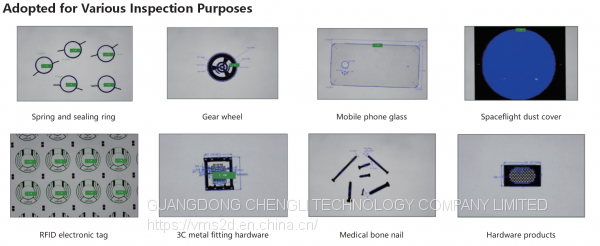

Application Fields

● Electronic manufacturing

● Automobile manufacture

● Machining

● Liquid crystal display

● Medical devices

● Industrial materials

●Aerospace and aviation

● Precision hardware

● New energy

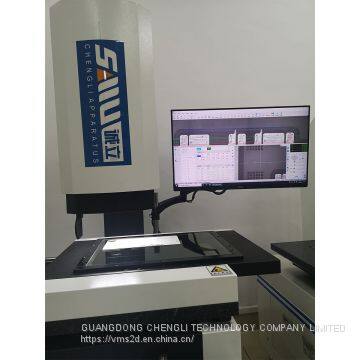

Software Characteristics

Fully independently developed, the software interface is concise, powerful and easy to learn; adopt the distortion correction technology developed by our Company to ensure the stable and accurate measurement results at every position and angle of the field of vision; and the image splicing technology developed by our Company ensures that the splicing error is less than 0.003mm.

(Special software functions are customizable)

Measure More Than 100 Dimensions in One Second

In the past, the more the measurement position, the longer the measurement time, while IVT-VISION can measure more than 100 dimensions at the same time, and it only takes 1 second to complete the measurement.

It can greatly shorten the working hours required for measurement.

Anyone Can Operate It Easily

The user interface is simple and easy to understand, it just needs to click the button on the screen, and anyone can obtain stable measurement results.

In addition, the operation steps can be seen on the screen and anyone can set them up easily.

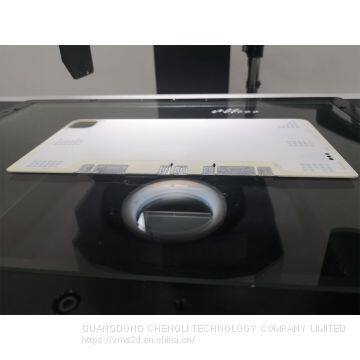

No Need to Locate Measurement Object and Origin

Keep the shape of the measuring object in mind and perform measurement after automatic inspection of the position and orientation of the object placed on the measurement platform. There is no need to locate or use fixed fixture.

No Deviation Due to Focus Adjustment

Equipped with optical lens with special design for large depth of field. In addition, equipped with auto-focusing function, aiming at the measuring object which cannot focus at one time due to the uneven surface, it can focus automatically according to the measuring position, so as to eliminate the focusing error caused by different operators.

Automatic matching

The products of the same category are programmed once, stored permanently, automatically matched when measuring, and can be controlled in the whole process according to the input tolerance during programming.

Automatic Measurement

For workpieces that require repeated measurements many times, automatic repetition measurement pattern can be used. Or when cooperating with the robotic arm, the measurement beat can be set automatically.

Simple Calibration

Only one function calibration key is needed for multi-angle, omni-directional, full field of view calibration to ensure the measurement accuracy.

Easy to Use

Humanized and intelligent software design enables the user easy to learn, easy to use, easy to handle without too much operation.

Measurement Function

Point, line, circle, arc, angle, point-line distance, line-line distance, circle distance and other two-dimensional measurement.

Contour Scan

Scan contour fast and export DXF file.
