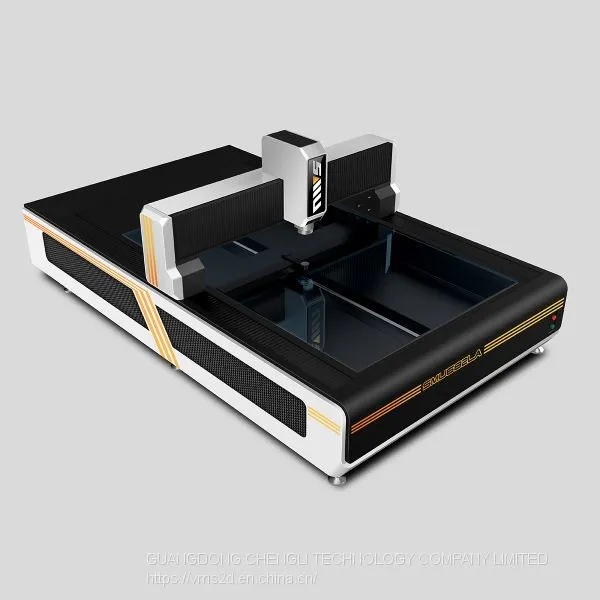

SMU-6080LA CNC Bridge-type Video Measuring Machine

Features:

* Independently research and development of fully-automatic measurement software, automatic focusing, automatic edge detection, powerful programming and automatic measurement functions, easy to operate

* Long travel, wide measuring range

* The machine can be operated through the joystick or software programming

* The program-controlled data processing is helpful for large-scale workpiece measurement

* The servo motor is controlled on the X, y and Z axis, with fast positioning speed, high accuracy and stable operation

* The self-developed embedded module control system integrates the advanced control system into the instrument to ensure a more stable operation

* The five-ring-eight -section surface cold light source for sophisticated workpiece, and the laser indicator can quickly locate the position of the workpiece

Application:

The long stroke CNC video measurement system adopts servo control technology and self-developed full-automatic measurement software, which is suitable for large-scale, efficient and accurate quality measurement of precision parts inspection. Widely used in machinery, electronics, hardware, plastics and other fields

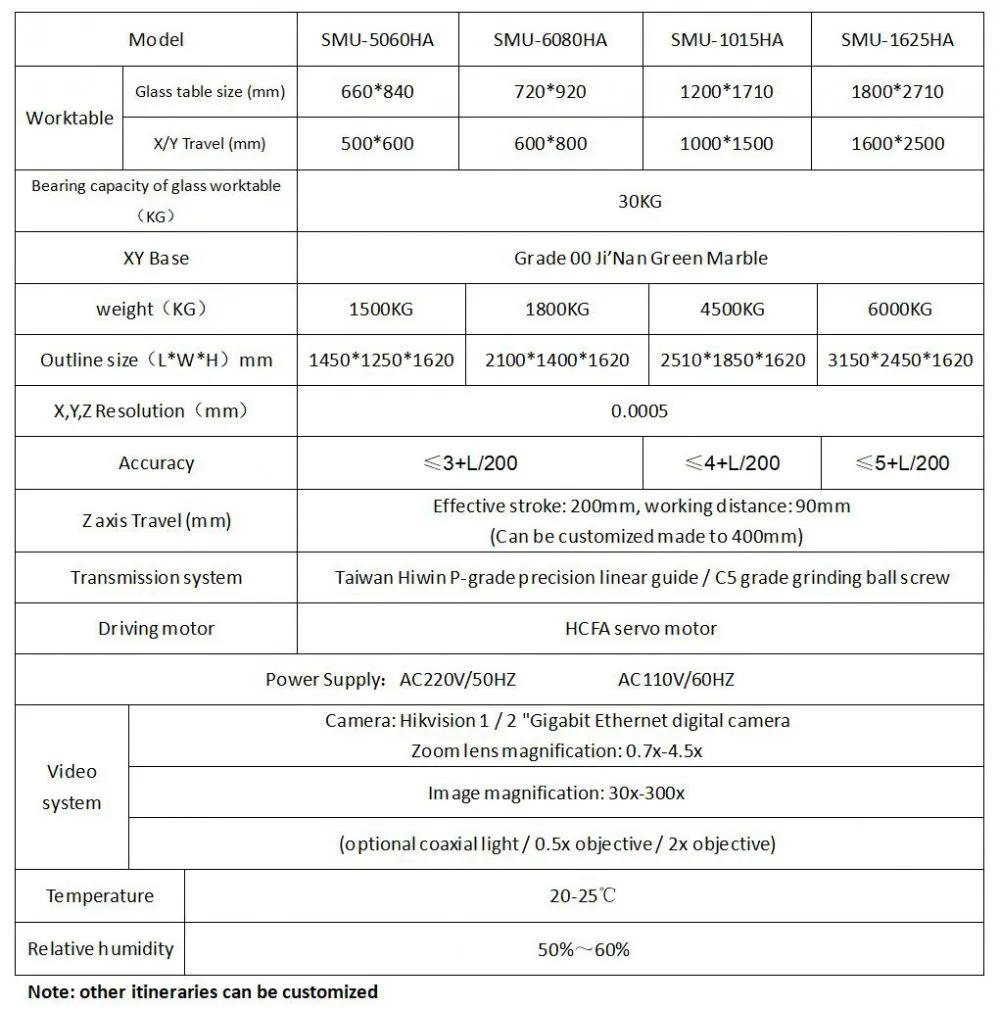

Specifications:

Note: the above parameters are standard configuration. For non-standard configuration, please consult the customer service team

Note: the object view is equal to the length of the diagonal
