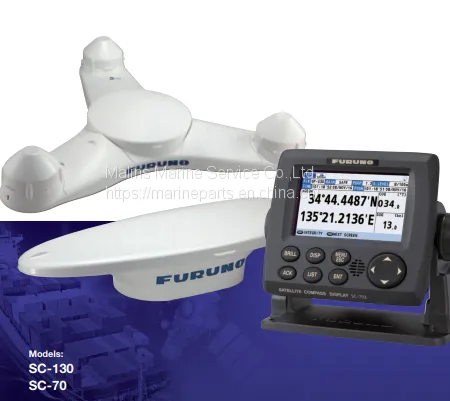

Help CenterFURUNO SC-130 SATELLITE COMPASS(GPS COMPASS)
Related Products
-
FURUNO SC-70 SATELLITE COMPASS(GPS COMPASS)NegotiableMOQ: 1 Piece -
NSR NGC-3000 GNSS COMPASSNegotiableMOQ: 1 Piece
-
NSR NFG100 COMPASS FLUXGATENegotiableMOQ: 1 Piece
-
Sperry Type2060 Magnetic Compass Overhaul KitNegotiableMOQ: 1 Piece
-
SARACOM MC-180 MC-18 Magnetic Compass Overhaul KitNegotiableMOQ: 1 Piece
Features:
· SC-130 features a Tri-sensor antenna that provides a high system accuracy for the heading of your vessel
Provides highly accurate heading data for Autopilot, Radar, ARPA, Scanning Sonar, Current Indicator, Chart Plotter, ECDIS and Autopilot
● 0.25° (with SC-130)
Ideal for medium to large vessels navigating in crowded ports and making precise maneuvers, such as berthing.
● 0.4° (with SC-70)
Ideal for small to medium boats requiring highly accurate heading .
· Utilizes GNSS such as GPS, Galileo and GLONASS for high precision
・SBAS compatible (EGNOS,WAAS, MSAS)
・Provide precise data for SOG, COG, ROT and L/L
・Eliminating the problem of not having enough satellites at hand by using multiple types of satellites
· Speed on 3 axis (Bow, stern and longitudinal) for safe navigating and berthing· Type-approved as THD, GPS and ROTI*. Complying with following requirements (For Solas Vessels)
IMO MSC.116(73) •IMO MSC.112(73) •IMO MSC.526(13) •IMO A.694(17)
IMO MSC.97(73) •IMO MSC.191(79) •IMO MSC.302(87) •IEC 60945 Ed.4
IEC 62288 Ed.2 •IEC 61162-1 Ed. 4 •IEC 61162-2 Ed.1 •IEC 61162-450 Ed.1
IEC 61108-1 Ed.2 •ISO 22090-3 Ed.2 •ISO 20672 Ed.1
* requires the RD-50 as a display unit
· Easily integrated into the existing shipboard network via Ethernet· Rapid follow-up rate 40°/S
・Twice the IMO high speed craft requirement, 20°/s
· Maintenance free and no recurring cost as there are no mechanical parts· Super short starting time - 90 seconds
・Once the power is on, it takes about 90 seconds only to start
(The starting time will slightly differ depending on the equipment)
· Easy to retrofit by using existing antenna cabling
・For SC-50/55/60/110/120 (The LAN_CNV option Kit is necessary)
· Precision Pitch/Roll data in Analog and Digital formats for vessel stabilization, SONAR, etc.
