Product Details
Use | Fish | |
Material | PE | |
Place of Origin | China |
Product Description
Circular Fish Cage | ||||
Cage Model | AF200C | AF250C | AF315C | AF400C |
Cage Circumference(m) | 30 to 60 | 40 to 80 | 60 to 120 | 90 to 160 |
Depth(m) | -5 to -60 | -5 to -60 | -5 to -60 | -5 to -60 |
Floating Pipe Dia(mm) | 200 | 250 | 315 | 400 |
Handrail Pipe Dia(mm) | 90 | 110 | 125 | 125 |
Handrail Upright Dia(mm) | 110 | 125 | 125 | 125 |
Backet Separation(m) | 2 | 2 | 2 | 2 |
Net | Nylon/PE/PP | Nylon/PE/PP | Nylon/PE/PP | Nylon/PE/PP |
Material Used | PE100 | PE100 | PE100 | PE100 |
Styrofoam Filling | Option | Option | Option | Option |
Available with Walkway Decking | Option | Option | Option | Option |
Introduction Of Fish Cage

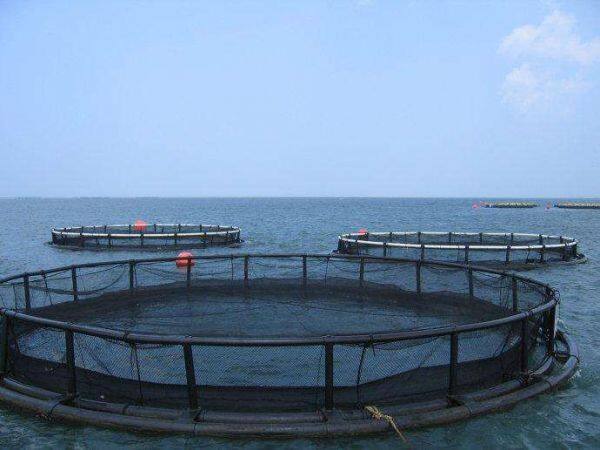

Deep-water cages, also called offshore cages, are large-scale cages with a water depth of more than 15 meters and open coastal waters.
Deepwater cage culture has a large capacity and is a marine breeding facility with strong resistance to wind and waves and ocean currents. Deepwater cages are expanding breeding
It has shown obvious advantages in sea areas, alleviating coastal environmental pressures, improving the quality of farmed fish, and increasing the benefits of farming.
At present, the types of net cages in the world include floating net cages, lifting net cages, sunken net cages and semi-submerged net cages according to different operating methods.
Depending on the structure of the cage, there are round, square, polygonal and tapered. The material of the frame is also plastic, metal and concrete.
The same form. In recent years, HDPE (High Density Polyethylene) is used as the raw material for cages worldwide.
Square Fish Cage | ||||||
Cage Model | AF200S1 | AF200S2 | AF250S01 | AF250S2 | AF315S1 | AF315S2 |
Measures(m) | 5x5 | 7x7 | 7x7 | 9x9 | 11x11 | 13x13 |
Floating Pipe Dia(mm) | 200 | 200 | 250 | 250 | 315 | 315 |
Handrail Pipe Dia(mm) | 90 | 90 | 110 | 110 | 125 | 125 |
Handrail Upright Dia (mm) | 110 | 110 | 125 | 125 | 125 | 125 |
Backet Separation (m) | 2 | 2 | 2 | 2 | 2 | 2 |
Net | Nylon/PE/PP | Nylon/PE/PP | Nylon/PE/PP | Nylon/PE/PP | Nylon/PE/PP | Nylon/PE/PP |
Material Used | PE100 | PE100 | PE100 | PE100 | PE100 | PE100 |
Styrofoam Filling | Option | Option | Option | Option | Option | Option |
Available with Walkway Decking | Option | Option | Option | Option | Option | Option |
Advantage
1、 Corrosion resistance
Polyethylene pipe (PE pipe) is an inert material, which can resist the corrosion of various chemical media, without electrochemical corrosion, without anti-corrosion coating, and can be used in all water areas.
2、 Good hygiene
PE pipe processing does not add heavy metal salt stabilizer, no scaling, no bacteria, no water pollution.
3、 Long service life of pipeline
Mortar wear test shows that the wear resistance of PE pipe is more than 4 times of that of steel pipe, and its service life can be more than 50 years.
4、 Reliable connectivity
The strength of the joint is higher than that of the base metal itself.
5、 Convenient and fast construction
The quality of pipeline is light, the welding process is simple, the construction is convenient, the construction time of hot-melt connection is greatly reduced, and the comprehensive cost is low.
6、 Beautiful
There are two kinds of fish world cage, square and round, mainly black blue stripe PE pipe. The pipe fittings are orange and black, which have a sharp contrast with the water surface, and the visual appearance is beautiful and atmospheric.
