Home > Products > Automatic Gate > KS6002 Automatic Sliding Gate Motor Automatic door system factory Automatic Sliding Gate Operator wholesale
KS6002 Automatic Sliding Gate Motor Automatic door system factory Automatic Sliding Gate Operator wholesale
- 10000 Set / Sets per Month
- NINGBO,SHANGHAI,GUANGZHOU
- T/T
Product Details
Brand Name: | KAST | Place of Origin: | China |
Product Description

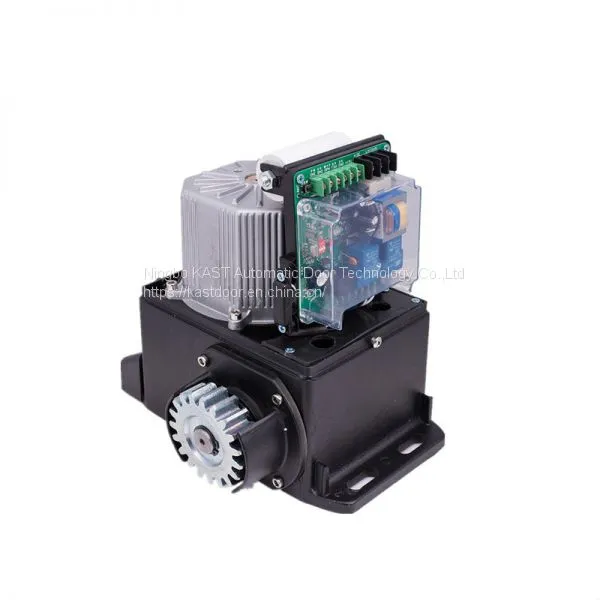

KS6002 Automatic Sliding Gate Motor Automatic door system factory Automatic Sliding Gate Operator wholesale
The series sliding gate motor are designed for automation of sliding gates up to a maximum weight of 500kg to 2000kg, featuring a control board with adjustable speed,force output,photocell terminals.They can be used for domestic and commercial use. They have a modern design, suitable for any environment. These motors have several features that make them resistant, strong, quiet and easy to install
Products features,
*QUIET & POWERFUL SERIES OF MOTOR-The integrated DC motor drives the gate opener smoothly while producing less than 58dB noise
*AUTOMATIC CLOSE-Featuring an auto-close option, this slide gate opener can be set to close in 12, 24, or 36 seconds after it opens; you can add extra 25pcs remotes to control this system for convenience.
*DURABLE WITH UNPARALLELED SAFETY-Constructed with aluminum base, copper worm-gear for durability; . RF Rolling Code Technology prevents your remote code from being accessible to others;
*SAFTEY- When obstacle in opening, gate will stop and when obstacle in closing, the door will reverse.; In the closing process, when beam of light barrier is covered, the gate will open immediately, to protect pedstrain security.

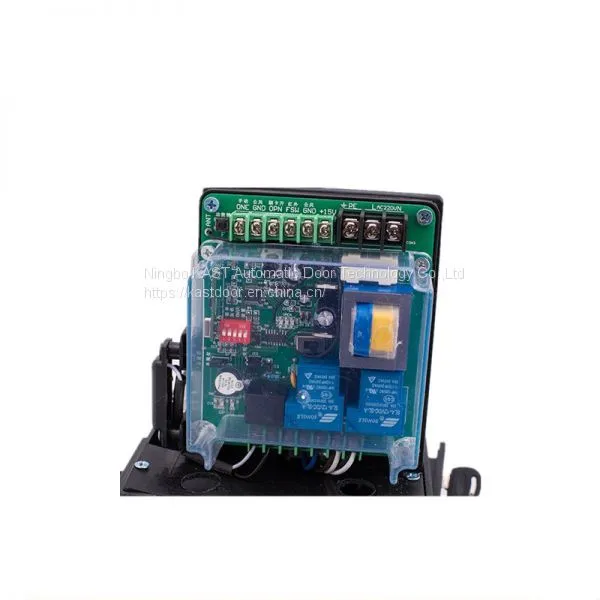

*INTELLIGENT CONTROL BOARD -- Soft start and slow stop function; Stop at any position; Self-learning of the door working; Easy to program and adjust the controller; Built in 433.93Mhz radio receiver; Pedstrain model faciliate the passagn of pedstrain,etc
Automatic Swing Gate Operator Technical Datas,
KS2805 | KS3808 | KS4001 | KS5505 | KS6002 | |
Power supply | 110V-240V AC,50hz/60hz | 110V-240V AC,50hz/60hz | 110V-240V AC,50hz/60hz | 110V-240V AC,50hz/60hz | 110V-240V AC,50hz/60hz |
Motor power | 280W | 380W | 400W | 550W | 600W |
Gate moving speed | 11-13m/min | 11-13m/min | 11-13m/min | 11-13m/min | 11-13m/min |
Output torque | 16N.m | 18N.m | 22N.m | 32N.m | 40N.m |
Output shaft | 46mm | 50mm | 50mm | 56mm | 56mm |
Max gate weight | 500Kg | 800Kg | 1000Kg | 1500KG | 2000Kg |
Remote control Frequency | 433.92 MHz | ||||
Remote control distance | ≥30m | ||||
Remote control mode | Single button mode/ Three button mode | ||||
Limit switch | Magnetic limit/ Spring limit switch | ||||
Noise | ≤58dB | ≤58dB | ≤58dB | ≤50dB | ≤58dB |
Working temperature | -20°C - +50°C | ||||
Package weight | 10Kg | 11Kg | 14 Kg | 16.5KG | 17Kg |
Automatic Gate Controller Functions,
Soft start and soft stop | yes |
Working time(adjustable) | 5-100s |
Pause time(adjustable) | 5-100s |
Stop speed (adjustable) | yes |
Auto close | yes |
Auto reverse when meet obstacle | yes |
Self-learning function | yes |
Motor brake | yes |
Eletric lock | yes |
Transmitter stored | 25pcs |
External output | 24V |
External switch | One button loop/three buttons |
Photocell protection | yes |
Motor running direction(adjustable) | yes |
Resistance when open and close | yes |
Pedestrian model | yes |
Manual release | yes |
These sliding gate motors have several features that make them resistant, strong, quiet and easy to install. If you need, welcome to contact us to know more.
