Help CenterFURUNO GP-170 GPS
Related Products
Features:
Ideal position sensor for Radar, AIS, ECDIS, autopilot, echo sounder and other navigation and communications equipment
Full compliance with IMO MSC. 112 (73) and IEC 61108-1: performance and testing standards for GPS receiver
Enhanced stability and precision in position fixing thanks to a highly sensitive antenna unit
Enhanced noise rejection capabilities are incorporated in the GPS receiver, delivering anti-jamming function as well as high level of tolerance towards multi-path mitigation*

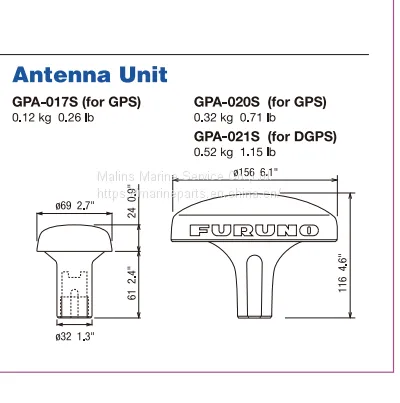

* the Antenna unit GPA-020S or GPA-021S is required
Augmentation to enhance precision by utilizing SBAS (Satellite-Based Augmentation System) and DGPS (an optional DGPS radio beacon receiver as well as GPA-021S antenna unit required)
Fully complies with IMO MSC. 114 (73) and IEC 61108-4: performance and testing standards for DGPS radio beacon receiver
10 Hz position update rate (position updated every 0.1 second) making steady own ship position tracking possible
USB port available on the front panel
Routing data, menu setting, user setting can be exported/imported through USB jump drives
Dual configuration for back-up purpose to ensure system availability
Information about waypoints, route and other data set by the operators on the one unit can be shared with the other unit for functional back-up
LAN interface available for efficient network integration into a bridge system, fully complying with IEC 61162-450, the new mandatory Ethernet communication standard

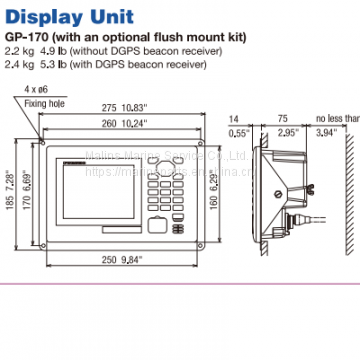

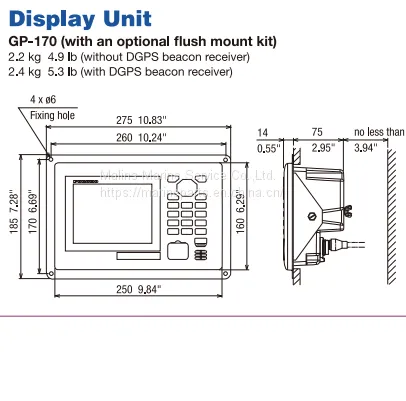

5.7” color LCD (with 640 x 480 pixels) for data presentation
Simplified menu operation
The operator can navigate through the menu tree either by pressing the cursor pad or pressing the corresponding numbers on the numeric keypad to the menu items
Enhanced route planning/management function available
1) Comprehensive range of voyage information to be incorporated in routes
2) Streamlined route creation through combination with an external PC
3) Sharing the active route information with ECDIS to supplement the ECDIS route monitoring capability
