Mia Round Pipe Fan Reversible Installation CK160

Mia Round Pipe Fan Reversible Installation CK160 thumbnail-1
Mia Round Pipe Fan Reversible Installation CK160 thumbnail-2
Mia Round Pipe Fan Reversible Installation CK160 thumbnail-3
Mia Round Pipe Fan Reversible Installation CK160 thumbnail-4
Mia Round Pipe Fan Reversible Installation CK160 thumbnail-5
Mia Round Pipe Fan Reversible Installation CK160 photo-1
Mia Round Pipe Fan Reversible Installation CK160 photo-2
Mia Round Pipe Fan Reversible Installation CK160 photo-3
Mia Round Pipe Fan Reversible Installation CK160 photo-4
Mia Round Pipe Fan Reversible Installation CK160 photo-5
US$ 50 - 100 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
MIA
Place of Origin:
China
Model Number:
CK-160
Contact Supplier Request Quote Chat Now
Suzhou Mia Intelligent Technology Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MIA
Place of Origin China
Model Number CK-160
Certification CE, ROHS
Overview
Quick Details

  • Warranty:

  • More than 5 Years, 10 Years

  • After-sale Service:

  • Online Technical Support, Free spare parts

  • Project Solution Capability:

  • others

  • Place of Origin:

  • Jiangsu, China

  • Brand Name:

  • MIA

  • Model Number:

  • CK-160

  • Product name:

  • MIA Air To Air Ventilator

  • Material:

  • SGCC

  • Feature:

  • Customized

  • Application:

  • Residential, Office Room, etc, HOTEL, villa, APARTMENT, OFFICE BUILDING, HOSPITAL, school, mall, Sports venues, Leisure Facilities, supermarket, WAREHOUSE, WORKSHOP, farmhouse, Courtyard

  • Usage:

  • HVAC System Pipe Flexible Connect

  • Shape:

  • round

  • Airflow:

  • 500m3/h

  • Function:

  • Air Outlet

  • Certificate:

  • RoHS CE CCC ISO
Supply Ability

  • Supply Ability:

  • 10000 Set/Sets per Month

Packaging & Delivery

  • Packaging Details

  • Packaging Details Carton package with wooden box for safe export

  • Port

  • Shanghai Port

 Packaging & Delivery



Packaging Details     Standard export package

  • Delivery Time             15-20 days after payment







Mia residential room fresh air ventilator Duct Inline Fans Vent Blower CK160

Model Voltage frequency Current Power volume pressure noise Speed capacitance INS IP Φd Weight
CK100 230V/50Hz 0.18A 41W 260m³/h 340Pa 36dB(A) 1730rpm 3μF F IP44 100mm 2.9kg
CK125 230V/50Hz 0.18A 40W 350m³/h 300Pa 36dB(A) 1640rpm 3μF F IP44 125mm 2.9kg
CK150 230V/50Hz 0.27A 62W 500m³/h 340Pa 42dB(A) 2540rpm 2μF F IP44 150mm 3.2kg
CK160 230V/50Hz 0.27A 62W 500m³/h 340Pa 42dB(A) 2540rpm 2μF F IP44 160mm 3.2kg
CK200 230V/50Hz 0.51A 115W 900m³/h 340Pa 47dB(A) 2580rpm 4μF F IP44 200mm 4.6kg
CK250 230V/50Hz 0.50A 115W 900m³/h 380Pa 47dB(A) 2580rpm 4μF F IP44 250mm 4.6kg
CK315 230V/50Hz 0.84A 190W 1400m³/h 580 47dB(A) 2465rpm 5μF F IP44 315mm 6.1kg



Mia round pipe fan reversible installation CK160



Product Description

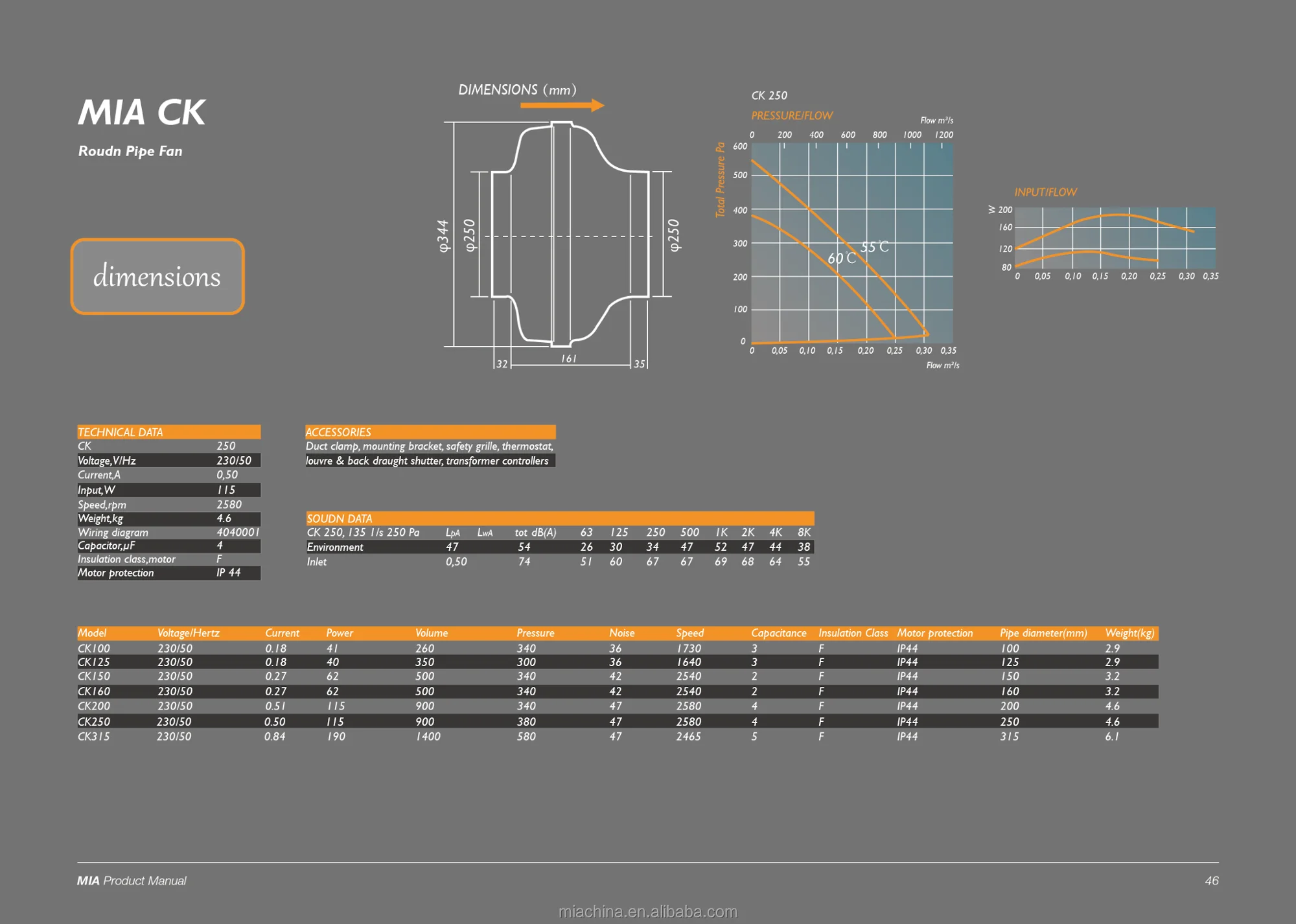

 Specifications of ventilators



Mia round pipe fan reversible installation CK160Mia round pipe fan reversible installation CK160Mia round pipe fan reversible installation CK160Mia round pipe fan reversible installation CK160



How to choose the suitable ventilators



We calculate the require airflow per hour according to the number of people, the size of the room and the amount of fresh air per hour and than choose the suitable fresh air ventilator.



Mia round pipe fan reversible installation CK160



Fresh AirFlow Calculation Formula



1. Fresh Airflow Standard: 30m3/h/person(Different environment has different standard)=Number of people × 30m3/h

2.According to the size of room and fresh air change rate per hour=Room size × Floor height × Fresh air change rate (times/m3/h)



Installation conditions of fresh air equipment



1.Keep away from the rest area

2.Prevent exposure and rain

3.Duct layout is reasonable











Packaging & Shipping

Shipped in 15-20 days after payment

Standard exporting carton. Wooden or paper box packing if necessary

Customized packing is available



Mia round pipe fan reversible installation CK160


Product Tags: Ventilation , Air Conditioning , Ventilation system , Round pipe duct fan , Unidirectional , Air recuperator
