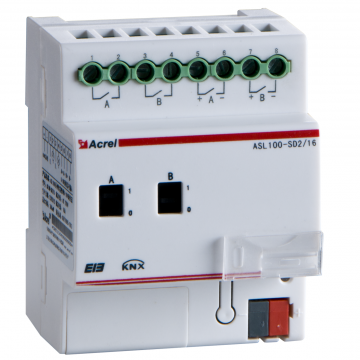

ASL100-SD2/16 Acrel 300286.SZ Centralized Control 0-10V Dimming Driver photo-2
ASL100-SD2/16 Acrel 300286.SZ Centralized Control 0-10V Dimming Driver photo-3
ASL100-SD2/16 Acrel 300286.SZ Centralized Control 0-10V Dimming Driver photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Main Markets:
Southeast Asia
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Overview
0-10V dimming driver controls the load on-off as the diming module and outputs 0-10V dimming signals. The dimmer receives the con
trol message from the bus and then executes the corresponding actions according to the set parameters. With ETS programming, the d
immer can realize multiple control functions. The high voltage line is not changed and the lighting control is changed.
Technical Parameters
Power supply feature
KNX bus feeder
DC21~30V
Power supply current
＜12mA
Power consumption
＜360mW
Load current
＜16A
External connection
KNX-TP1
Use twisted-pair cable conforming to KNX standard.
Wiring terminal at load end
Terminating with 0.5nm~0.6nm torque
Operation and display interface
Programming key and relevant indicator
LED indicator is in red when waiting for programming and is in green during and after programming.
Temperature range
Operating temperature
-5℃~+45℃
Storage temperature
-25℃~+55℃
Installation
Standard 35mm track installation
Manual Control
Auto Control
Scene Control
Time Control
Centralized Control
