DIN 3352 F4 NRS Ductile Iron Gate Valve , Sluice Gate Valve,rubber Seal Gate Valve
US$ 30 - 800
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Yake
Place of Origin:
China
Model Number:
Z45X-16Q
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin China
Delivery Detail:
8 days
Related Products
-
Aluminum Bronze Disc Manual Wafer Lever Handle Butterfly Valve DN50-DN1200 Ship Butterly ValveUS$ 30 - 2000MOQ: 1 Set -
Pneumatic Actuator/Electrical Actuator Wafer SS304 Disc Butterfly ValveUS$ 35 - 500MOQ: 1 Set
-
Cast Iron Wafer Type Butterfly Check Valve Ductile Iron CF8 Disc Check ValveUS$ 15 - 200MOQ: 1 Set
-
Wafer Type Single Plate Check Valve, Drink Water Stainless Steel Check ValveUS$ 15 - 200MOQ: 1 Set
-
Universal Flange Wafer Handle Butterfly Valve ISO5211 Standard ANSI B16.1 Flange StandardUS$ 5 - 200MOQ: 1 Set
Brand Name
Yake
Place of Origin
China
Model Number
Z45X-16Q
Material
Casting
Application
General
Structure
Gate
Standard or Nonstandard
Standard
Pressure
Medium Pressure
Power
Manual
Port Size
DN50-DN1000
Media
Water
Temperature of Media
Medium Temperature
DIN 3352 F4 NRS Ductile Iron Gate Valve , Sluice Gate Valve,rubber seal gate valve
Products Description:
1. Nominal diameter: DN40~DN1000 (2"~40").
2. Suitable media: Water.oil etc
3. Flange: DIN2501/EN1092-2 PN10/16/25.
4. Inspect %Test: API 598/ISO 5208/EN12226-1.
5. Face-to-face conform to DIN3352/DIN3202 F4(ISO5752 Series14)/EN558-1 Series14.
6. Working pressure: PN10/PN16/PN25 or 10Bar/16Bar/25Bar.
7. Operator: Cap top, hand wheel, Gear box, electric actuator, etc.
8. Working temperature: -20 to 120 centigrade. (EPDM: -20 to 120, NBR: -10 to 80).

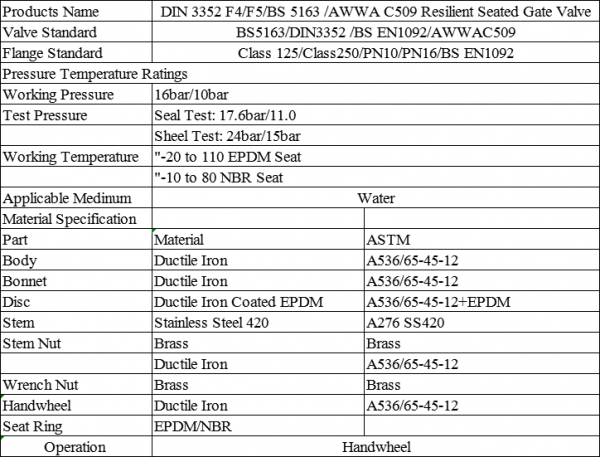

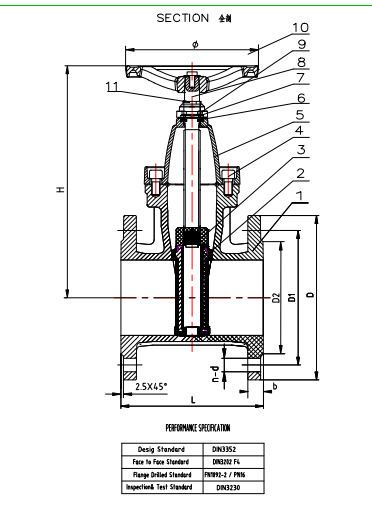

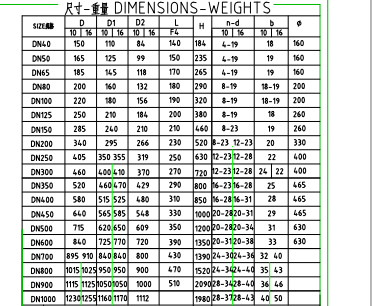

Technical Data:

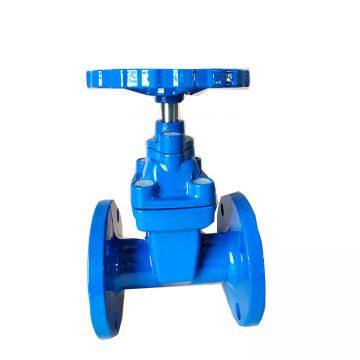

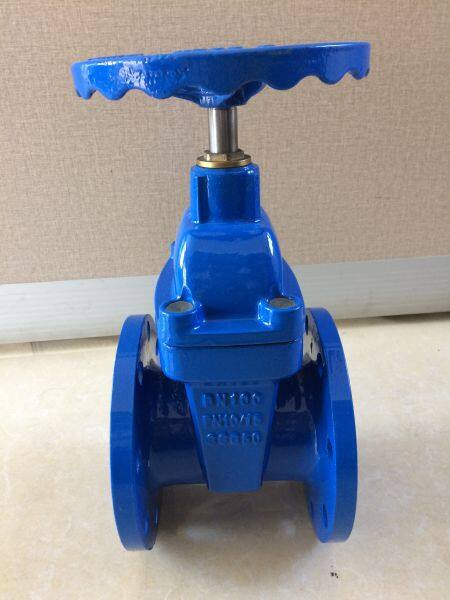

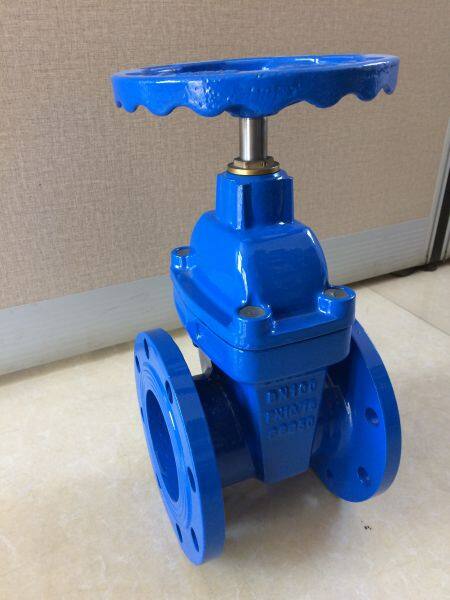

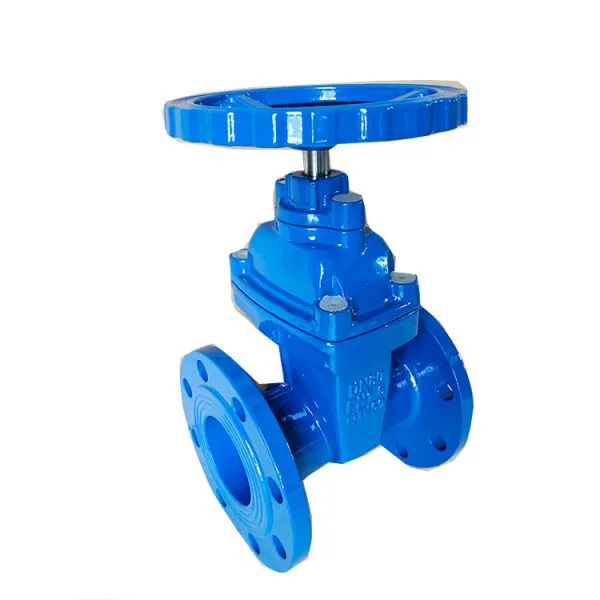

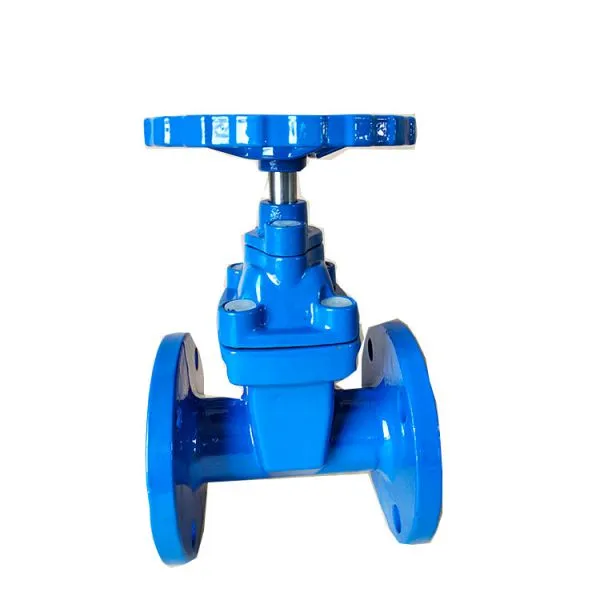

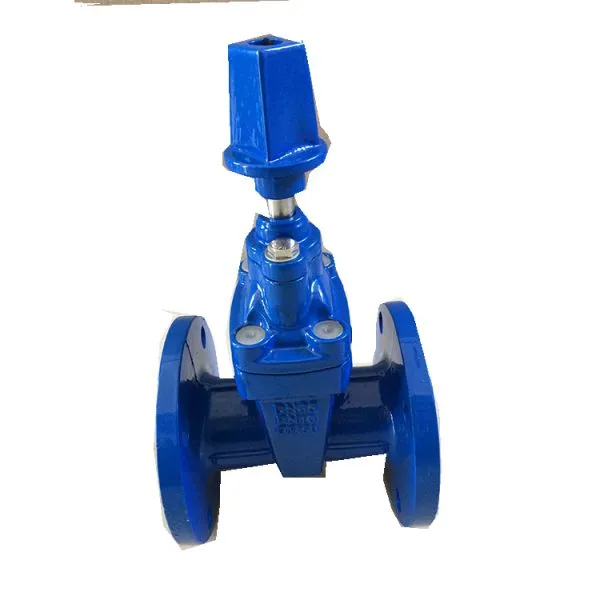

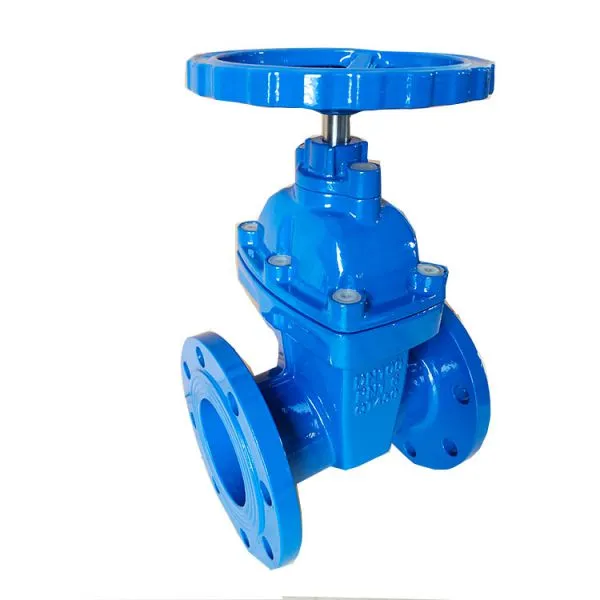

Products Display:

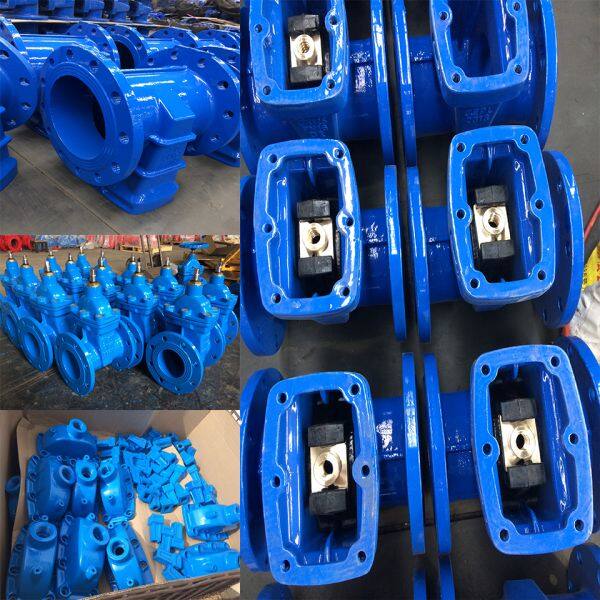

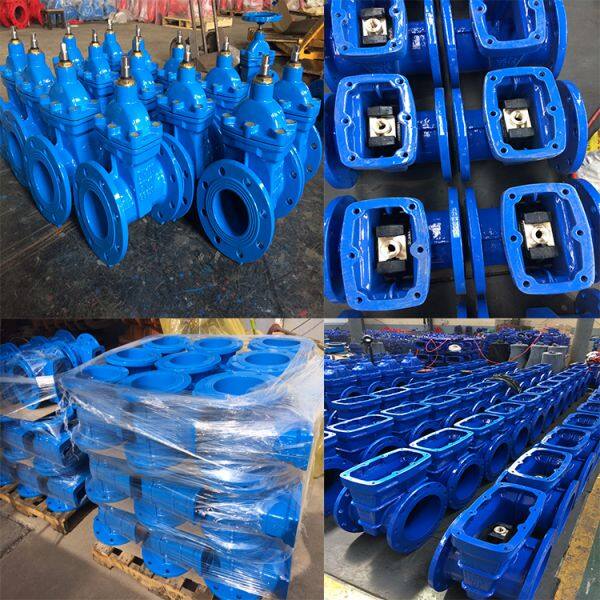

Assembly Workshop:

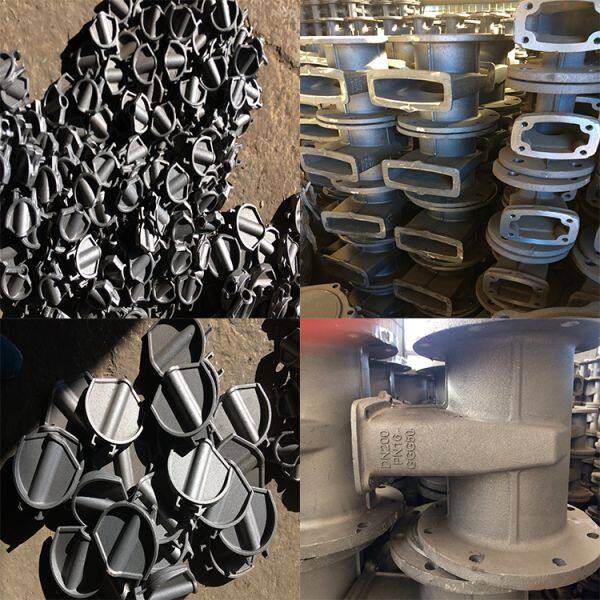

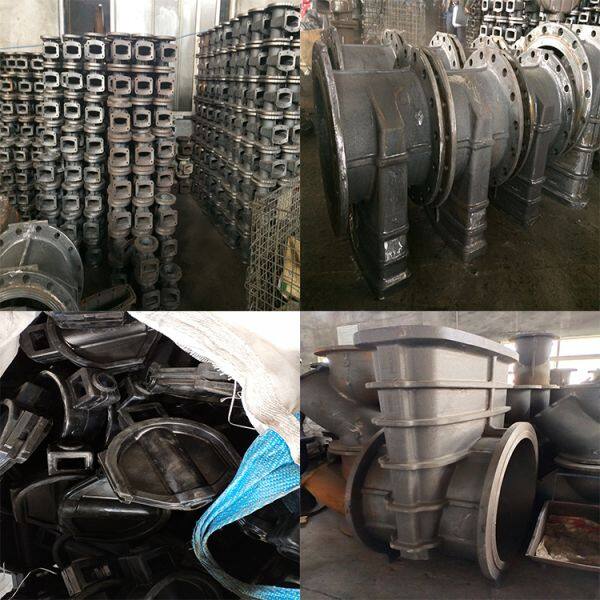

Machining Workshop:

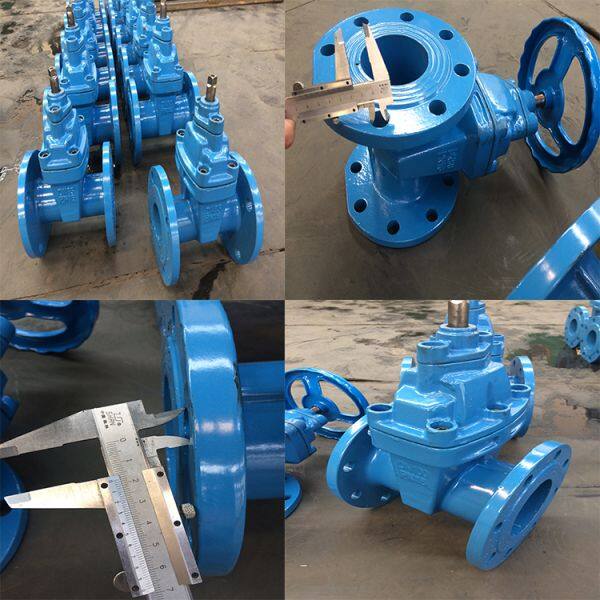

Inspeect and Test:
