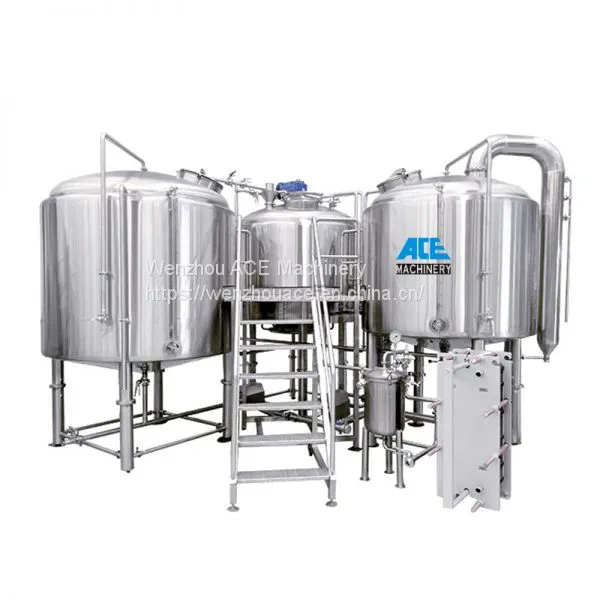

Customized Food Grade Stainless Steel 100L - 20000L Craft Beer Brewing Equipment
Fermentation is the process by which yeast converts the glucose in the wort to ethyl alcohol and carbon dioxide gas, giving both its alcohol content and its carbonation. To begin the fermentation process, the cooled wort is transferred into a fermenation vessel to which the yeast has already been added.
Grinding System |
Miller | 50-100KG/H | Double Roller,Noise |
| Heating System | Boiler | 26KG/H | Electric,Gas with CE certification |
| Brewhouse System | Mash/Lauter tun | 200L |
Material: SUS304/Red copper Interior thickness:3-4mm Exterior thickness:2-3mm Insulation: Polyurethane thickness: 80mm |
| Brew Kettle/ Whirlpool Tank |
200L | ||
| Hot Water Tank | 300L | ||
| plate exchanger | 2M2 | SUS304 | |
| Yeast adding tank | 2L | SUS304 | |
| Wort Pump |
Food grade centrifugal pump. |
||
| Working platform | SUS304 | ||
| Fermenter System | Fermentation Tank | 200L/400L | Top manway/Side manway Drying hop port Double wallet with dimple cooling jacket Carbonation port to fill CO2 |
| Cooling System | Glycol Water tank | 600L | With PU level indicator |
| Chiller | 3HP | ||
| Pump | |||
| Cleaning System | Disinfection Tank | 50L | SUS304 |
| Alkali Tank | 50L | ||
| Pump | |||
| Control System | Control Cabinet | PID/PLC/HMI | Manual/Semi-automatic/Automatic |
| Optional | Auger System | ||
| Grain Case | |||
| Customized | |||
The production of beer in morden breweries now most commonly use clylindroconical vessels, cylinderical vessel with a conical bottom in which are used for primary fermenation or the entire fermentation process, including maturation, also called uni-fermentors.
The parts that contact materials are all made of stainless steel SUS304 or SUS316L. Heat preservation adopts polyurethane blister or pearl cotton. External surface adopts sand grinding surface polishing treatment. All is in accordance with GMP standard. Volume has different specifications ranging from 100-50000L.
Advantage:
1. Highly competitive price, more than 12 years production and manufacturing experience
2. ISO9001, CE (2014/68 / EU) PED certification
3. Strictly quality control, meet the European quality standard, take 3 times water pressure test during production.
4. Accept customized, professional engineers will provide design solutions for you
5.Use high-quality 304 stainless steel, ensure the thickness of the material
6. Dimple plate cooling jacket, better cooling effect and longer service life
7. Equipped with safety valve, water-sealed pressure valve, to ensure the safe operation of the fermentation tank
Standard Features
Material: 304 stainless steel
Interior and exterior finish polished to a sanitary finish
Interior finish pickled and passivated
Exterior brushed, Fully welded exterior shell
60-72 degree cone bottom, with an average of 25% head space
Rotating racking port
Top manhole or side manhole
Dual zone dimple cooling jackets
Polyurethane insulation 80mm
CO2 blow off arm
CIP arm and spray ball
Sanitary tri-clamp connection
Dry hop port
Stainless steel handle butterfly valve,sample vale
Safety valve(Breathing valve),Water seal co2 exhaust valvee
Clamps and gaskets, pressure gauge
Stainless steel legs with stainless leveling footpads
F&Q
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood case or carton package for small parts.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
