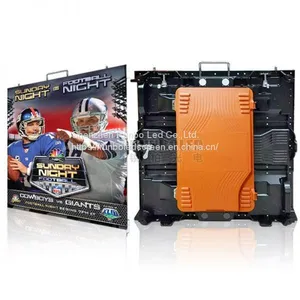

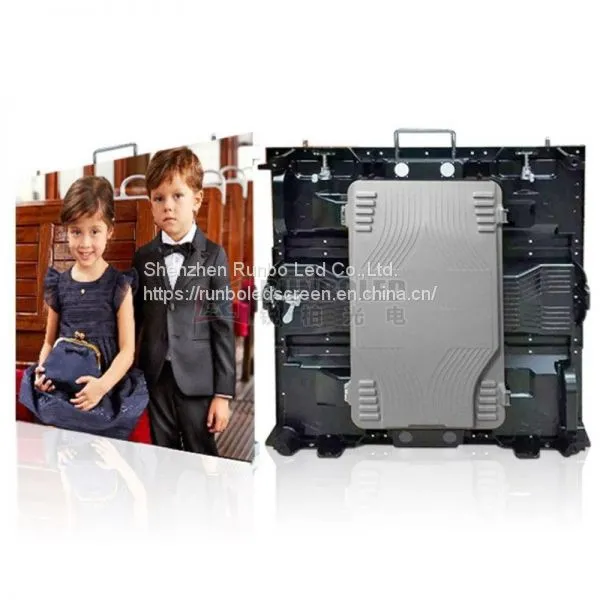

Hot selling P6 Aluminium Magnesium Alloy Rental LED Screen
P6 Outdoor Rental LED Display is one of the most popular outdoor rental products with its good quality and efficient prices which are widely used for outdoor events rental,conference rental, wedding ceremony , musical concert and so on. Nationstar or Kinglight Lamp, ICN 2153, Seetronic Navigation connector ensures top quality outdoor rental led screens. Magnesium aluminium cabinet is a big progres
Features of our Outdoor LED Display Rentall:
1. Magnesium aluminum cabinet with super light weight
2. Fast lock for quick installation, help saving time for events arrangement.
3. Seetronic connectors for power and data, making sure the long lifetime of plug in and plug out.
4. High quality raw materials for screen like nationstar lamp or kinglight lamp with ICN 2153 for high refresh rate.
5. Very good flatness for led screen installation
Specification of P6 Outdoor Tv LED Display:
Parameter Technical of P6 Outdoor Rental LED Screen with Magnesium Aluminum Cabinet | ||
Item |
Model |
Parameter |
LED Module Info. |
Pixel Pitch |
P6 Outdoor Rental |
LED Lamp |
SMD3535 |
|
IC Driver |
MBI5124/ICN2153 |
|
LED Module Size |
192*192mm |
|
LED Module Resolution |
32*32dots |
|
Color Temperature |
3000-9000K |
|
Drive Mode |
1/8 scan or 1/4scan |
|
LED Cabinet Info. |
Cabinet Size |
576*576mm |
Cabinet Resolution |
96*96dots |
|
Cabinet Material |
Magnesium Aluminum Cabinet |
|
LED Module Quantities |
3*3=9pcs |
|
Cabinet Net Weight |
8 kg/pc |
|
LED Display Info. |
Best Viewing Distance |
6m-100m |
Viewing Angle |
H: 140°/ V:140° |
|
Pixel Density |
160000dots/㎡ |
|
Brightness |
800-1000nits/sqm |
|
Max.Power Consumption |
900W/㎡ |
|
Ave.Power Consumption |
400W/㎡ |
|
Refresh Rate |
1920Hz-3840H, can be adjusted |
|
Control System Info. |
Operating System |
WIN98/2000/NT/XP |
Control Method |
Synchronous display with control PC by DVI or Asynchronous with Wifi/4G/USB |
|
Control System |
Linsn, Nova-star, Colorlight or as you required |
|
Display Content |
Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
|
Frame Frequency |
50Hz or 60Hz |
|
Transmission Distance |
Multi mode fiber |
|
Operation Info. |
Working Temperature |
-40℃--+60℃ |
Storage Temperature |
-30℃--+80℃ |
|
Input Voltage |
AC110V/AC220V |
|
Humidity Environment |
10%-95% |
|
Lifespan |
100,000hours |
|
MTBF |
10,000hours |
|
Certificate |
CE, CCC,FCC,ROHS,ISO9001 |
|
