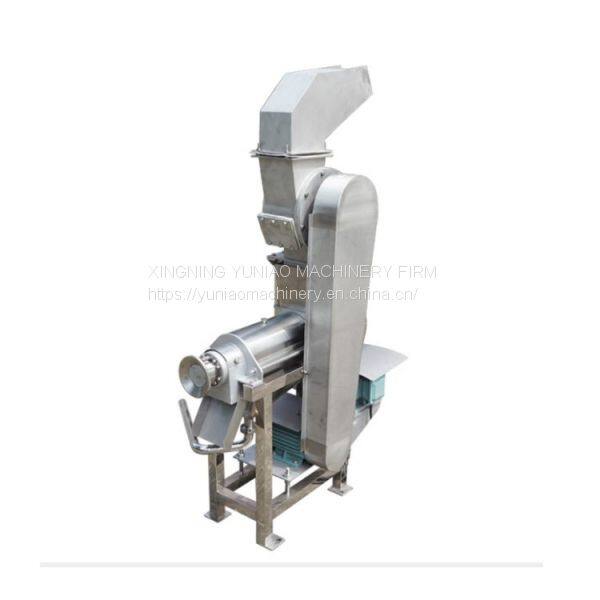

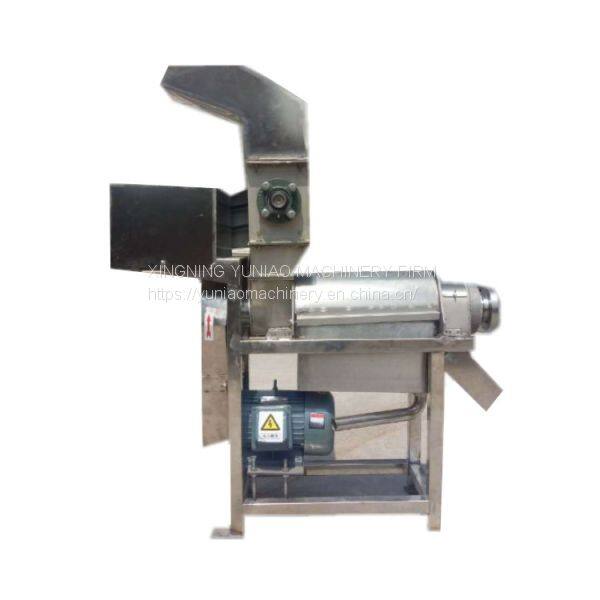

Cold Press Juicer / Vegetable Spiral Screw Juicer / Machine Juicer
(1) Usage and Application
For squeezing fruit and vegetable juices sachas tomatoes,pineapples,oranges etc,.
(2) Equipment strueture and working principle (refer to the drawing)
1. Structure
This machine consists of such parts as the front support,feeding chute,spiral,stainer,juice container,the back support ,waste outlet.The left of screw spindle is in the rolling bearing and the right is in the handwheel bearing.The motor pulls a pair of triaagle belts to make tae screw work.
2. Working principle
The componeat of this equipment is screw.The diameter gradually increases along the direction of fruit waste outlet while the distance from the screw clecreases,thus squeezing the materrals.
The rotational direction of screw spindle is clockwise.
(3) Installation and Maintenance
1. The machine must be installed in the horizontal line and must be fixed by the screw.
2. Operation
When turning on the machine,the worker must regulate the press regulator to make the break become wide and taen it will nahoow.
3. Maintenance
It must be washed when turning on the machine,especially the stainer.If there is too much fiber,the stainer must be washed very often.After squeezing the machine.
Item: SPRIAL JUICER WITH CRUSH FUNCTION
Raw material processing capacity: 500KG/H base on different material
Power: 110V 60HZ 1.5KW
Screw diameter:Φ87.5mm
Filter aperture:0.6mm
Weight:150KG
Size: 1200*550*1500mm
Feed inlet size:130*110mm
FAQ
Q1: How to order?
A: inquiry >>confirmation>>payment>>delivery
Q2: About MOQ
A: As customers’ options.
Q3: About customization
A: ODM/OEM business partner will be warmly welcome.
Q4: About sample and freight
A: Sample will be shipped by express, freight will be confirmed by our forwarder.
Q5: About price
A: Price is based on QTY, payment terms, time of delivery.
Q6:About Warranty
A:1 Year and long life after-sale service and lifelong free technical support. In the warranty period, free spare parts .
