Home > Transportation > Truck > Dump Truck > Mining Dump Truck 8X6 Tipper for Mine 50ton 70ton 90ton 130ton Mining Dump Truck SINOTRUK HOWO 6x4 8x4 Dump Truck in Djibouti , Sinotruk Price in Iran Islamic Republic of

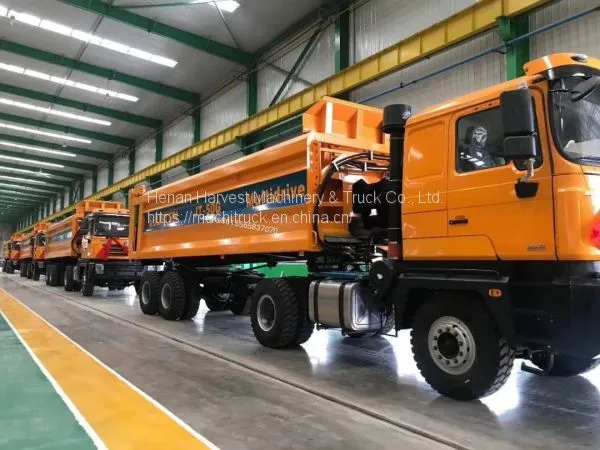

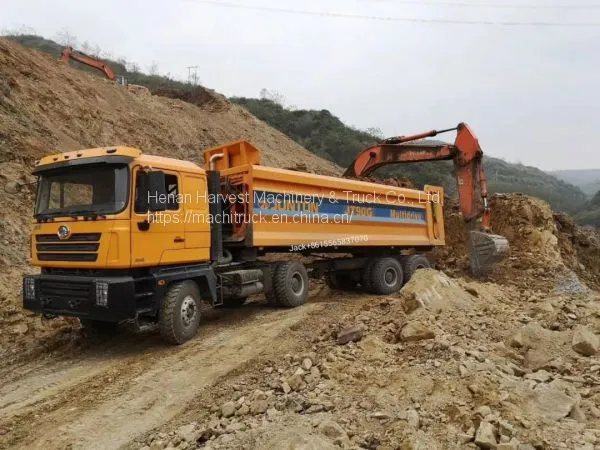

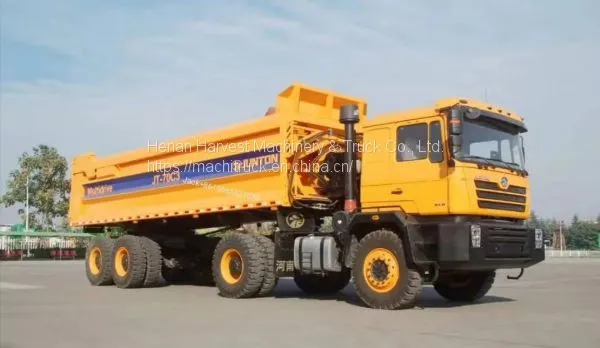

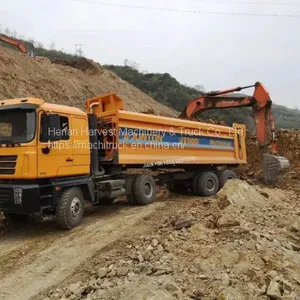

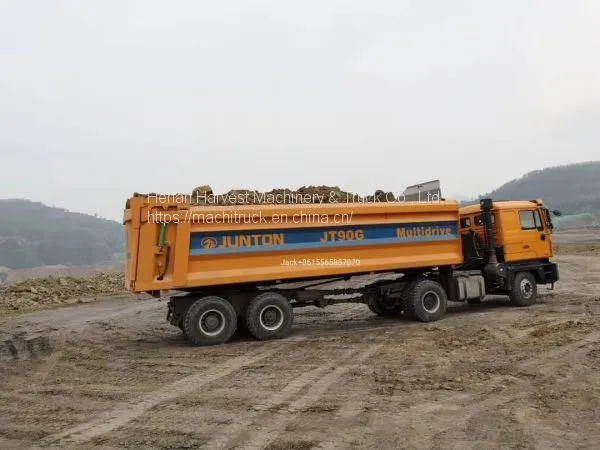

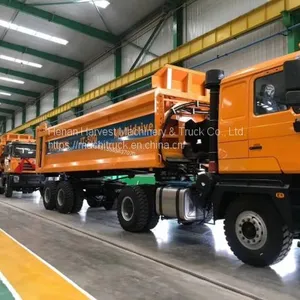

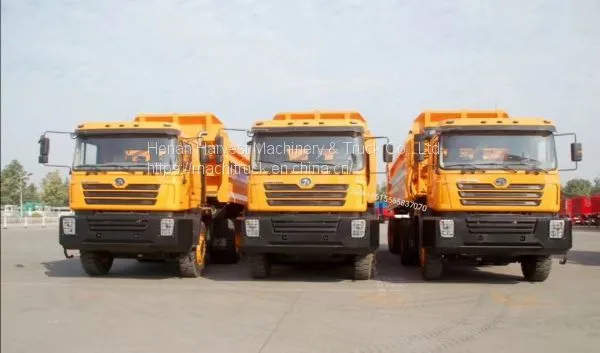

Mining Dump Truck 8X6 Tipper for Mine 50ton 70ton 90ton 130ton Mining Dump Truck SINOTRUK HOWO 6x4 8x4 Dump Truck in Djibouti , Sinotruk Price in Iran Islamic Republic of
US$ 10000 - 20000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
jun tong
Place of Origin:
China
Model Number:
JT130C
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjing shanghai
Delivery Detail:
7 days
Related Products
-
Mining Dump Truck Tipper for Mine 70ton 90ton&13oton Mining Dump Truck in Indonesia ThailandUS$ 500000 - 900000MOQ: 1 Unit -
Mining Dump Truck Tipper for Mine 70ton 90ton&13oton Mining Dump TruckUS$ 500000 - 900000MOQ: 1 Unit
-
Mining Dump Truck 8X6 Tipper for Mine 50ton 70ton 90ton 130ton Mining Dump TruckUS$ 10000 - 20000MOQ: 1 Unit
-
Tipper Truck 8x6 Dump Truck , Chinese Tipper Truck , Mining Dump Truck 8X6 Tipper for Mine 50ton 70ton 90ton 130ton Mining Dump TruckUS$ 10000 - 20000MOQ: 1 Unit
-
DONGFENG HOWO 8X4 30 Ton Used Dump Truck Prices Cheap Quality ChoiceUS$ 10000 - 30000MOQ: 1 Unit
Brand Name
jun tong
Place of Origin
China
Model Number
JT130C
Condition
New
Transmission Type
Manual
Fuel Type
Diesel
Emission Standard
Euro 2
Drive Wheel
8x6
Dimensions (L x W x H) (mm)
13000×3600×4400
Engine Capacity
> 8L
Capacity (Load)
Other, 130
Horsepower
451 - 500hp
|
Specifictions of JUNTON Multidrive | ||||||
|
Truck Model |
JT90G | JT110C | JT130C | |||
|
Cab |
Flat cab |
Flat cab（Bonneted cab is optional） |
Flat cab |
|||
|
Driving type |
8x6 | 8x6 | 8x6 | |||
| Dimension Parameter |
Overall Dimension LxWxH(mm) |
12740x2700x3650 | 13000x3185x4400 | 13000×3600×4400 | ||
|
Wheelbase(mm) |
3600×4475×1440 | 3700×4395×1560 | 3700×4495×1560 | |||
|
Wheel tread (front/rear)(mm) |
2036/1865 | 2369/2310 | 2455/2523 | |||
|
Body inside Dimension LxWxH(mm) |
8000x2500x1700 | 8500x3100x1600 | 8500x3300x1700 | |||
|
Struck capacity（m³） |
33 | 40 | 45 | |||
| Performance Parameter |
Tare Weight(kg) |
30000 | 40000 | 42000 | ||
|
GVW |
76000 | 108200 | 130000 | |||
|
Max.Speed |
66 | 54 | 54 | |||
|
Max.Gradeability(%) |
38 | 40 | 40 | |||
|
Min.Turning Radius(m) |
8.5 | 9 | 9 | |||
|
Min.Ground Clearance(mm) |
350mm | 390mm | 400mm | |||
|
Main Assembly and Technical parameter |
Engine |
Model |
Cummins QSM 11 |
Cursor C13.480 |
Cursor C13.540 |
|
|
Rated Power((kw/ps)) |
306/420 | 353/480 | 400/540 | |||
|
Rated Rotation Speed(rpm) |
1900 | 1900 | 1900 | |||
| （N·m/rpm） Max.torque/(N.m/rpm) |
2010/(1200-1400) | 2200/(1100-1400) | 2400/(1100-1400) | |||
|
Displacement(L) |
10.8 | 12.9 | 12.9 | |||
|
Oil tank model |
400 | 400 | 400 | |||
|
Transmission |
FAST 12 gears |
EATON 10 gears |
FAST 12 gears |
|||
|
Axle |
Steering Axle |
10T | 12T | 16T | ||
|
Middle and Rear Axle |
25T×3 | 32T×3 | 38T×3 | |||
Tire |
12.00R20 | 14.00R25 | 14.00R25 | |||
| Suspension |
First axle supension |
Leaf spring suspension |
Leaf spring suspension |
Leaf spring suspension |
||
|
Second axle suspension |
Leaf spring suspension |
Leaf spring suspension |
Leaf spring suspension |
|||
|
Third and forth axle suspension |
Leaf spring suspension |
Leaf spring suspension |
Leaf spring suspension |
|||
| Braking system |
Service Brake |
Dual-circuit brake |
Dual-circuit brake |
Dual-circuit brake |
||
|
Parking Brake |
Spring energy storage and air cut-off brake |
Spring energy storage and air cut-off brake |
Spring energy storage and air cut-off brake |
|||
|
Auxiliary Brake |
Engine brake |
Engine brake and exhaust brake |
Engine brake and exhaust brake |
|||
|
Electric System |
24V minus earth |
24V minus earth |
24V minus earth |
|||
|
Unloading Type |
Hydraulic cylinder pushing |
|||||
