Edible Rice Flour Drinking Straw Making Machine

Edible Rice Flour Drinking Straw Making Machine thumbnail-1
Edible Rice Flour Drinking Straw Making Machine thumbnail-2
Edible Rice Flour Drinking Straw Making Machine thumbnail-3
Edible Rice Flour Drinking Straw Making Machine thumbnail-4

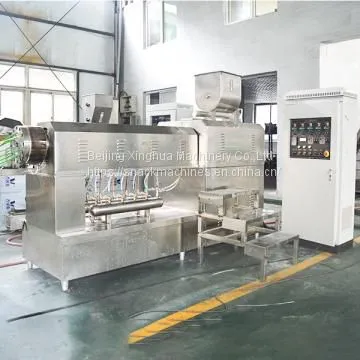

Edible Rice Flour Drinking Straw Making Machine photo-1
Edible Rice Flour Drinking Straw Making Machine photo-2
Edible Rice Flour Drinking Straw Making Machine photo-3
Edible Rice Flour Drinking Straw Making Machine photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Loyal
Place of Origin:
China
Model Number:
ERFD-2020
Contact Supplier Request Quote Chat Now
Beijing Xinghua Machinery Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Loyal
Place of Origin China
Model Number ERFD-2020
Type Other
After-sales Service Provided Engineers available to service machinery overseas

As people's awareness of environmental protection has increased, more and more countries have issued laws prohibiting plastics in the past month. How to choose an economical and convenient material instead of plastic products? Our company has developed an edible straw machine that can extrude rice flour and other food powders through extrusion molding, cooling and drying to produce a degradable straw. This straw can be kept in the beverage for 3-6 hours without deformation. It even Can be eaten by people ,in this way can reduce the usage of the plastic straw. Edible Rice Flour Drinking Straw Making Machine

Drinking Rice Straw Making Machine design



 WHY DOES THE  EDIBLE RICE FLOUR DRINKING STRAW SO POPULAR AT GLOBAL MARKET?

 CHARACTERISTIC EDIBLE RICE FLOUR DRINKING STRAW

Color

Colorful ,can be red ,green,yellow etc.

Performance

Smooth,Looks like the normal plastic straw.

Ingredient

Rice Flour,wheat flour,cassava starch

Usage

Hot drinks, cold drinks, coffee, milk tea, fruit juice, soy milk, alcoholic beverages, etc.Can be eaten

Degradable

Avaiable

Products of edible drinking straw production line



HOW TO PRODUCE  EDIBLE RICE FLOUR DRINKING STRAW BY EDIBLE RICE FLOUR DRINKING STRAW MAKING MACHINE

A.Raw material for edible rice flour drinking straw
Rice Flour,wheat flour,cassava starch

B.Processing of  edible rice flour drinking straw
Raw material mixing → Extrusion molding (cutting molding → cooling → cutting → drying → packagingc  Edible  Edible Rice Flour Drinking Straw Making Machine

Edible Rice Flour Drinking Straw Making Machine

C.Rice flour drinking straw machine includingEDIBLE RICE FLOUR DRINKING STRAW DESIGN

ITEM NO.

EQUIPMENT NAME

Parameter Of Rice Straw Making Machine

1

Mixing Machine:

Usage: Mixing The Raw Material Together Uniform.
Stirring Capacity: 40-50Kg/Batch
Stirring Time: 30s-3Min
Stirring Fin: 304 Stainless Steel, 2 Groups
Central Axis: 304 Stainless Steel
Starting Method: Electromagnetic Contact Leakage Protection Switch
Water Adding Device: Top Funnel Type Water Adding

2

Screw Hoister

Usage: To Delivery The Material To Next Device.
Outer Cylinder Diameter: 114Mm
Machine Material: Screw 304 Stainless Steel
Transmission Motor: 1.1kw, Rv63-10 Reducer, The Motor Is Explosion-Proof Motor
Bracket: The Height Can Be Adjusted Freely As Needed, With Casters At The Bottom For Easy Movement

3

Single Screw
Extruder

Usage: To Extruding the material and molding material to long pipe shape
Electrical Device: Global famous brand
Frame: Sprayed Carbon Steel Frame (Beautiful, Anti-Rust, More Durable)
Cover: The Feeder, Barrel Cover, Rotary Cutting Cover And Mixing Shaft Are All Made Of 304 Stainless Steel
Gear Box: The Bearing Of The Box Body Is NSK, The Gear Is High-Strength Alloy Nitrided Steel, And The Gear Box Is Guaranteed For 3 Years (According To The 8 Hours Of Work Per Day)
Screw: The Screw Is Made Of 38crmoarl Alloy Steel
Barrel: The Barrel Is Made Of Special Wear-Resistant Steel With A Round Barrel, And The Outer Layer Is 45# Steel.
Temperature Control: 4 Zones Independent And Automatic Temperature Control
Cooling Control: 4 Zones Independent Automatic Cooling ControL

4

Cooling Machine

Usage:Cooling the straw output from the extruder.
Frame: 50×50 201 Stainless Steel Square Tube Welding
Dust Cover: 1.2Mm 201 Material Stainless Steel Shield

5

Cutting Machine

Usage:Cutting The Long Stick  Straw Separated Stick.
We use the latest type of cutting knife with long service life,and can make  beautiful straw

6

 Drying Equipment

Maximally Avoid The Straw Bending Simple And Convenient Operation

Temperature 10℃-180 Degree Celsius Can Be Adjusted Freely

edible rice flour drinking straw machine in manufacturer

Item   No.

Feature of Edible Rice Flour Drinking Straw Production Line

1

The main extruder adopts frequency speed controlling with high automation.

2

The screws are made 38crmoarl Alloy Steel,durable usage, high pressure,and longer life.

3

The forced lubrication system can guarantee the equipment transmission life longer.

4

Muti-functional :can make many types of products by changing molds,such as macaroni pasta,nutrition rice,pellet snack etc.
