3row Crimp 38pin Molex Cable Connectors

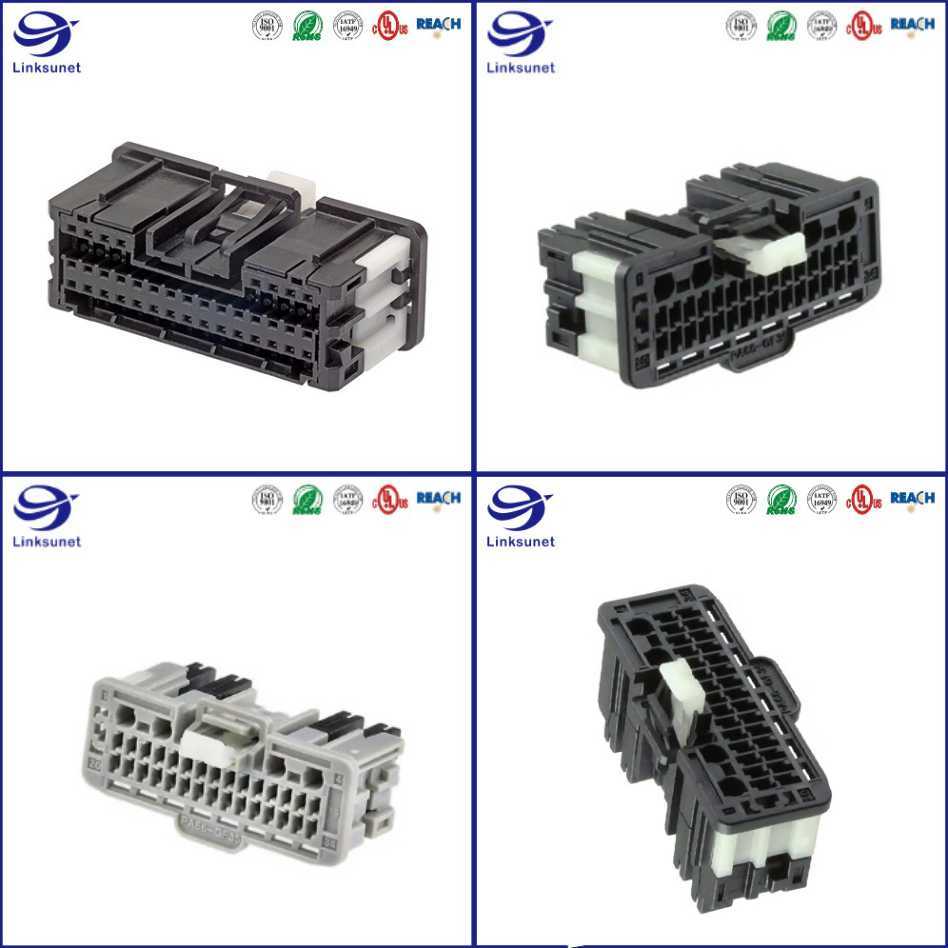

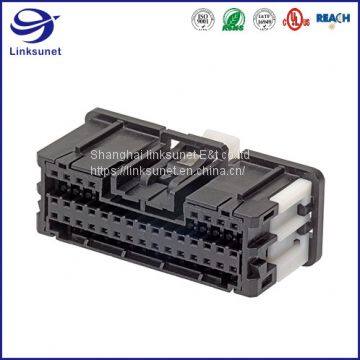

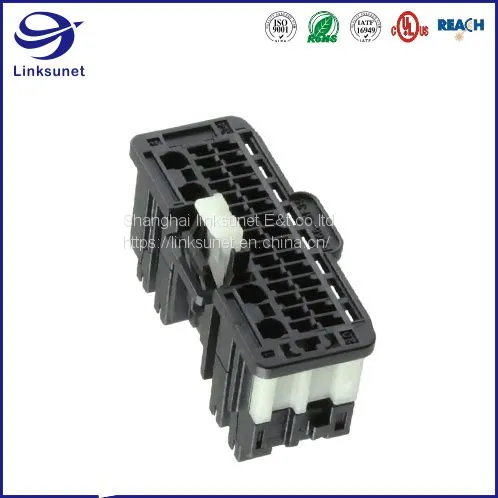

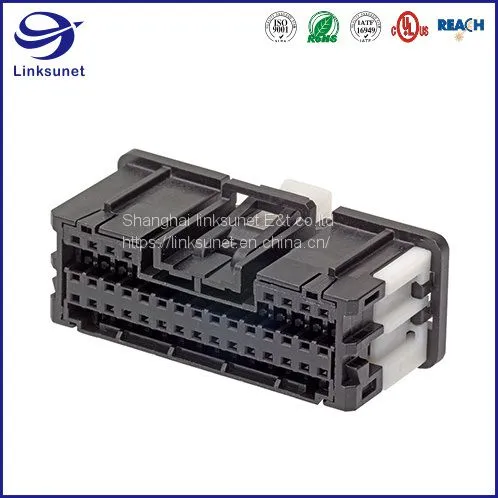

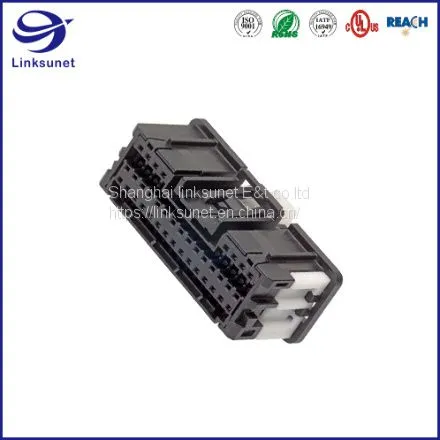

Mini50 Unsealed Receptacle, 3 Rows, without CPA, 38 Circuits, Polarization Option B, Gray
| 3row Crimp 38pin Molex Cable Connectors | |
| Categories | Connectors, Interconnects Rectangular Connectors - Housings |
| Manufacturer | Molex |
| Series | Mini50 34959 |
| Packaging | Bulk |
| Part Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Number of Positions | 38 |
| Pitch | 0.079" (2.0mm) |
| Number of Rows | 3 |
| Polarization | B |
| Row Spacing | - |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Latch Lock |
| Color | Black |
| Features | Connector Position Assurance (CPA) |
| Note | Contacts Not Included |
| Base Part Number | 034959 |
| Application | Automotive, Power, Wire-to-Board |
| Manufacturer Standard Lead Time | 12 Weeks |
| Datasheets | 34958, 34961, 34959 Series Spec |
| 0349590340 Drawing | |
| Mini50 Unsealed Series Datasheet | |
| PCN Design/Specification | 3495903yy Material 02/Dec/2016 |
| Improvements 13/Feb/2019 | |
| Video File | Molex - Electric Commercial Vehicle Solutions (eCV) |
| Molex - MX150 Unsealed Connection System | |
| Molex - Product Spotlight - MX123 Sealed Connection System | |
| Featured Product | Commercial Vehicle Products |
| 3D Drawings | 34959-0341.pdf |
| Mfg CAD Models | 0349590341.prt |
| 0349590341.igs | |
| 0349590341.stp | |
| PCN Assembly/Origin | Multiple Devices Additional Tooling 18/Jun/2019 |
Terminal
CTX50 Receptacle Terminal, Unsealed, Tin Plating, M-Grip, D-Wind, Left Payoff
| 3row Crimp 38pin Molex Cable Connectors | |
| Categories | Connectors, Interconnects Rectangular Connectors - Contacts |
| Manufacturer | Molex |
| Series | CTX50, 560023 |
| Manufacturer Part Number | 5600230448 |
| Packaging | Cut Tape (CT) |
| Part Status | Active |
| Type | Stamped |
| Pin or Socket | Socket |
| Contact Termination | Crimp |
| Wire Gauge | 22 AWG |
| Contact Finish | Tin |
| Contact Finish Thickness | 19.7µin (0.50µm) |
| Base Part Number | 560023 |
| Manufacturer Standard Lead Time | 6 Weeks |
| Datasheets | 5600230448 Drawing |
| HTML Datasheet | 5600230448 Drawing |
| PCN Other | Multiple Devices Shipping Location 20/Mar/2020 |
| PCN Assembly/Origin | 56002304yy Additional Tooling 11/Jun/2020 |
Q:How can I get the sample to check your quality?
After price confirmation,you can requirefor samples to check our product’s quality.We are must
charge the sample expernse,when uncer you orderform,we return the sample expense.
Q:How to get the price?
We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price,
please tell us in your email so that we will regard your in quiry priority.
Q:What is your term of delivery?
We accpet EXW or FOB Shanghai.You can choose the one which is the most convenient or cost
effective for you.
Q:What about the lead time for the mass production?
Honestly,it depends on the order quartity and the season you place the order.
Standard
Product quality standard:IPC/WHMA-A-620B.
Requirements and acceptance for cable and wire harness assemblies.
Confirm
The first product confirmation to customer.
Wire ＆Cable
High ranking:HELUKABEL,LEONI,LAPP,IGUS,ALPHA,BELDEN,3M,OR Customer spedified.
Mid-ranking:Ltk,Wonderful,Cableplus,Honglin.
Connector
Dominant brands:Amphenol,Molex,TE,Harting,Yeonhap,JST.
Packing
Carton or wooden case packing.
Logistics:Customer forwarder,our forwarder.
L/T,MOQ
Lead Time:Material complete after 1-2 weeks delivery(usually).
MOQ:Depends on the main material.
Customized
Special products,we can mold custom,time 3-6 weeks.
