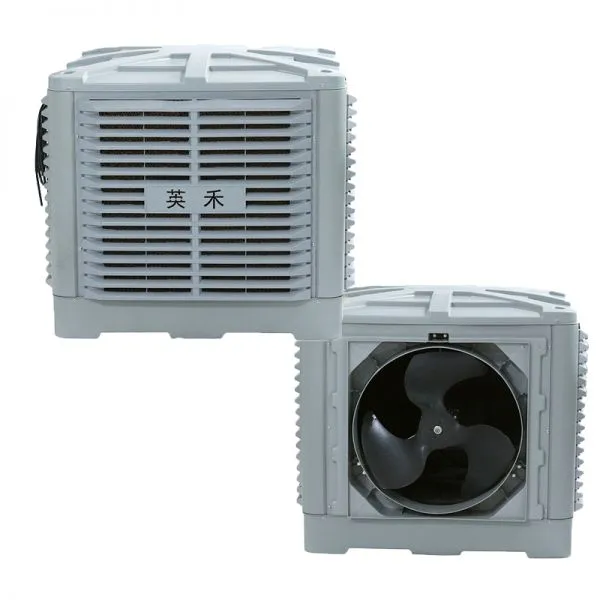

Industrial Roof Mount Desert Evaporative Cooling System Air Cooler for Factory Warehouse

Name: Industrial Roof Mount Desert Evaporative Cooling System Air Cooler for Factory Warehouse
Brand: MINXIN
Price: USD $256 - 326 / Set

FOB Price

USD $256 - $326 / Set

1 Set(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shenzhen Yantian
Payment Terms:T/T L/C Credit Card PayPal Cash Escrow Other
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	MINXIN	Place of Origin:	China	Model Number:	YiHoo-18
Certification:	CE	Type:	Evaporative Air Cooler	After-sales Service Provided:	No overseas service provided
Condition:	New	Mounting:	Wall / Window Mount	Operating Voltage:	380/400 VAC

Product Description

Product Description

Air flow volumes of the industrial water cooling system air cooler of 18,000m³/h which helps to create an environment with comfortable temperature and humidity.

Item No.	YiHoo-18
Voltage / Frequency	220V/50Hz
Airflow	18000(m³/h)
Fan Type	Axial
Fan Speed Stages	12
Power	1.1KW
Dimensions	1100x1100x940mm
Net Weight	60kg
Water Storage Capacity	30L
Evaporation Capacity	25(L/H)
Applicable Space	100㎡
Materials	Tough and Rigid PP
Voltage / Frequency	220V/50Hz (customizable)

Water Cooling System inside the Water Air Cooler

The water air cooler uses a fan to draw in the hot air, and passes over water-moistened pads, the water-moistened cooling pads immediately cools the air, then the evaporative cooler releases this cool moisturized air into the space.

Great Cooling Effect

The air coolers can help to cool the air temperature down by 5~10 centigrade.

Multifunction LED Touch Screen Control Panel	High Quality Water Air Cooler Accessories
Can be customized in multiple languages.	The wate air cooler parts and accessories shipped along with the air coolers

Water Pump	Water Outlet	Air Cooler Motor	Fan Blade
Double filtration water pump, it filters the impurities for smoother water flow	outlets automatically, cleans the water tank for better air quality	Fully copper motor, quiet and durable	High airflow, strong airvent at a long distance

Air Cooler Options

Upward Airvent Air Cooler

Downward Airvent Air Cooler

Side Airvent Air Cooler

Single Airvent

Double Airvent

4 Airvent

8 All-Around Airvent

Size Chart of This Design

Item No.	YiHoo-18	YiHoo-25	YiHoo-30	YiHoo-P18	YiHoo-120
Voltage / Frequency	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz
Airflow	18000(m³/h)	25000(m³/h)	30000(m³/h)	180000(m³/h)	12000(m³/h)
Fan Type	Axial	Axial	Axial	Axial	Axial
Fan Speed Stages	12	12	12	12	12
Power	1.1KW	1.5KW	3KW	1.1KW	0.29KW
Dimensions	1100x1100x940mm	1150x1150x1160mm	1260x1260x1200mm	1100x1100x1950mm	870x 480x 1460mm
Net Weight	60kg	80kg	85kg	60kg	43kg
Water Storage Capacity	30L	40L	50L	200L	120L
Evaporation Capacity	25(L/H)	35(L/H)	40(L/H)	25(L/H)	15(L/H)
Applicable Space	100㎡	150㎡	200㎡	100㎡	100 to 120㎡
Materials	Tough and Rigid PP	Tough and Rigid PP	Tough and Rigid PP	Tough and Rigid PP	Tough and Rigid PP
Voltage / Frequency	220V/50Hz (customizable)	220V/50Hz (customizable)	220V/50Hz (customizable)	220V/50Hz (customizable)	220V/50Hz (customizable)

After Sales Service

One Year Warranty, Lifetime Aftersale Service

We offer 1 year warranty on the motors and the entire fan, and we will provide free spare parts for any defective models within the warranty period.

Company Introduction

MINXIN INDUSTRIAL is well known for its most complete production line for industrial exhaust fans, evaporative air conditioners, and mobile air coolers.

Our Services & Strength

Minxin Industrial was founded in 2015, since then Minxin has been specialized in manufacturing industrial exhaust fans and evaporative air coolers of all sizes, such as:
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo Mobile evaporative air cooler

Our Production Lines

Supporting 120 employees, our 20,000 square meter factory is top-notch, Minxin Industrial equipped itself with all the production equipment processes in house for better control of the quality and delivery time:
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop

Steel coil sliding and cutting line, steel pipe cutting line

Aluminum Die Cast Tooling & Casting

Plastic Molding & Injection workshop

Motor Copper Coil Winding Line

Motor Assembly Workshop

Stamping Workshop

Wire Guard Welding

Fan Parts CNC Machining

Laser Cutting
