Help CenterIntroduction of Type RA 15008 With Outer Ring Separated and Lighweight Conpact Structure
Related Products
-
SDQ-816 Four Point Contact Ball Slewing Bearing for Medical Equipment or Other TurntableUS$ 1 - 999MOQ: 1 Piece -
KAYDON KG090CP0 Thin Section BearingUS$ 1 - 999MOQ: 1 Piece
-
CRB 225 Crossed Roller Slewing Bearing With Special Surface Treatment for Medical EquipmentUS$ 1 - 999MOQ: 1 Set
-
CRB 200/P6 Crossed Roller Slewing Bearing With Special Surface Treatment for Medical EquipmentUS$ 1 - 999MOQ: 1 Set
-
Deep Groove Ball Bearing With Brass Cage and Precision of P5US$ 1 - 9999MOQ: 1 Set

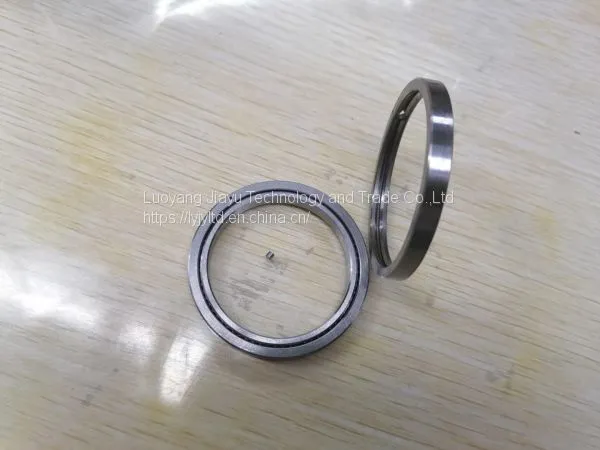

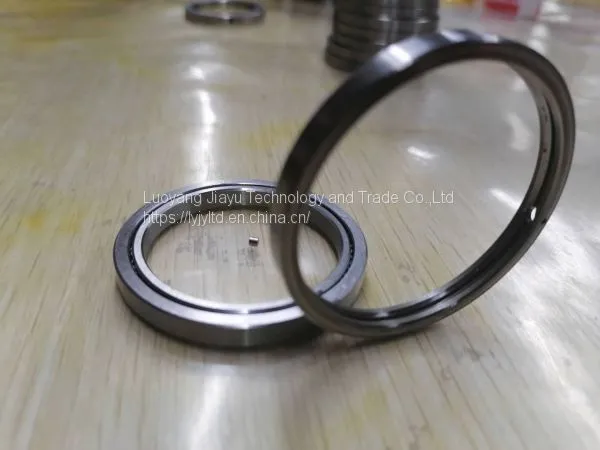

Type RA crossed roller bearing is a lightweight,conpact slimmed by reducing the thickness of the inner and outer rings to the maximum allowable limit.Though it is very compact and thin,this type of bearing can hold heavy load.Because its outer ring is separable,it is ideal for use in robot hand and applications where the precision of inner ring is high.The outer ring can be separated from the unit and is permanently fastend in place by riveting.

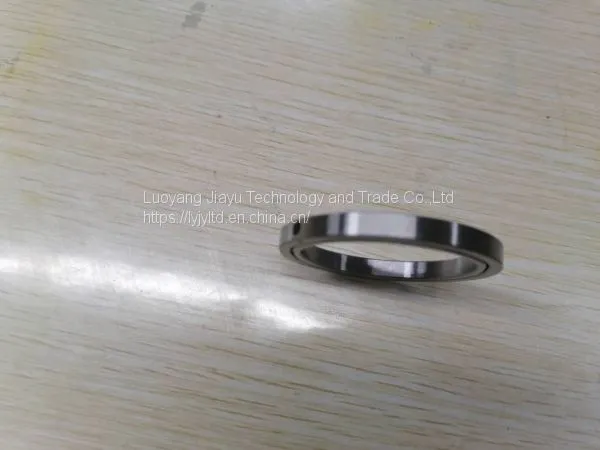

Thie major dimensions of this type are OD of 166mm,Id of 150mm and height of 8mm.It can save space and is easy to install.

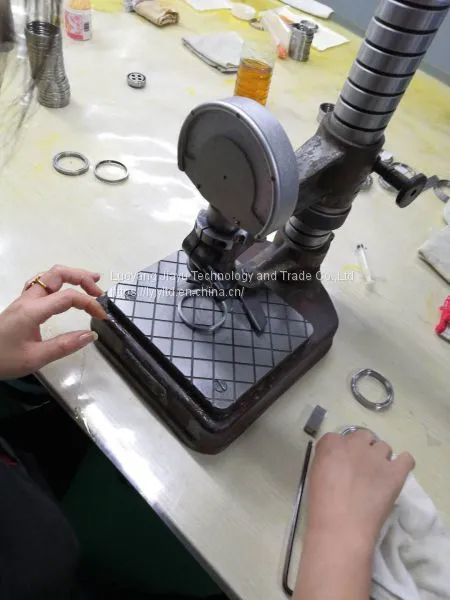

During of manufacturing,because of its big and thin section,it is difficult to control its deformation.We adopt special process to stablize it and connect them so that the connection and deformation is solved perfectly.Meanwhile,we use intergrit seal to provent dust and foreign matter from entering the bearing and the leakage of grease.
Its structure is the same as of THK. It rotates smoothly and has long life but with low price. Therefore, it is the ideal counterpart for imported bearings. Its precision is higher than that of THK.
Model |
Overall dimensions |
Mounting Dimensions |
Rated Load |
Weight |
|||||
d mm |
D mm |
B、C mm |
Rmin mm |
da mm |
Da mm |
C KN |
Co KN |
≈ kg |
|
RA15008 |
150 |
166 |
8 |
0.5 |
153.5 |
160.5 |
8.82 |
20.6 |
0.2 |
