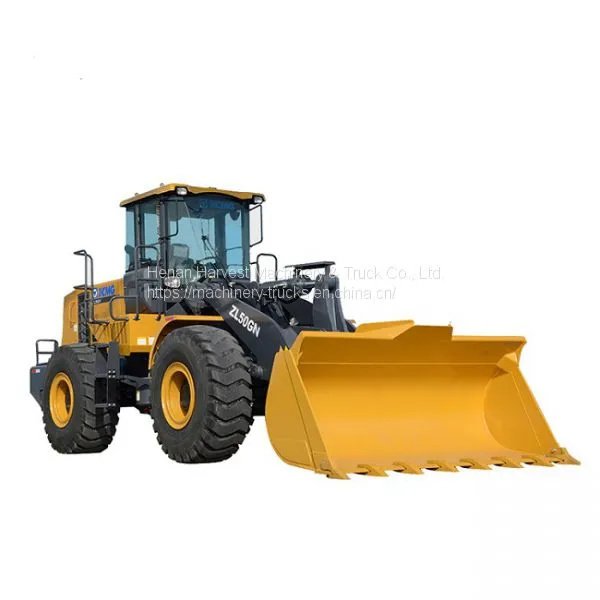

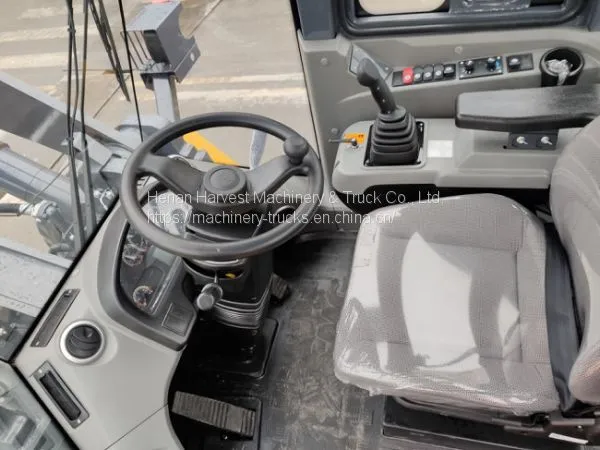

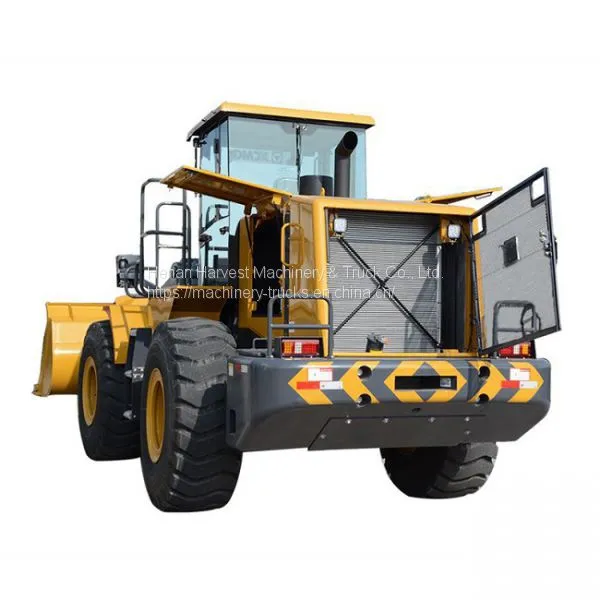

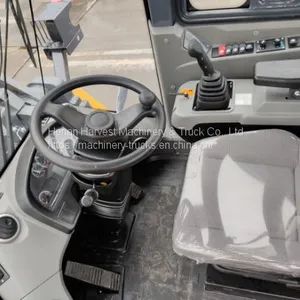

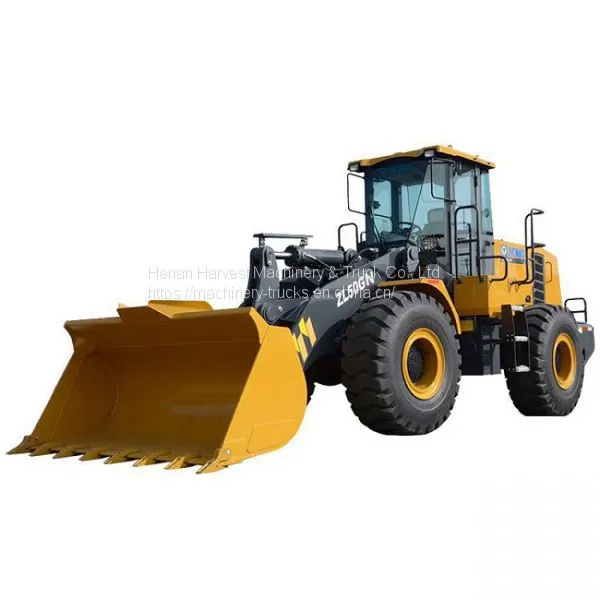

XCMG 5 Ton 3cbm Front End Wheel Loader ZL50GN With Joystick, Weichai 162kW Engine
Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.
The large rock bucket with capacity of 3.0m³ is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of toothholder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.
The thickness of the front frame lug and baseboard is 70mm, and the thickness of the up and down articulated board is 30mm. The machine is superior among the products of same kind in terms of the structural strength and carrying capacity.
The strong breakout force of 17 ton and strong traction of 17.5 ton ensure that the machine could adapt to various tough condition.
Reliable operation: with the long wheelbase of 3300mm and long machine body of 8185mm, the machine is ahead in the industry in terms of the operation reliability.
Quick action: the total time of three devices is only 10.3s, and the speed is 11.5 km/hour during the operation.
Strong adaptation to the work site: centered design, small turning raidus. No speed difference between front and rear wheels. The tyre is not easily worn.
Product Paramenters
Description |
Unit |
Parameter value |
Rated operating load |
kg |
5000 |
Bucket capacity |
m³ |
2.5~4.5 |
Machine weight |
kg |
17500±300 |
Dump clearance at maximum lift |
mm |
3100~3780 |
Reach at maximum lift |
mm |
1100~1220 |
Wheel base |
mm |
3300 |
Tread |
mm |
2250 |
Max.breakout force |
kN |
175±5 |
Max.horse power |
kN |
160±5 |
Hydraulic cycle time-raise |
s |
≤6 |
Total hydraulic cycle time |
s |
≤10.5 |
Min. turning radius over tyres |
mm |
5925±50 |
Articulation angle |
° |
38 |
Gradeability |
° |
30 |
Tyre size |
23.5-25-16PR |
|
Overall machine dimension L×W×H |
mm |
8225×3016×3515 |
Model |
WD10G220E21 |
|
Rated Power |
kW |
162 |
Travel Speed |
Ⅰ-gear(F/R) |
13/17km/h |
Ⅱ-gear(F) |
41km/h |

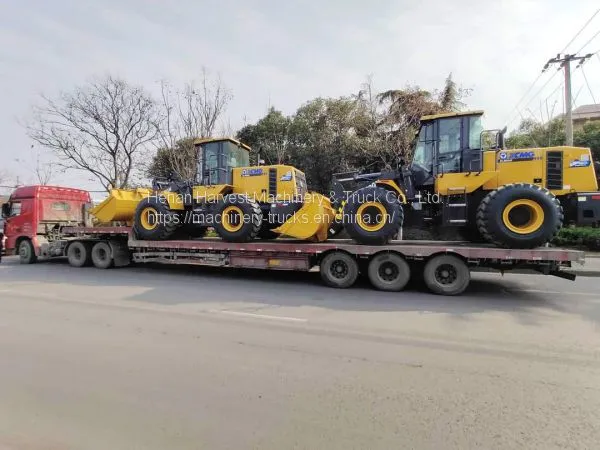

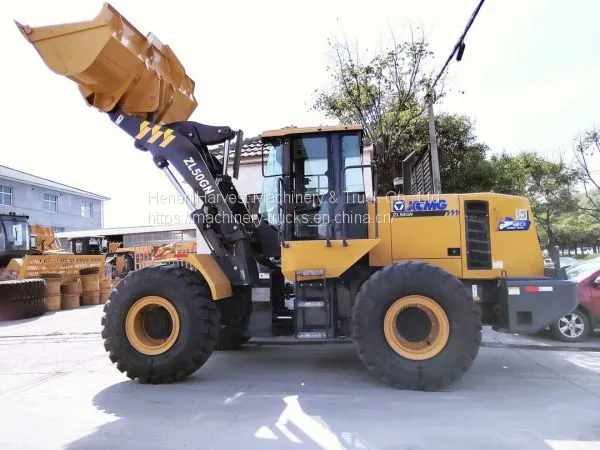

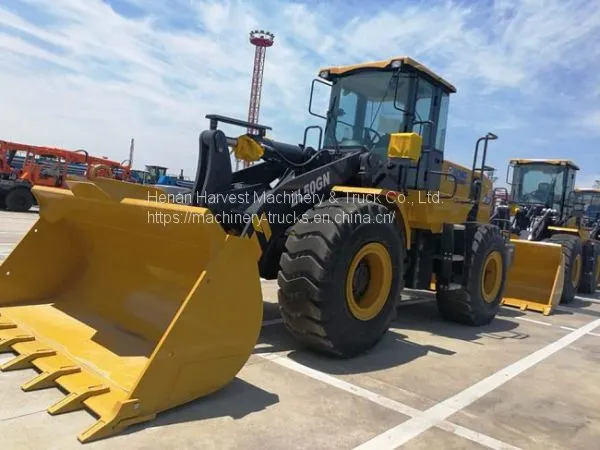

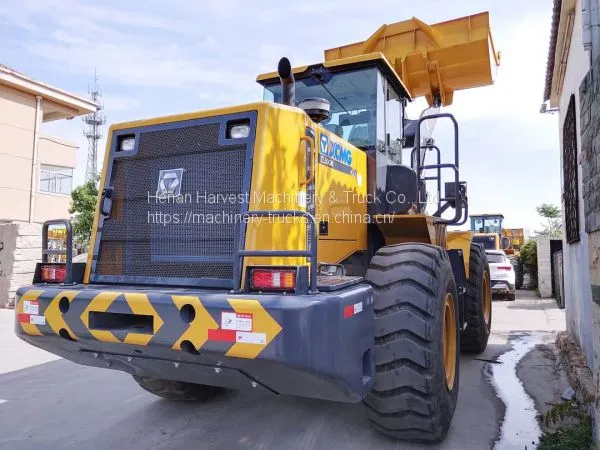

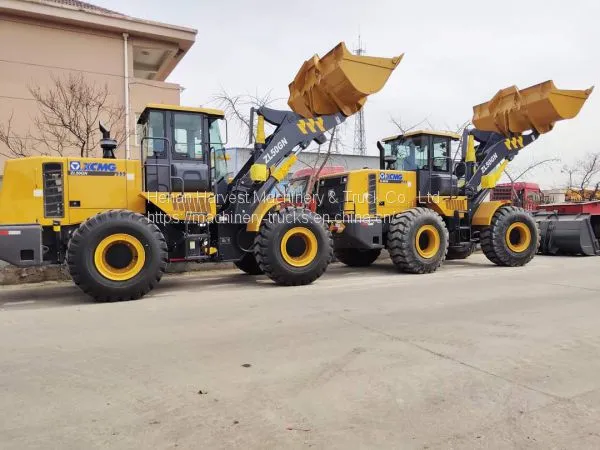

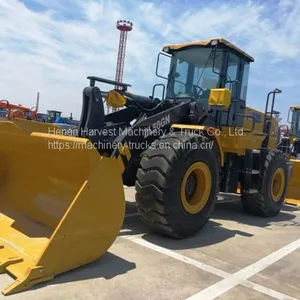

Product Show
