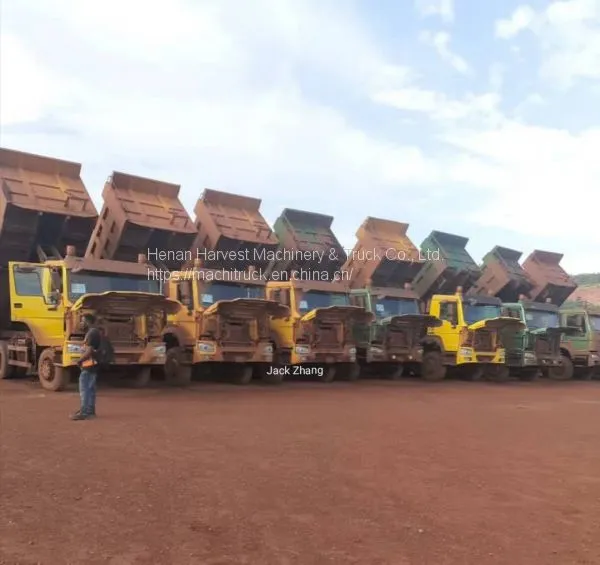

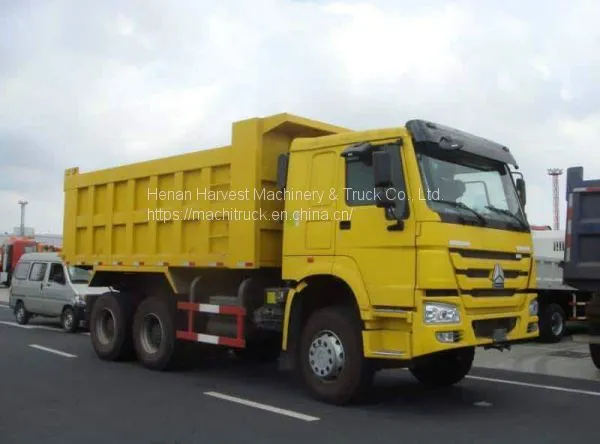

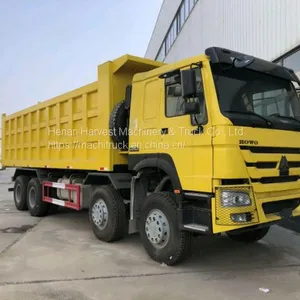

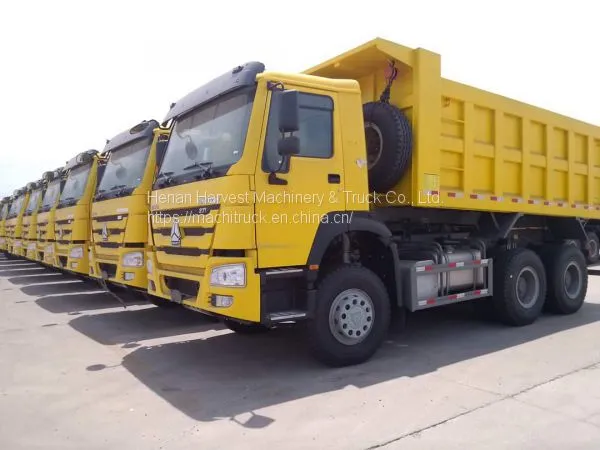

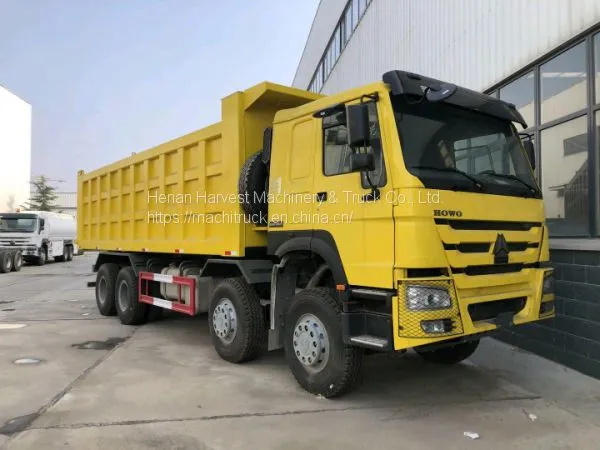

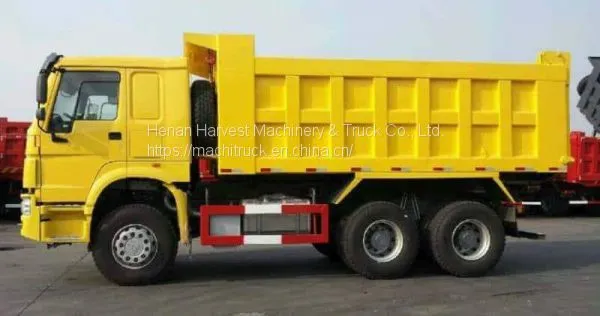

CHINA SINOTRUK HOWO 6x4 dump truck in Kinshasa

Truck Model

ZZ3257N3847A

Steering type

LHD or RHD

Dimension of box (LxWxH)

5800x2300x1500 mm

Thickness of box (mm)

Deck:8mm;side:6mm

Lifting Type of carriage

Middle Lifting,T type

Overall dimensions (LxWxH)

8607*2560*3386 mm

Approach angle/Departure angle(°)

19/23

front/rear suspension (mm)

1500/1870

Wheelbase (mm)

3825+1350

Max speed(km/h)

75

Vehicle Curb weight(kg)

12460

Gross mass (kg)

25000

Engine

Model

SINOTRUK WD615.69,

4-stroke direct injection diesel engine,

6-cylinder in-line with water cooling,

turbo-charging and intercooling

Power, max(kw/rpm)

336 HP

Emission

Euro2

Transmission/Gear box

Model

HW19710, 10 speeds forward ,2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

8118,hydraulic steering with power assistance

Front axle

HF 9,drum type

Driving axle

HC16,16ton double reduction

Tire

12.00R20,radial tyres,11pcs (one spare)

Clutch

φ430 diaphragm spring clutch,hydraulic control air power assisted

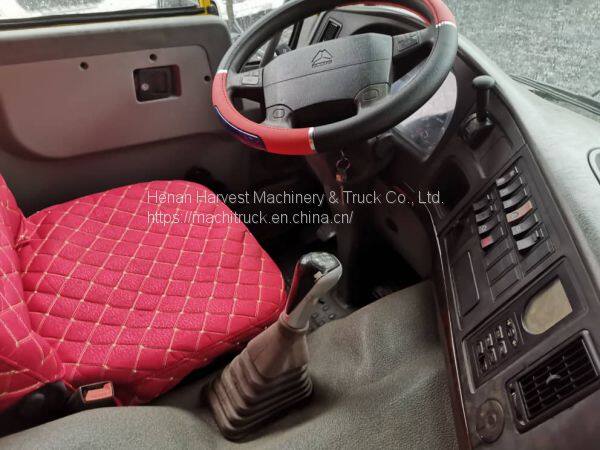

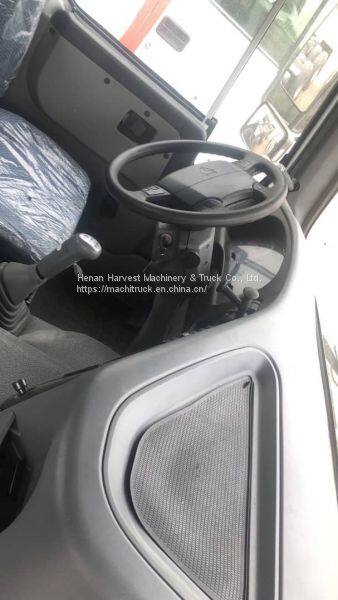

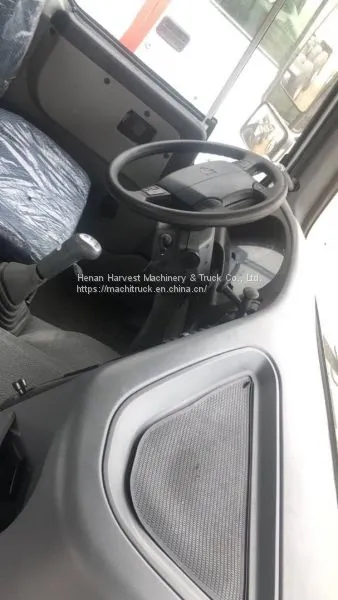

Cab

HW76,one bed,with A/C.

VOLVO technology ,comfortable cab.

4-point support floating suspension and shock absorbers,

up/down and front/back adjustable steering wheel,

VDO instrument and control module,safety belt ,

air horn,outer sun visor.

Electric system

Battery

2x12V/165Ah

Alternator

28V-1500 KW

Starter

7.5 Kw/24 V

Color

 red,white,yellow. Optional as per customer’s requests.
