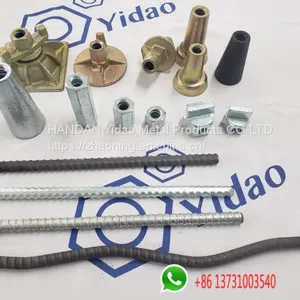

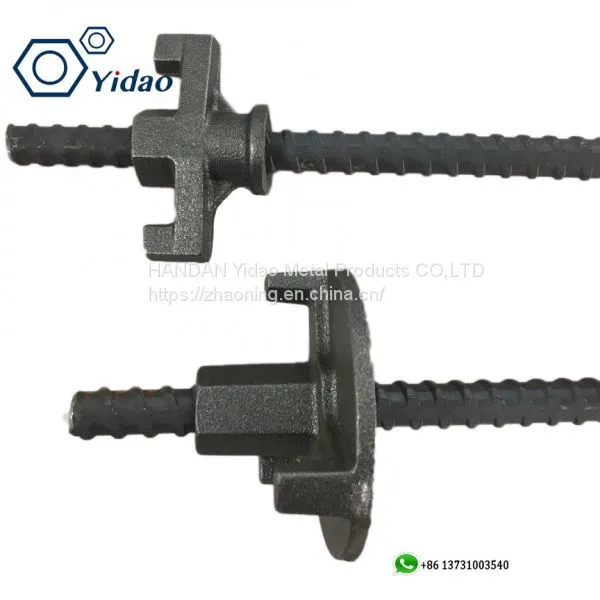

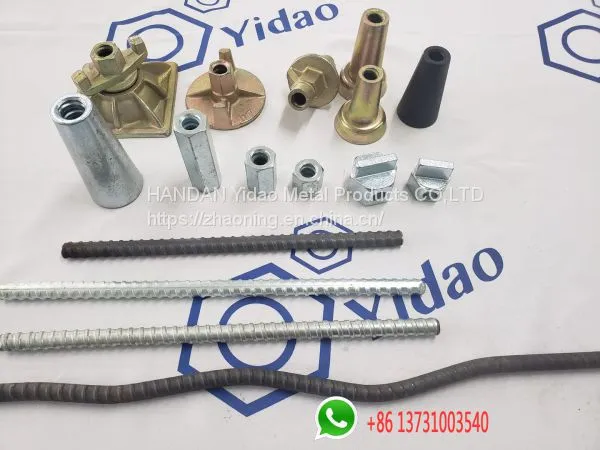

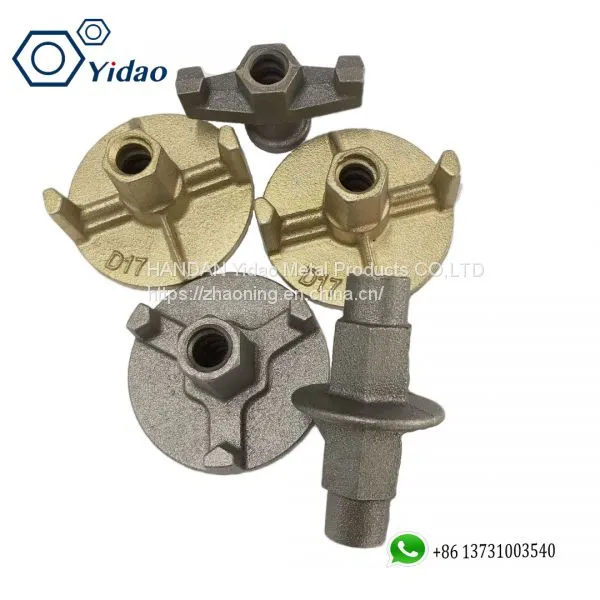

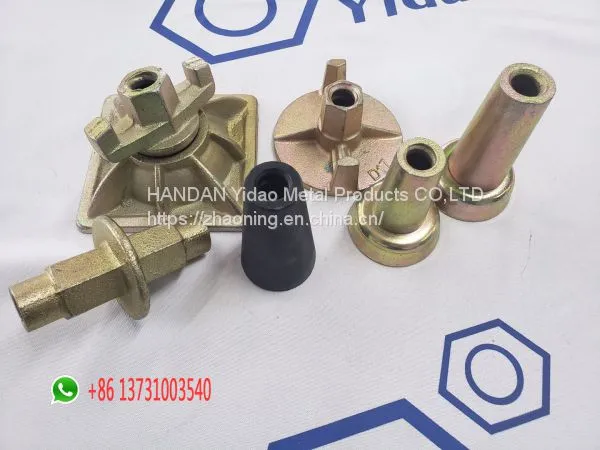

CHINA Scaffolding Formwork System Tie Rod and Wing Nut

CHINA  Scaffolding Formwork System Tie Rod and Wing Nut

YIDAO METAL PRODUCTS,Which  is a leading manufacturer in china.

The  main products we deal in are Thread Bar(tension  bars/high strength thread bar) and Thread bar Accessories.

Such  as Hex nut,bolt,Domed  nut,Anchor bolt,Couplers,bolt coupler,Spring bar,Bearing plate,Flate  washer,etc.

Thread  bar Grand：HRB335/HRB500,PSB830/PSB930/PSB1080 (Grade :75/80/150/150FC/120FS)   Diameter  Range:M20/M25/M32/M36/M40/M50/M63.5

Accessory Diameter Range: 12mm/16mm/20mm/25mm/32mm/36mm/40mm/50mm/63.5mm  OR Customized

In  application of Construction/Bridge/Concrete reinforcement /Bar systems/Urban  railways/High speed way/ Post-Tensioning/Geotechnical/Formworks/Ground  Anchors/Soil  Nailing/Tunneling/Mining

1. Standard: GB/T 20065-2006 ,ASTM A722

2.Material:40Si2MnV

3.Diameter: 15-63.5mm

4. Length: according to customer's requirements

5.Grade: PSB500,PSB785,PSB830,PSB930,PSB1080,JL540,JL800,ASTM A722 and others.

6. Packing: in bundles

The screw thread steel bars for the prestressing of concrete manufactured by our company is a high tensile alloy steel bar which features a coarse right-hand thread The outline dimensions of the screw thread steel bars for the prestressing of .concrete manufactured by us accord with the regulation for the outline and dimension of screw thread steel bars for the prestressing of concrete provided by Highway LAYOUT Design Institute under the Ministry of Communication

Screw thread steel bars Details

Prestressing screw bar

1. Application:  prestressing concrete building construction, such as coal mining roofing, high way, railway...

2. Grade:    (yield strength)    500, 555  785,  830 ,930, 1080mpa

                (tensile strength) 630,  777,  980, 1030, 1080, 1230mpa.

3. Diameter:15mm,18mm,20mm,32mm,36mm,40mm,50mm,63.5mm,

4. Technology: Hot rolled, Left-handed and dextral

5. Accessories: nut ,coupler, plate, washer

6. Length: Any length you like

7. Coating: galvanized or epoxy coating

8. Delivery condition: New production or goods in stock. based on your requirement.

9. ISO Certificate

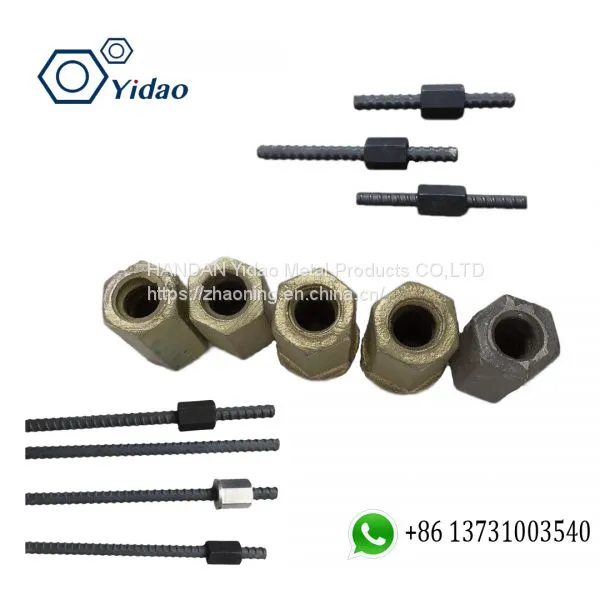

Coupler for PC stressing bar specification:

Plate for screw thread bar/PC bar/stressing bar specification :
