Product Application

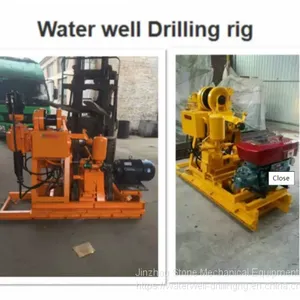

XY-1 Water well machine is light shallow hole drill rig with hydraulic automatic feeding mechanism.It is mainly applied to the exploration, geophysical exploration, road and building exploration and small water well drilling, etc.

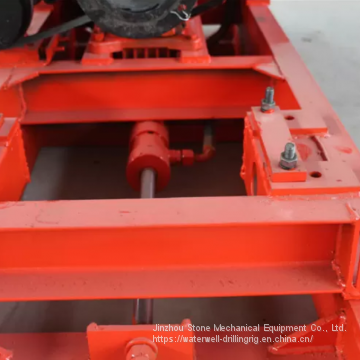

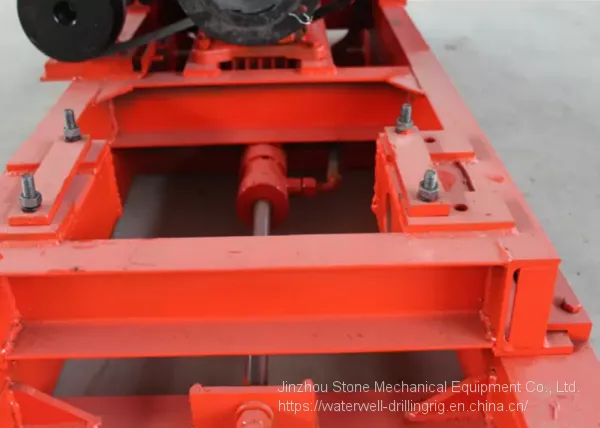

XY-1A drilling rig is designed on the basis of the XY-1 drilling rig, it is low-speed, high-torque, oil pressure feeding and portative.
1.1 Use and Application Scope of Drill
1.1.1 It is mainly used in the exploration of solid mineral deposits and geological survey of engineering, and the inspection holes of various concrete structures.
1.1.2 Diamond, alloy and steel bits can be drilled according to the different strata.
1.1.3 When the final hole diameter is 75mm and 46mm respectively, the depth of the rated borehole is 100m and 180m respectively, and the maximum depth shall not exceed 110% of the depth of drilling, the rated opening diameter is 110mm and the maximum opening diameter is 150mm.
1.2 Features
1.2.1 The oil pressure feeding mechanism can improve drilling efficiency and reduce the labor intensity.
1.2.2 The drilling rig is equipped with a ball mounted card blessing mechanism with six side active drill rods. The utility model can perform no stopping and falling rod. And it has the advantages of high work efficiency, convenient operation, safety and reliability.
1.2.3 Hole pressure gauge indicates pressure which can be easy to grasp the situation inside the hole.
1.2.4 Handle concentration, easy operation.
1.2.5 It is compact, small in size, light in weight, strong in decomposition and easy to remove .And it can be used in plains and mountains.
Features of water well drilling and rig machine:
Oil pressure feeding system to improve drilling efficiency and lighten labor strength. It configures upper ball clip clamping mechanism together with 6 sides' active drilling rod to practice pole collapse when running, high efficiency, safe and reliable.Centralized handles and convenient operation.Compact structure, small volume, light weight, strong resolvability and easy to move, which is suitable to work in plain or mountain area.
Main applications :
Drilling and various concrete structure peep hole in solid ore bed survey and engineering geological prospecting.According to different geological conditions, you can choose drilling bit kinds: diamond, alloy and steel particles to drill.When hole termination are 75mm and 46mm separately, the rating drilling depth is 100m and 180m. The max. depth can not exceed 110%
of each drilling, the maximum boring diameter can be 150mm.
| Unity machine parameter | |
| Drilling depth | 30--180m |
| Drill rod caliber | 50 42mm |
| End hole caliber | 75 46mm |
| Max. open hloe caliber | 220mm |
| Drilling angle | 90°~75° |
| Drill weight (No include power) | 610kg |
| Unity machine dimensions | 2.1×0.9×1.3m |
| Spindle | |
| spindle speed | 130, 300, 480, 730, 830, 1045r/min |
| Spindle stroke | 450mm |
| Hoist | |
| Max.single line hoisting capacity | 1600kg |
| Single line lifting speed | 1.06, 0.67, 0.32m/s |
| Wirerope caliber | 13mm |
| Wirerope cubic measure | 35m |
| Hug floodgate caliber | 254mm |
| Hug folldgate belt width | 50mm |
| Distance between drill and hole | 230mm |
| Mud pump | |
| Type | Horizontal single urn twin-action |
| Displacement | 170L/min |
| Maximum pressure | 1.5Mpa |
| Work pressure | 0.7Mpa |
| Power | |
| Diesle engine | S1105 18HP |
| Electric motor | Y160M—4 15KW |
