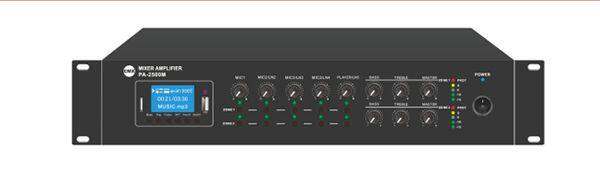

PA-2500M 2 Zone Mixer Amplifier with USB/SD/FM/Bluetooth Made in Guangzhou CMX Audio Co. Ltd.

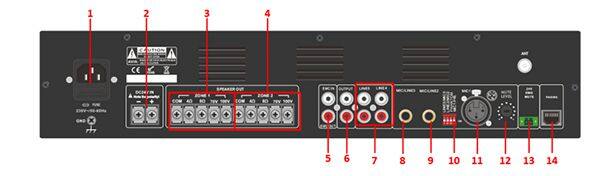

The rear panel of PA-2500M 2 zone mixer amplifier with USB/SD/FM/Bluetooth:
The paramter of PA-2500M audio amplifier:
Model |
PA-2060M |
PA-2120M |
PA-22400M |
PA-2350M |
PA-2500M |
Description |
2 zone mixer amplifier with USB/SD/FM/Bluetooth |
||||
Rated Power Output |
2x60W |
2x120W |
2x240W |
2x350W |
2x500W |
Speaker Output |
2 zone separated speaker output of 100V or 70V &4~8 Ohms |
||||
Connector |
Mic1 input by balanced XLR with+48V phantom power Input2-3 inputs Mic/Line switchable unbalanced 6.3mm jack Line1-2 inputs by RCA, Line output by RCA RJ45 port for remote microphone |
||||
Input |
MIC1-3:5-8M, 600 Ω,Line, 150-470mV, 10KΩ,unbalanced RCA |
||||
Line Out |
0.775(odbv) |
||||
Frequency Response |
60HZ-15KHZ(±3db) |
||||
S/N Ratio |
Line ≥85db,Mic≥72db |
||||
THD |
Less than 0.5% |
||||
Protection |
Short-circuit, clip, overload and high temperature protection |
||||
Power Consumption |
80W |
150W |
310W |
450W |
650W |
Power Supply |
230VAC, 50-60HZ |
||||
Dimension |
484x335x88mm |
||||
Weight |
6.1 kg |
6.6kg |
9.6kg |
11.9kg |
13.7kg |
Here is the feature of PA-2500M 2 Zone Mixer Amplifier with USB/SD/FM/Bluetooth.
1. Desktop 19”rack mount 2 zone public address amplifier
2. Build-in media player with USB/SD/FM & Bluetooth
3. Rate power output at 2*60W,2*120W,2*240W,2*350W to 2*500W
4. 2 zone separated speaker output of 100V & 4 Ohms & 8 Ohms
5. 2 amplifier support 100 V&8 Ohms into one unit
6. Each input with zone 1 or zone 2 output selector on front panel
7. Bass/Treble and master volume 2 zone separated control
8. 3*Mic/line inputs, 2*RCA line inputs, and 1*RCA line output
9. XLR input with switchable +48V phantom power
10. With emergency 24V mute input and mute level attenuator
11. Input priority level from high to low: Mic1, 24V mute input, RJ45 port to others inputs
12. Each amplifier support 6 units remote microphones through CAT6 cable
13. With short-circuit, clip, overload and high temperature protection
14. 230V AC power supply

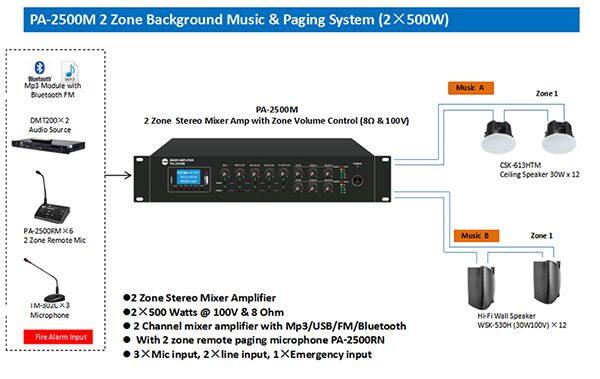

The connection diagram of PA-2500M 2 zone mixer amplifier with USB/SD/FM/Bluetooth:
