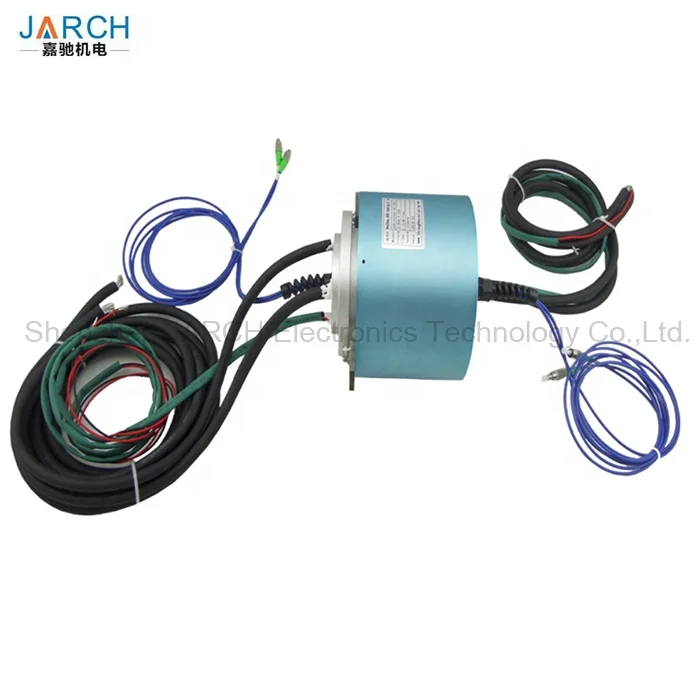

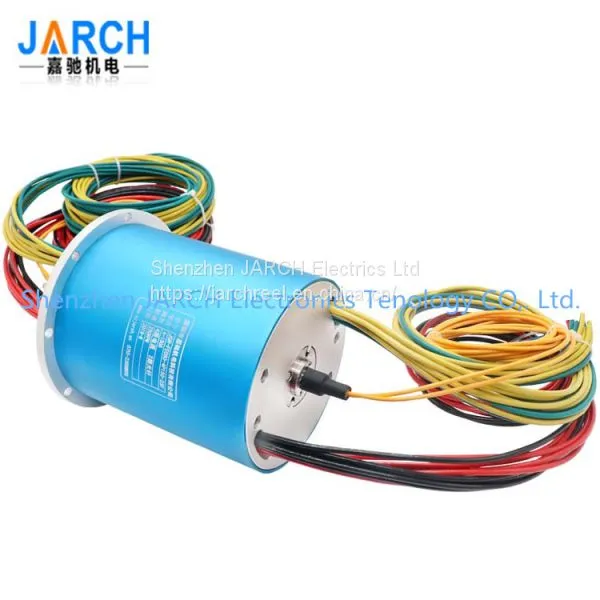

Signal Multi Mode Fiber Optic Rotary Joint High Speed Fibre Optic Electrical Slip Ring

Hybrid Rotary Joint is available in single and multi-channel options. The most cost and size efficient options are the single and dual channel design. If more than two fibers are present in a system, multiplexing solutions are available to combine multiple channels onto one or two fiber to allow the use of a one or two channels.

Optic electrical rotary joint could improve mechanical performance, simplify operation and avoid the damage due to rotating. It is optional together with traditional slip ring to transmit power and high-speed data. Relying on strong R&D ability and experienced engineers, Jinpat developed Optic-electrical slip ring successfully, with reliable performance, excellent quality, and 360° any direction of rotation.

It is suitable for application which needs transmitting large data or signals from static device to rotary position when continuous or intermittent rotating.

Feature

1. No contact and no friction

2. Long life, up to 100 million rounds more(single channel about 200-300 million rounds)

3. Lightweight and high-grade sealing

4. Combined optic together with traditional slip ring to transmit power and high-speed data

Advantage

Compact Size
Low Friction
Long Life & High Reliability
Quick Delivery & Low cost
Easily Customizable
CE and RoHS Compliant

Option

1. Fiber optic transmitting type is optional

2. signal model or multi-model

3. Housing material and driving connector

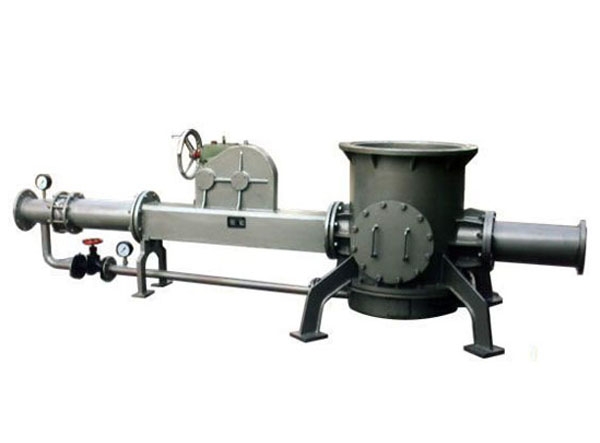

Product application(material transferring system)

20 Channals signal Multi Mode Fiber Optic Rotary Joint High Speed Fibre Optic Electrical Slip Ring

Frequently Asked Questions

1. Who is JARCH?
We are leading manufacturer specialized in many types and applications of Sliprings.

2. What is our ability and production capacity?

Our factory area is more than 50,000 square feet, which includes advanced production line, R&D center, and Testing Laboratory.
We offer a standard model and customized solutions for various application. The factory is equipped with advanced testing facilities.

3. What are JARCH advantages?

We offer flexible solutions for different customers; prompt delivery.

4. Why choose JARCH product?

We are ISO9001 certified company with the stringent quality control system.
- Most of our test equipment is best advanced.
- Long life product span.
- We offer competitive price with reliability.

5. What signals could be transferred? Is Multi-signal capable?

It is very wide, such as USB, RS232, RS485, thermocouple, Ethernet, Servo, H1M1, video etc.

Notes:

1. The operating life of the unit depends upon temperature, rotation speed, and environment. Contact us on wire color codes
We can not display more information on the website for sake of keeping trade secrets. Please send your request for more solutions to us via email.

2. If you want to know more details about JARCH slip rings, please contact us with your special needs!
