Shandong Huaxian Electric Technology Co.,Ltd: Zibo, Shandong, China; Main products: wire mesh cable tray, grid basket cable tray, tray type cable tray, channel type cable tray , perforated cable tray , ladder type cable tray , adjustable cable trays, stainless steel cable tray , metal cable tray , Cable Trunking/cable tray , excellent heat dissipation cable tray, anti-corrosion waterproof cable tray , cable tray with cover, cable tray, strut channel, cable trunking, Seismic Bracing System, Seismic Sway Bracket Strut Channel and Accessories , cable tray accessories

Home > Products > Tray Type > Stainless Steel Metal Cable Trunking Tray Wire Ducts Factory

Stainless Steel Metal Cable Trunking Tray Wire Ducts Factory

FOB Price

Negotiable / Meter

1 Meter(Min. Order)

Port Qingdao ,Shanghai
Payment TermsT/T L/C
Delivery Detail10 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Shandong Huaxian	Place of Origin	China
Material	Steel	Length	Max 6000mm
Type	Ventilated or Perforated Trough	Width	Max 1000mm
Max. Working Load	depends on the size	Side Rail Height	50-200mm

Product Description

1. Product Inforamtion :

Finishes&materials:

HDG, Pre-galvanized, Electronic-galvabized, Powder-coating, stainless steel 304/316, GI

Length: Maximum 3000mm perforated cable tray

Specification :

perforated cable tray dimension&weight(kg/meter)
W*H/Thick		0.8	1	1.2	1.5	2	2.5
50*50	Lid	0.53	0.66	0.79	0.99	1.32	1.65
50*50	Tray	1.17	1.48	1.78	2.23	2.97	3.71
75*50	Lid	0.69	0.87	1.04	1.3	1.73	2.16
75*50	Tray	1.35	1.69	2.03	2.54	3.38	4.23
100*50	Lid	0.86	1.07	1.29	1.61	2.14	2.68
100*50	Tray	1.52	1.9	2.28	2.84	3.79	4.74
150*50	Lid	1.19	1.48	1.78	2.23	2.97	3.71
150*50	Tray	1.85	2.31	2.77	3.46	4.62	5.77
200*50	Lid	1.52	1.9	2.27	2.84	3.79	4.74
200*50	Tray	2.18	2.72	3.26	4.08	5.44	6.8
250*50	Lid	1.85	2.31	2.77	3.46	4.62	5.77
250*50	Tray	2.5	3.13	3.76	4.7	6.26	7.83
300*50	Lid	2.18	2.72	3.26	4.08	5.44	6.8
300*50	Tray	2.84	3.54	4.25	5.32	7.09	8.86
350*50	Lid	2.51	3.13	3.76	4.7	6.26	7.83
350*50	Tray	1.98	3.96	4.75	5.93	7.91	9.89
400*50	Lid		3.54	4.25	5.32	7.09	8.86
400*50	Tray		4.37	5.24	6.55	8.74	10.92
450*50	Lid		3.96	4.75	5.93	7.91	9.89
450*50	Trya		4.78	5.74	7.17	9.56	11.95
500*50	Lid		4.37	5.24	6.55	8.73	10.92
500*50	Tray		5.19	6.23	7.79	10.39	12.98
550*50	Lid		4.78	5.73	7.17	9.56	11.95
550*50	Tray		5.61	6.73	8.41	11.21	14.01
600*50	Lid		5.19	6.23	7.79	10.39	12.98
600*50	Tray		6.02	7.22	9.03	12.03	15.04
650*50	Lid		5.6	6.73	8.41	11.21	14.01
650*50	Tray		6.43	7.71	9.64	12.86	16.07
700*50	Lid		6.02	7.22	9.03	12.03	15.04
700*50	Trya		6.84	8.21	10.26	13.68	17.1
750*50	Lid		6.43	7.71	9.64	12.86	16.07
750*50	Trya		7.25	8.7	10.88	14.51	18.13
800*50	Lid		6.84	8.21	10.26	13.68	17.1
800*50	Tray		7.67	9.2	11.5	15.33	19.17
850*50	Lid		7.25	8.7	10.88	14.51	18.13
850*50	Tray		8.08	9.69	12.12	16.16	20.2
900*50	Lid		7.67	9.2	11.5	15.33	19.16
900*50	Tray		8.5	10.19	12.74	16.98	21.23

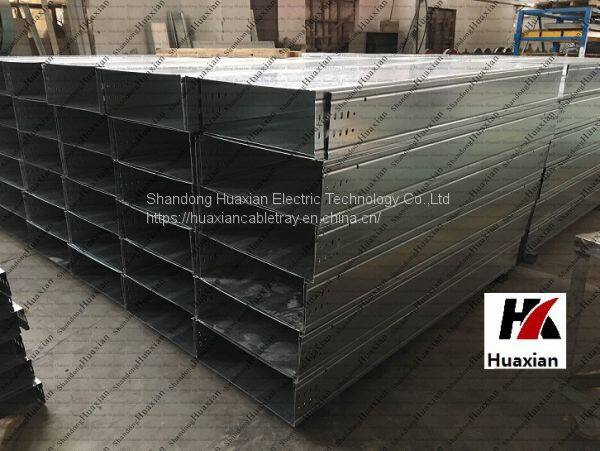

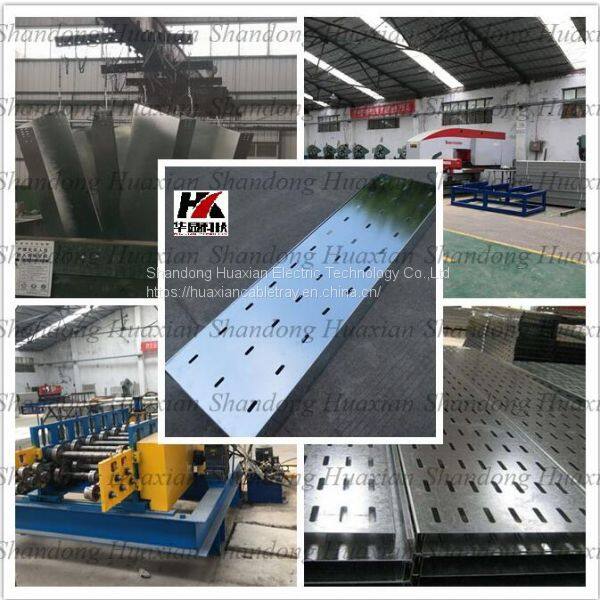

2.Product Pics:

Company Introduction:

Shandong Hua xian Electric Technology Company Limited is specializes in manufacturing energy-saving cable trays, channel type cable trays, ladder type , tray type and wire mesh cable trays, seismic support and hanger system, urban underground commom trench, busways, and full sets of high and low voltage equipment etc., the factory is located at No. 23 Zihe Avenue, Zhangdian ,Zibo, Shandong, China, and it covers an area of more than 4000 square meters and a construction area of 1600 square meters . The company is certified under ISO 9001:2015 Quality Management System, ISO14001 Enviromental Management System and OHSAS 18001:2007 Occupational Health and Safety Management System.

Since the establishment of the company,Hua xian introduces the most advanced production equipment , be strictly with qualified raw material and improve our production technology,all these makes Huaxian played a leading role in the industry.

Welcome friends to visit our factory, and willing to have a great cooperation with you !
