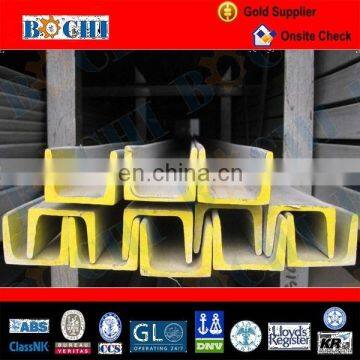

JIS Standard Hot Rolled SS400 U Channel Steel
JIS STANDARD CANNEL STEEL BAR | ||||
H(mm) | B(mm) | T1(mm) | T2(mm) | Kg/m |
75 | 40 | 3.8 | 7.0 | 5.30 |
75 | 40 | 4.0 | 7.0 | 5.60 |
75 | 40 | 4.5 | 7.0 | 5.85 |
75 | 40 | 5.0 | 7.0 | 6.92 |
76 | 38 | 5.1 | 6.8 | 6.70 |
100 | 50 | 3.8 | 6.0 | 7.30 |
100 | 50 | 4.2 | 6.0 | 8.03 |
100 | 50 | 4.5 | 7.5 | 8.97 |
100 | 50 | 5.0 | 7.5 | 9.36 |
102 | 51 | 6.1 | 7.6 | 10.42 |
125 | 65 | 5.2 | 6.8 | 11.66 |
125 | 65 | 5.3 | 6.8 | 12.17 |
125 | 65 | 5.5 | 8.0 | 12.91 |
125 | 65 | 6.0 | 8.0 | 13.40 |
127 | 64 | 6.4 | 9.2 | 14.9 |
150 | 75 | 5.5 | 7.3 | 14.66 |
150 | 75 | 5.7 | 10.0 | 16.71 |
150 | 75 | 6.5 | 10.0 | 18.60 |
150 | 75 | 9.0 | 12.5 | 24.00 |
152 | 76 | 6.4 | 9.0 | 17.90 |
GB STANDARD STEEL CHANNEL BAR | ||||
SIZE | H(mm) | B(mm) | T(mm) | Kg/m |
5 | 50 | 37 | 4.5 | 5.438 |
6.3 | 63 | 40 | 4.8 | 6.634 |
8 | 80 | 43 | 5.0 | 8.045 |
10 | 100 | 48 | 5.3 | 10.007 |
12 | 120 | 53 | 5.5 | 12.059 |
14A | 140 | 58 | 6.0 | 14.535 |
14B | 140 | 60 | 8.0 | 16.733 |
16A | 160 | 63 | 6.5 | 17.240 |
16B | 160 | 65 | 8.5 | 19.752 |
18A | 180 | 68 | 7.0 | 20.174 |
18B | 180 | 70 | 9.0 | 23.000 |
20A | 200 | 73 | 7.0 | 22.637 |
20B | 200 | 75 | 9.0 | 25.777 |
22A | 220 | 77 | 7.0 | 24.999 |
22B | 220 | 79 | 9.0 | 28.453 |
25A | 250 | 78 | 7.0 | 27.410 |
25B | 250 | 80 | 9.0 | 31.335 |
28A | 280 | 82 | 7.5 | 31.427 |
28B | 280 | 84 | 9.5 | 35.823 |
30A | 300 | 85 | 7.5 | 34.463 |
30B | 300 | 87 | 9.5 | 39.173 |
32A | 320 | 88 | 8.0 | 38.083 |
32B | 320 | 90 | 10.0 | 43.107 |
36A | 360 | 96 | 8.0 | 47.814 |
36B | 360 | 98 | 110 | 53.166 |
40A | 400 | 100 | 10.5 | 58.928 |
40B | 400 | 102 | 12.5 | 65.208 |
We BOCHI CORPORATION - STEEL DEPARTMENT are one of the biggest steel trade company in southwest China. We had already established contact with more than 10 steel rolling factory in China for many years. Such as BAOSTEEL, TISCO, ANGANG GROUP, WISCO, etc. We are 500,000 MT member in China Steel Association, so we can show you the most favourable price. All our goods will send to ur hand with inspection certificate (steel products for shipbuilding will with ship classification society certificate). We also provide you SGS or other inspection certificate if you need. Besides the steel products, we can help you arrange the processing of the steel, such as sandblasting(SA2.0, SA2.5,SA3.0) and painting. We solve all your difficulty.

Q235/S235 CARBON STEEL PLATE.
ABS-EH36 STEEL PLATE FOR SHIPBUILDING.
PRESSURE VESSEL STEEL PLATE.
STAINLESS STEEL SHEET.
SS400 ANGLE STEEL WITH SA2.5 &PRIMRT PAINTING.
SQUARE HOLLOW SECTION PIPE.
STAINLESS STEEL COIL.
FLAT-BULB STEEL.
DEFORMED STEEL BARS.
FOR PRODUCTS: HIGH QUALIRY ASSURANCE
- Our rolling factory are famous company/group in China and were proved by government.
- All our steel products will show you original inspection certificate.
- We accept SGS or other third-party organization inspect before delivery.
FOR SHIPPING: MORE THAN 10 COOPERATE SHIP/AIR COMPANY.
- We will arrange best way of the shipping which will save your money most.
- We have goods relationship shipping company to help you get the most cheap freight.
- We provide you insurance free of charge.
FOR AFTER-SELL SERVICE: ONE CLIENT, ONE ENGINEER.
- You will have your personal engineer when the goods on board, will update you the goods location, predict delivery time and so on.
- When you received the goods, our engineer will solve the problem you meet and provide you after-sale service for 200 days.
- We will help you follow up the production schedule and inspection, will photo you each step.
- We can help you arrange the sandblasting and paint if needed.
- Different steel products, we collect for you and delivery together. Price must the 1st hand price.
FACTORY PROVED BY SHIP CLASSIFICATION SOCIETY.
BOCHI ISO CERTIFICATE
