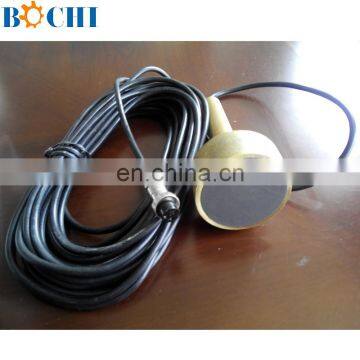

Echo Depth Sounder With GPS For Sale photo-2
Echo Depth Sounder With GPS For Sale photo-3
Echo Depth Sounder With GPS For Sale photo-4
Echo Depth Sounder With GPS For Sale photo-5
US$ 200 - 900 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Part:
Echo Depth Sounder With GPS For Sale
Contact Supplier Request Quote Chat Now
Bochi Corporation
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China

Echo Depth Sounder With GPS For Sale

Product Description

 1. Marine Echo Sounder AIS GPS Chart plotter

2.Display: 5.6/8/12inches Color TFT day-view LCD

3,Power Supply: 10.5 to 35VDC, current drain <300mA at 12V

4,  Interfaces: NMEA 0183 input and output,RS232 and RS422 output

spec:

PLOTTER CHARACTERISTICS

1. Waypoints/icons 15,000 waypoints with name, symbol, 10 proximity waypoint
2. Routes waypoint up to 200 points each, plus MOB and Track Navigation or Goto Track modes
3. Tracks 30,000 point automatic track log; 15 saved track (up to 2000 track points each) let you retrace your path in both directions
4. Alarms XTE, Anchor drag, arrival, speed, voltage, proximity waypoint and time, AIS alarm.
5. Pallete
  1. Normal
  2. Daylight exposed to sunlight
  3. Night in dark environment
  4. NOAA paperchart colors
6. Tides Tide data
7. Projection Mercator projection
8. Position format Lat/Lon
9. Basemap Built-in K-Chart
10. External Map SD Cards slot for C-Map MAX
11. User data storage Internal backup of user settings, or external SD-card
12. Plot Interval 1s to 99h or 0.01 nm to 9.99nm
13. Plotting scales 0.01nm to 1,000nm
14. Nav Data Inputs:
$–DBT, $–DPT, $–GGA, $–GLL,$–GSA, $–GSV,
$–HDG,$–HDM,$–HDT,$–MTW, $–RMB,$–RMC,
$–VTG, $–ZDA, $–VWR,$–VWT,$–MWD, $–VPW
Outputs:
$–AAM, $–APB, $–BOD,$–BWC,$–GGA, $–GLL,
$–RMB,$–RMC,$–VTG, $–XTE, $–ZDA
Outputs for autopilot:
$–AAM, $–APB, $–BOD,$–VTG
15. Perspective View On/off


POWER SUPPLY

 10.5 to 35VDC, current drain <300mA at 12V


PHYSICAL

1. Size 228mm(H)X138mm(W)X79mm(D)
2. Weight 0.9kg
3. Display 5.6-inches ColorTFT day-view LCD 640 X 480 pixels
4. Waterproofing Display unit: IPX5
Antenna unit: IPX6
5. Temperature range Display unit: -15°C to +55°C
Antenna unit: -25°C to +70°C


GPS RECEIVER CHARACTERISTICS

1. Receiver 12 parallel channel GPS receiver continuously Tracks and uses up to 12 satellites to compute and update your position
2. Acquisition times Cold start: 60 seconds average
Warm start: 45 seconds average
Hot start: 15 seconds average
3. Update rate 1/second,continuous
4. Accuracy Position: <15 meters(95%) without S/A
Velocity: 0.1 Meter/sec without S/A
Time: ±100ns synchronized to GPS time
5. Dynamics Altitude: 18,000m Max
Velocity: 500 m/s
Acceleration: 4g Max
6. Datum WGS 84 & Others
7. Interfaces NMEA 0183 input and output,RS232 and RS422 output
8. Antenna KA07


AIS INTERFACE

1. Data input NMEA 0183 , R8232
2. Baud rate 38400 and 4800


EQUIPMENT LIST

  1. Display unit
  2. Antenna unit with 10m cable
  3. Operation manual
  4. Installation materials and standard spare parts

Related Products

Echo Depth Sounder With GPS For Sale

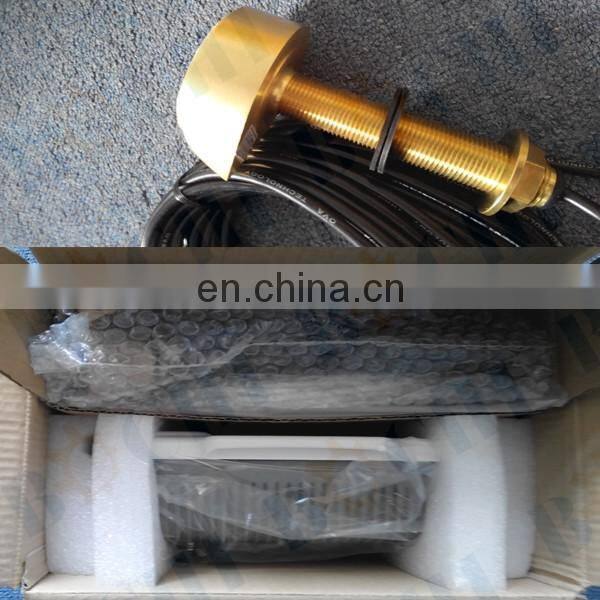

Packaging & Shipping
