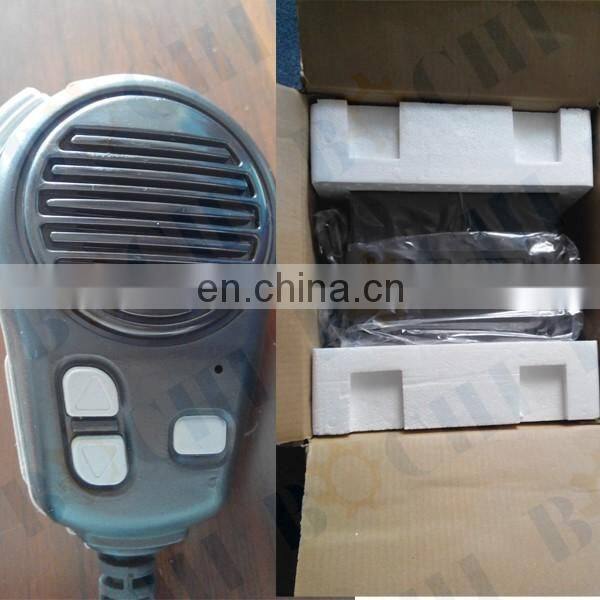

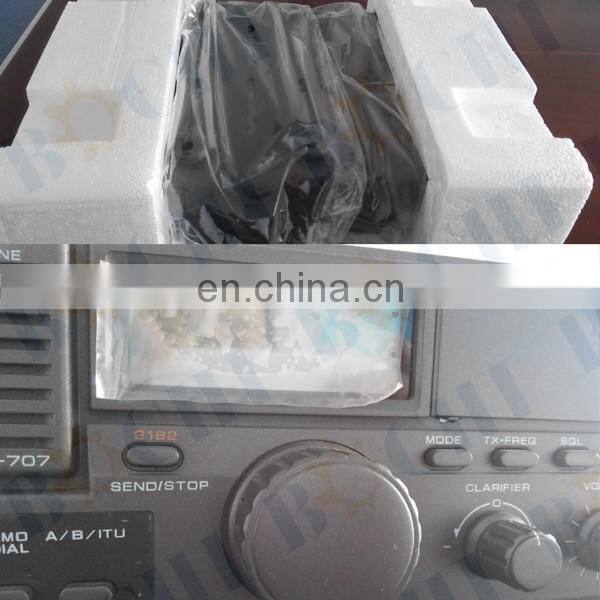

Boat HF SSB Transceiver

General Specification

Frequency Range

Transmitting:2.0000~22.9999MHZ ;

Receiving:1.0000~29.0000 MHZ ;

Frequency Error

±20HZ ;(Preheat for 10 minutes)

Operating Category

J3E,H3E,CW;

Antenna Impedance

50Ω

Power Supply

DC 13.6V ±15% ;

Operating Temperature Range

-15°C~+55°C;

Transmitter Specification

Average Power

75W/25W/12.5W; (Modulation B)

Peak Envelope Power

150W/50W/25W;

Voice Circuit Input Level

≥1.5mV (600Ω;local)

Power Consumption

≤30A;

Sideband Suppression

≥40dB;

Carrier Suppression

≥40dB;

Transmitter Specification

Reference Sensitivity

(12dB signal-to-noise-and-distortion ratio (SINAD), EMF value)

1.0000~1.9999MHZ ;

J3E:≤1.0μV;H3E:≤5.6μV;

2.0000~29.0000MHZ ;

J3E:≤0.5μV;H3E:≤2.8μV

Squelch Opening Sensitivity

(12dB signal-to-noise-and-distortion ratio (SINAD), EMF value)

1.0000~1.9999MHZ ;

J3E:≤0.5μV;H3E:≤2.0μV;

2.0000~29.0000MHZ ;

J3E:≤0.25μV;H3E:≤1.4μV

Rated Audio Distortion

≤7%  (0.5W 8Ω)

Maximum Power Consumption for Receiving

≤800mA;

Blocking

≥90dB

Intermediate Frequency Rejection Ratio

≥90dB

AGC Control Characteristic

≤6dB
