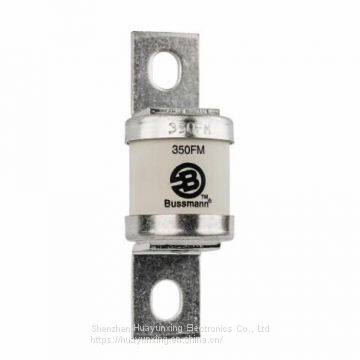

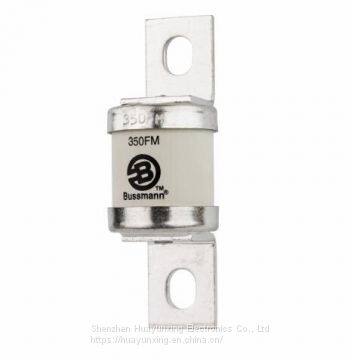

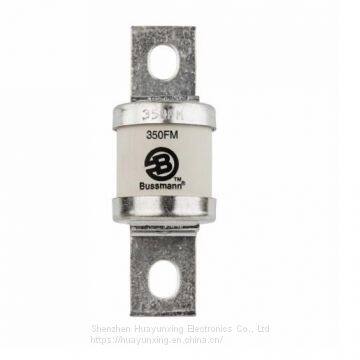

350FM Eaton Bussmann Series High Speed British Standard Fuse, 350A, 200 KAIC, Fuse British Style BS 88 Fuse

Shenzhen Huayunxing Electronics Co., Ltd
350FM Eaton Bussmann Series High Speed British Standard Fuse, 350A, 200 KAIC, Fuse British Style BS 88 Fuse thumbnail-1
350FM Eaton Bussmann Series High Speed British Standard Fuse, 350A, 200 KAIC, Fuse British Style BS 88 Fuse thumbnail-2
350FM Eaton Bussmann Series High Speed British Standard Fuse, 350A, 200 KAIC, Fuse British Style BS 88 Fuse thumbnail-3
350FM Eaton Bussmann Series High Speed British Standard Fuse, 350A, 200 KAIC, Fuse British Style BS 88 Fuse thumbnail-4
350FM Eaton Bussmann Series High Speed British Standard Fuse, 350A, 200 KAIC, Fuse British Style BS 88 Fuse thumbnail-5
350FM Eaton Bussmann Series High Speed British Standard Fuse, 350A, 200 KAIC, Fuse British Style BS 88 Fuse photo-1
350FM Eaton Bussmann Series High Speed British Standard Fuse, 350A, 200 KAIC, Fuse British Style BS 88 Fuse photo-2
350FM Eaton Bussmann Series High Speed British Standard Fuse, 350A, 200 KAIC, Fuse British Style BS 88 Fuse photo-3
350FM Eaton Bussmann Series High Speed British Standard Fuse, 350A, 200 KAIC, Fuse British Style BS 88 Fuse photo-4
350FM Eaton Bussmann Series High Speed British Standard Fuse, 350A, 200 KAIC, Fuse British Style BS 88 Fuse photo-5
Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
EATON BUSSMANN
Place of Origin:
India
Model Number:
350FM
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name EATON BUSSMANN
Place of Origin India
Model Number 350FM
Usage Low Voltage
Safety Standards Other, British Style BS 88
Breaking Capacity High

350FM  Bussmann Fuses


Eaton Bussmann series high speed British standard fuse, 350A, 200 kAIC, None, Fuse, Blade end X blade end, Stud


GENERAL SPECIFICATIONS

PRODUCT NAME            Eaton Bussmann series high speed British standard fuse

CATALOG NUMBER       350FM

UPC                                  051712834063

EAN                                   5027590044783

PRODUCT LENGTH/DEPTH          112 MM

PRODUCT HEIGHT                         41 MM

PRODUCT WIDTH                           39 MM

PRODUCT WEIGHT                         224 G

WARRANTY                                     Not Applicable

COMPLIANCES                              CE Marked               RoHS Compliant

CERTIFICATIONS                            UL Recognized       IEC Rated



PRODUCT SPECIFICATIONS

FUSE INDICATOR                           None

INTERRUPT RATING                       200 kAIC

CONSTRUCTION SIZE                    Other

CLEARING (I2T)                               60000

CONNECTION                                    Blade end X blade end

INSULATED METAL GRIPPING LUGS (IMGL) No

AMPERAGE RATING                          350 A

UTILIZATION CATEGORY                  Other

WATT LOSSES                                    55

MOUNTING                                          Stud

TYPE                                                    Fuse

RATED SWITCHING CAPACITY       200 KA

FUSE SHAPE                                     offset bolted tags

BREAKING CAPACITY                      200 KA

AMPERAGE RATING NUMERIC       350 A

PRE ARC (I2T)                                   15000

APPLICATION                protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters

VOLTAGE RATING NUMERIC         690 V

VOLTAGE TYPE                               AC/DC

PACKAGING TYPE                          Standard

PART NUMBER :                     180FM    200FM    225FM   250FM

                                               280FM   315FM     350FM
