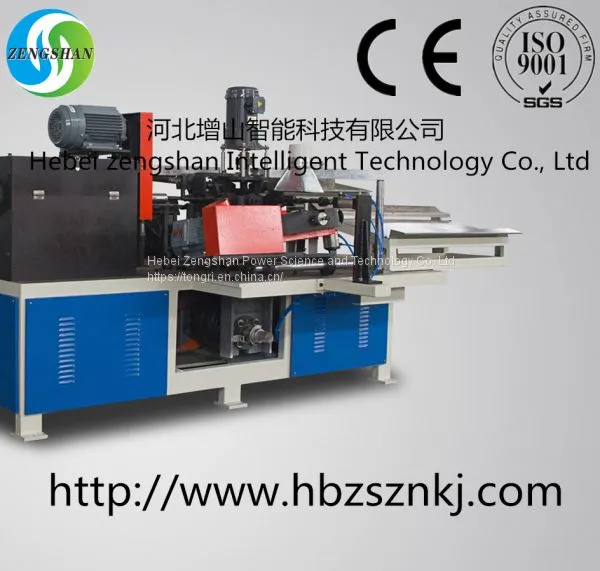

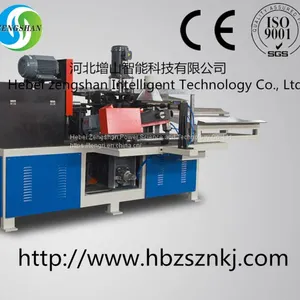

High configuration/High quality paper cone machine

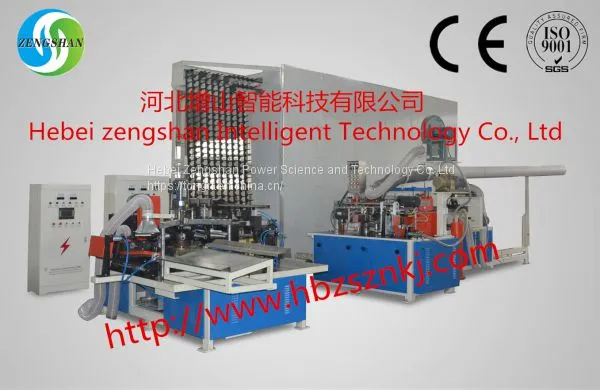

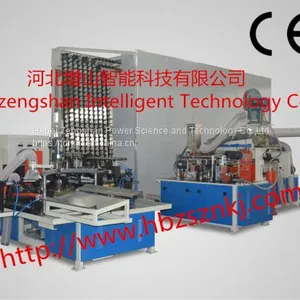

TRZ-2012 automatic conical paper tube production line need no manual operation from raw paper to paper tube product .The whole production parocess is controlled by PLC programming,main engine transmission uses cam timing mechanism .Each position takes double speed variable frequency control technology .Also the none mechanical abrasion photoelectric control,approaching control and pneumatic delay control,which realize the mechanical and electrical integration .Suitable for the production of conical tube with various specification.

  Process

  Rolling---internal and external printing --- edge-grinding---cutting---Reeling---Drying---Dinishing---cutting V-shaped opening---opening processing---pressing---grinding---galling---finishing

  Main Parameter

  Power:49.2KW; Speed:25-50/min; Size:14000mm*6000mm*3800mm; Operator: 1
