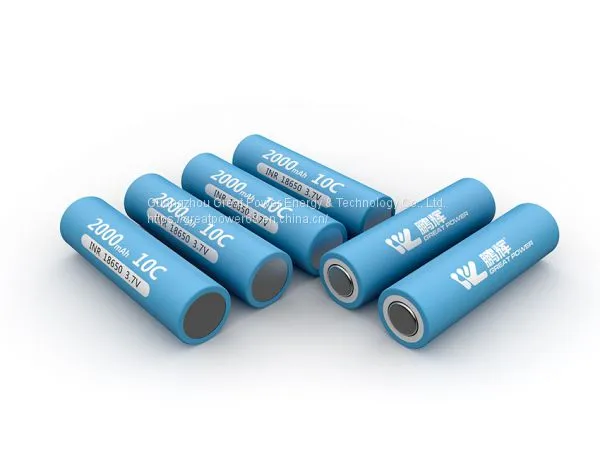

Lightweight Power Battery 18650-2000-10C

Name: Lightweight Power Battery 18650-2000-10C
Brand: Great Power
SKU: 163620535
Availability: InStock

Negotiable MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Great Power

Place of Origin:

China

Guangzhou Great Power Energy & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Hong Kong

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Great Power

Place of Origin China

Lightweight Power Battery 18650-2000-10C

Advantages of 18650-2000-10C

light battery

1、Automatic production line：

Introduction of advanced machine to improve quality control, productivity, to reduce labor cost and shorten lead time

2、High price-performance：

TTI-approved product, the cost of each battery is ¥0.34 lower than the original process

3、High rate：

High power designed for power tools, support 10C discharge

4、High safety performance

The internal resistance didn’t change after passing tumbling test, and the tab didn’t break after being tear down

5、Long cycle life

The capacity retention rate of 5S1P module＞80%@300 cycles

6、Low internal resistence：

The internal resistance＜15mΩ and have good consistency. The average daily voltage drop is

Roller Test (passed)

Standards：the retention rate of capacity＞95%

the retention rate of internal resistence＜125%, and the retention rate of capacity＞85%@300 times after test

Great Power light battery Description

Items		Specification
Material		NCM
Size	Diameter	18.3±0.2 mm
	Height	65±0.3 mm
Weight		44.0±1.0 g
IR（AC 1Hz）		＜15 mΩ
IR（DC (10A-2A)）		＜25.5 mΩ
Nominal Voltage		3.6 V
Standard Charging Mode		CC-CV, 0.5C, 4.2V, 100mA cut-off
Charging Time	Standard Charging（0.5C）	120min
	Rate Charging（3A）	60min
Charging Current	Standard Charging Current	1 A
	Max. Charging Current	3 A
Discharging Current	Cut-off Voltage	2.5 V
	Max. Continuous Discharging Current	20 A（without temperature cut-off） 30 A (80℃ cut-off)
Discharging Capacity	Standard Discharging（0.2C）	≥2000 mAh
	Rate Discharging（10A）	≥1950 mAh

Production Capacity-Cylindrical Battery

Models	Line types	Production capacity /day/line （pcs）	Line num.	Total production capacity
18650	Korean machine line	130k	2	260k
18650	domestic machine line	60k	7	420k
21700	domestic machine line	60k	2	120k
