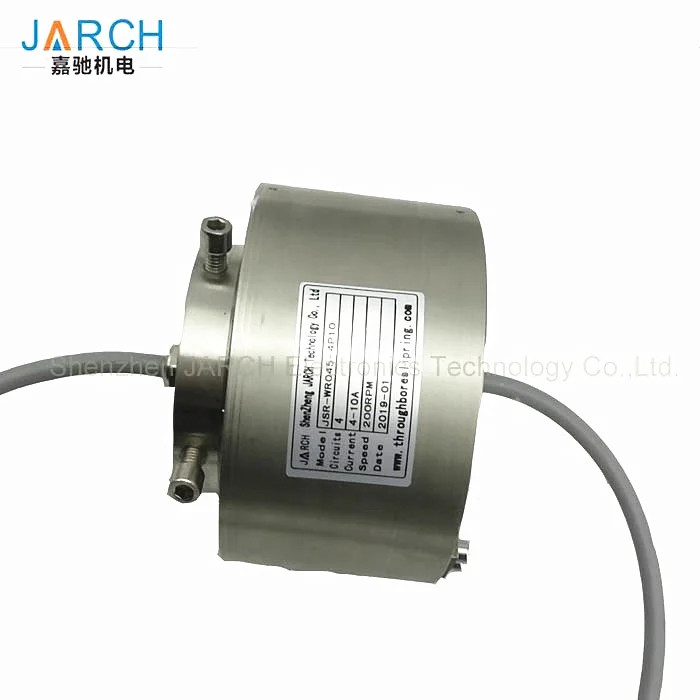

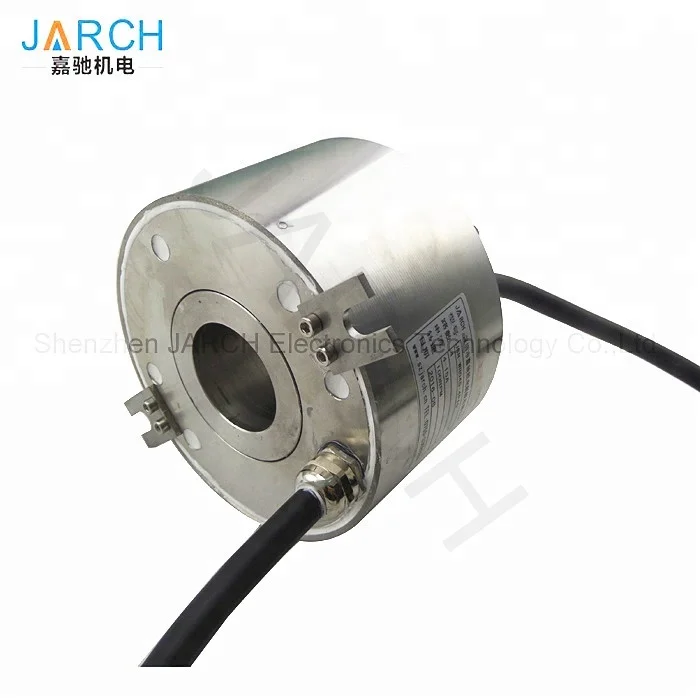

JARCH FPSO Waterproof rotary joint Offshore loading Cable Reel Slip Ring Contact IP68 S316L
Mainly applied production equipments such as beer machine,liquid filling machine
The interior adopts the precious metal brush wire structure, with long service life and no maintenance;
Can work 10 meters sea water underwater or work outdoors,Underwater equipment;
ID/OD 45mm/135mm, shaft connection.
Designed for underwater operations, waterproof work and design.
Industrial grade products, stator flange/shaft, IP65, IP68 protection class.
Gold - gold contact, the use of imported seals and military grade plating treatment.
Multi-point contact contact, outlet using waterproof Glen, cable and so on.
Can be customized according to the requirements.
| Technical Data | |||
| Circuits No | 4 circuits 10A | ID/OD | 45mm/135mm |
| Voltage | 440 VDC/VAC | Operating speed | 0~200RPM |
| Housing material | S316L | Torque | 0.1N.m;+0.03N.m/6 circuits |
| Working life | >80millions revolutions(depends on working speed,environment) | Contact material | Precious metal:gold-gold |
| Electrical Noise | <10mΩ @6VDC,50mA,5RPM | Contact Resistance | <20mΩ(AWG16#,300mm) |
| Dielectric Strength | 800VDC@50Hz,10s | Lead wire Spec | UL Teflon@Awg22(5A),Awg16 |
| Insulation Resistance | 1000MΩ@600VDC,10s | Lead wire length | 300mm |
| Work Temperature | -40℃ to 85℃ | IP grade | IP68 |
| Mechanical vibration | MIL-SID-810E | Work Humidity | 10% to 85% RH |
| *** | *** | Underwater operation depth | 10 meters |
| Inside material | precious metals | Certificate | CE,FCC |
Waterproof Slip rings are designed specifically for underwater operarion equipment, on board equipment and waterproof work.
Advantages of waterproof slip ring:
1. Industrial grade products:IP65.IP68 protection grade;
2. Gold to gold contact: adopting imported seals and military grade plating treatment;
3. Multi-point contacts: outgoing line uses waterproof gran circle and cable.
JARCH FPSO Waterproof rotary joint Offshore loading Cable Reel Slip Ring Contact IP68 S316L
If you have any questions, please contact us without any hesitation.
Shenzhen JARCH Electronics Technology Co.,Ltd.
Main Item list: Spring Driven Reels,Motor Driven Reels,Hand Crank Reels,SS304 /316 Reels,Custom Reels,Slip Rings,Rotary Joints
Customer Service:
ATTN: Ms.Kris Yao E-mail: sales1 jarch_cablereel Phone&WhatsApp: 008613631620907 Skype: JARCH_Sales Wechat: jarchcompany
|
