GOGO ATC 5 Way Pneumatic Hand Operated 1/4 Inch Exhaust Manual Mechanical Control Valve MSV86522-PB With Large Round Button

GOGO ATC 5 way Pneumatic air hand control valve

high quality flow exhaust Manual Mechanical control valve

MSV86522-PB Port 1/4" BSP with Large Round Button

 * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * **

1.Specification

Fluid:  Air

Position and Way Number:   2 position 5 way

Operating pressure:   0~8bar

Working temperature:  0~60°C

Effective section Area:   16mm2

CV values:   0.89

Joint Pipe Bore:   G1/4"

Material:   Aluminum Alloy

Seals:   NBR

Packing:   one pieces valve + a carton

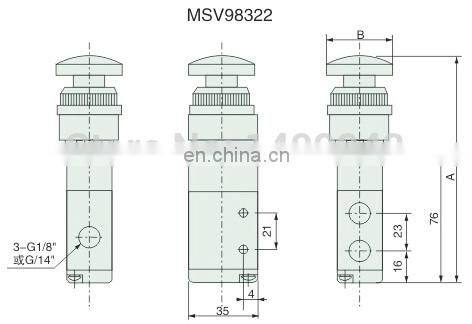

2.Dimensions

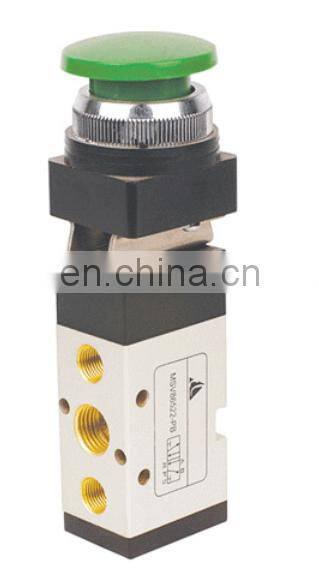

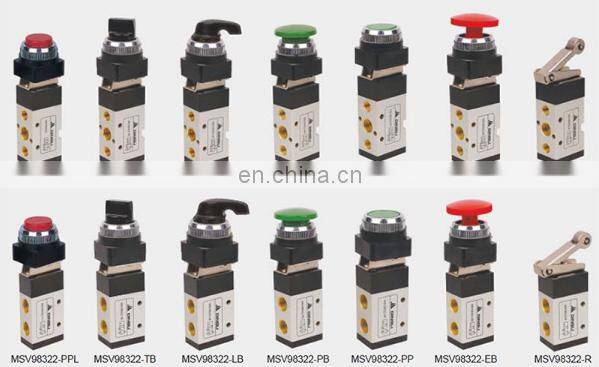

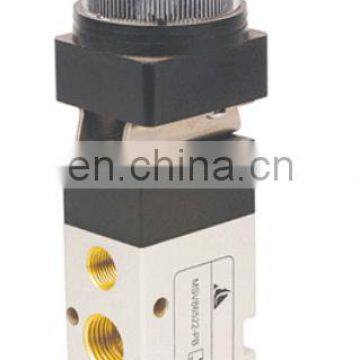

3.PICTURE
